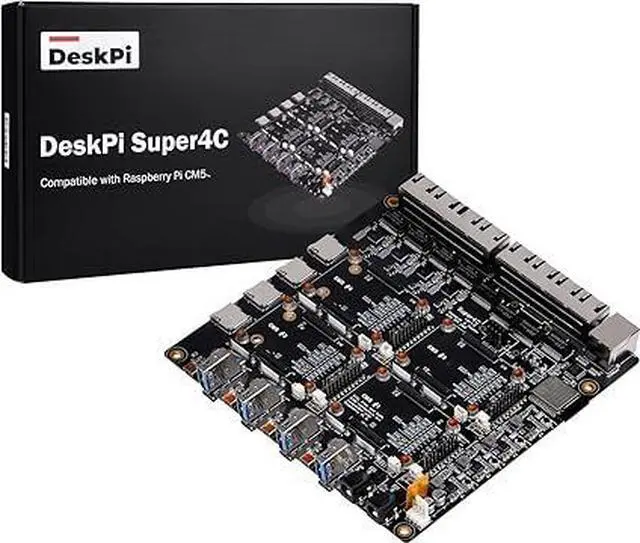

DeskPi Super4C for Raspberry Pi Compute Module 5, Cluster Mini-ITX Board Supporting 4 CM5 modules, 2.5GbE + 1GbE Networking, M.2 NVMe, Including 89W Power Supply
- Model Name DeskPi Super4C
- Connectivity Technology Bluetooth, Ethernet, Wi-Fi
- Included Components DeskPi Super4C
- Operating System Linux, Android
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

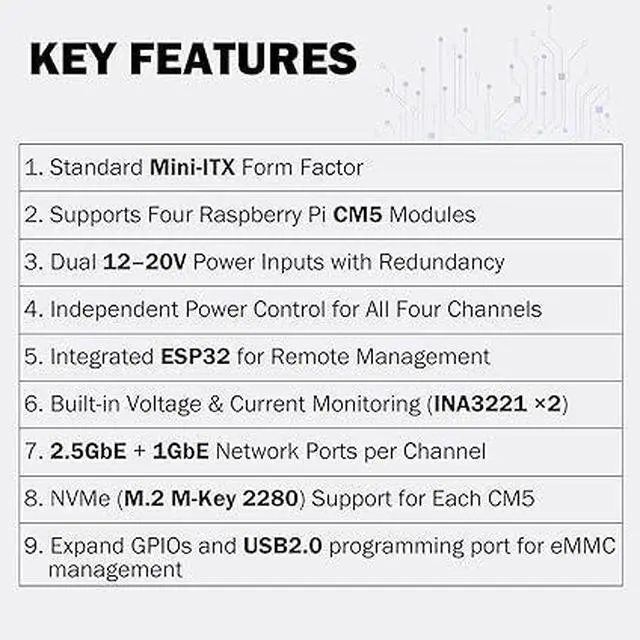

- COMPATIBILITY: Specifically designed for the Raspberry Pi Compute Module 5 (CM5) - supports up to four CM5 modules simultaneously. Important note: Not compatible with CM4

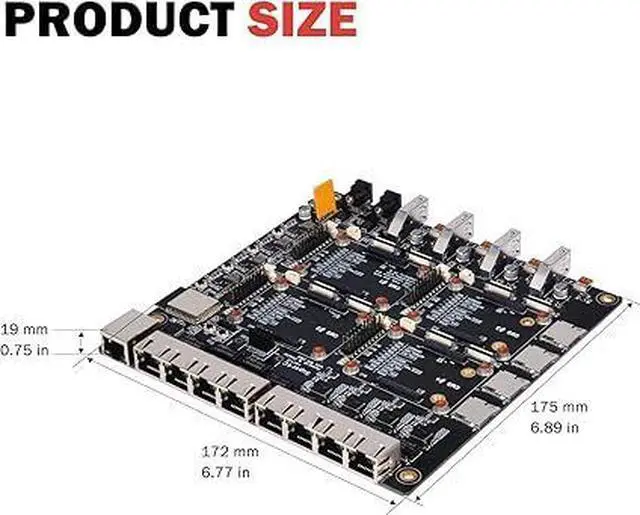

- FORM FACTOR AND MOUNTING: Standard Mini-ITX form factor, ideal for mounting in a 10-inch rack; you can use this rack (ASIN: B0D5QSB8GY)
- POWER SUPPLY AND MANAGEMENT: Dual 12-20V power input with redundancy for increased reliability, independent power control for all four channels, integrated E/S/P/32 chip enables remote management of the entire cluster

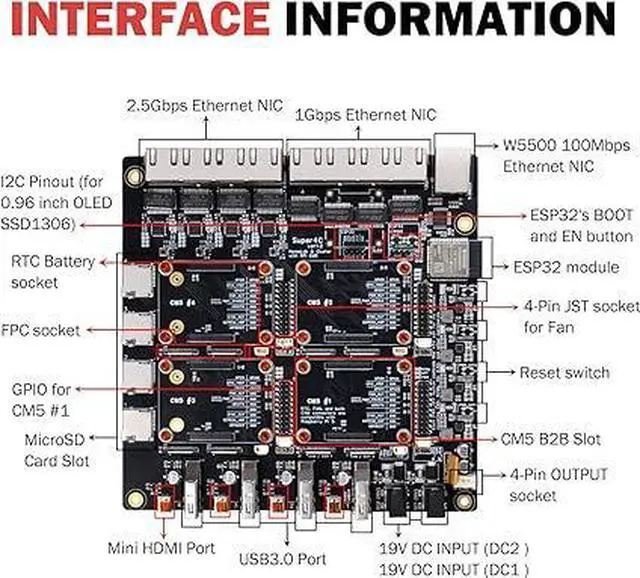

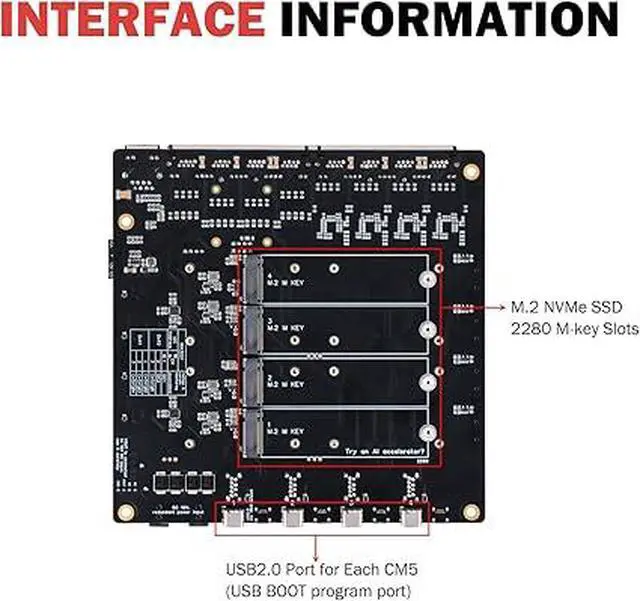

- NETWORKING AND STORAGE: Each channel features 2.5 GbE + 1 GbE network ports, M.2 M-Key 2280 NVMe support for each CM5 module, extended GPIOs and USB 2.0 programming port for eMMC management
- MONITORING AND PACKAGE CONTENTS: Integrated voltage and current monitoring with INA3221 x2 sensors, package includes 1x DeskPi Super4C board and 1x DC 19.0V 4.73A power supply
