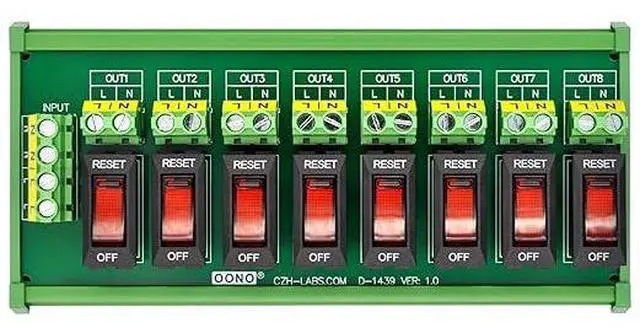

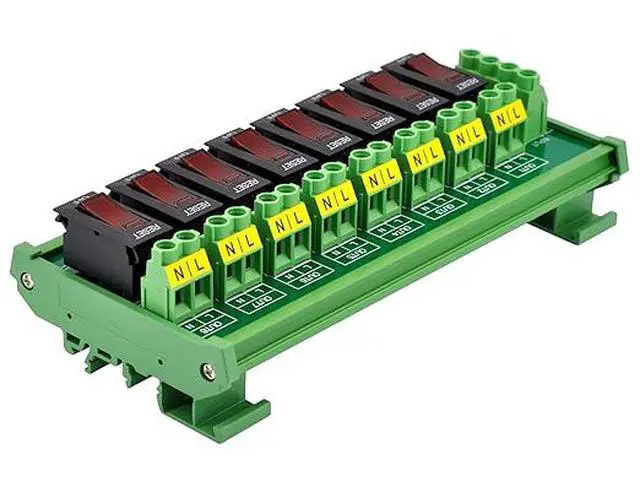

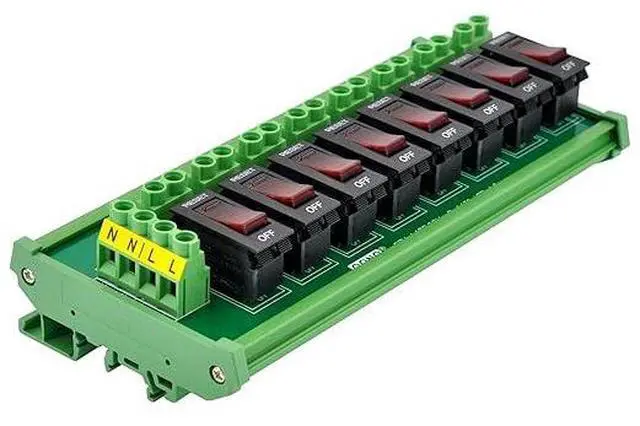

Rocker Switch Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
- Current Rating 10 Amps
- Circuit Breaker Type Standard
- Mounting Type DIN Rail Mount
- Number Of Poles 1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Input voltage AC 125/250V 50/60Hz. Maximum total input current 40A(one position terminal block maximum current 20A).
- Maximum output current 10A(one channel). Maximum total output current 40A.
- 10Amp rocker switch thermal circuit breaker overload protectors, you can manually set the switch output state RESET or OFF. The switch has a built-in red indicator light, when the output normal indicator is on, the output disconnect indicator is off.
- Terminal Blocks: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.

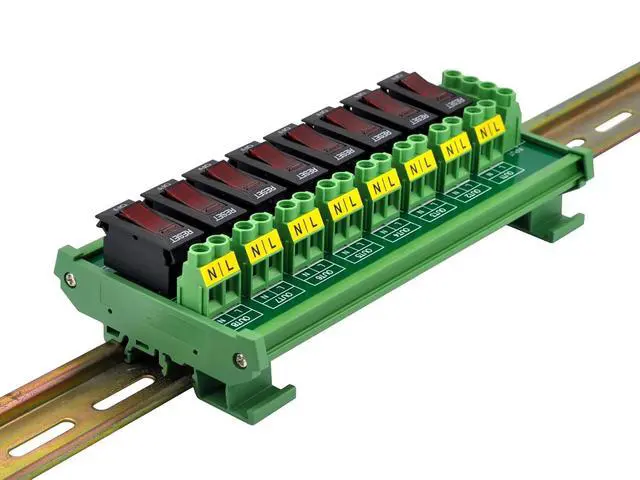

- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
