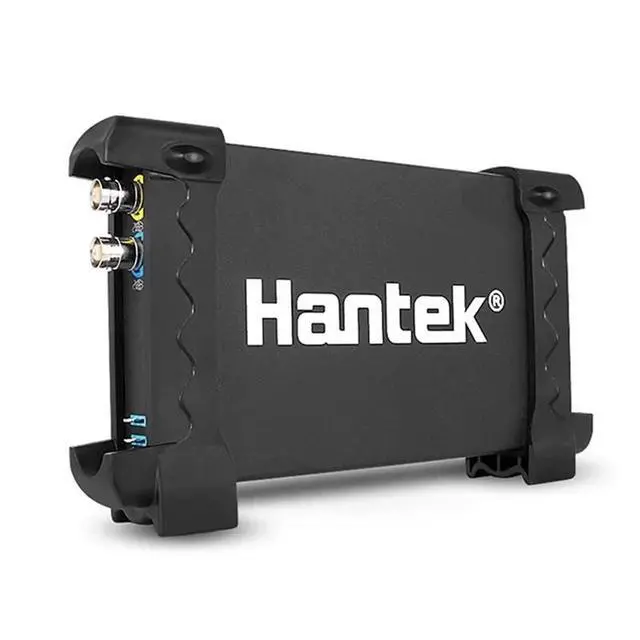

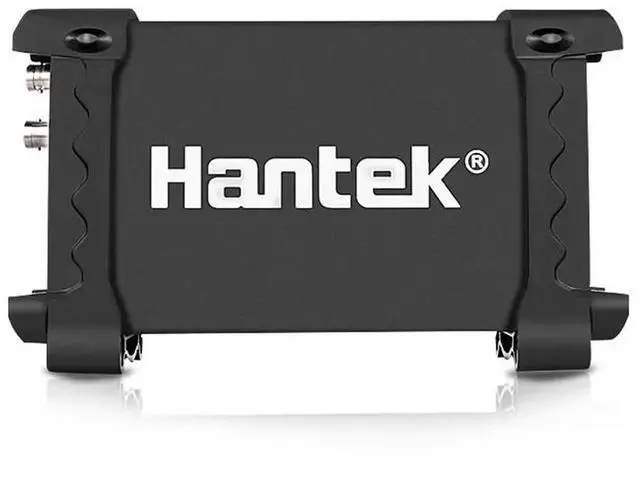

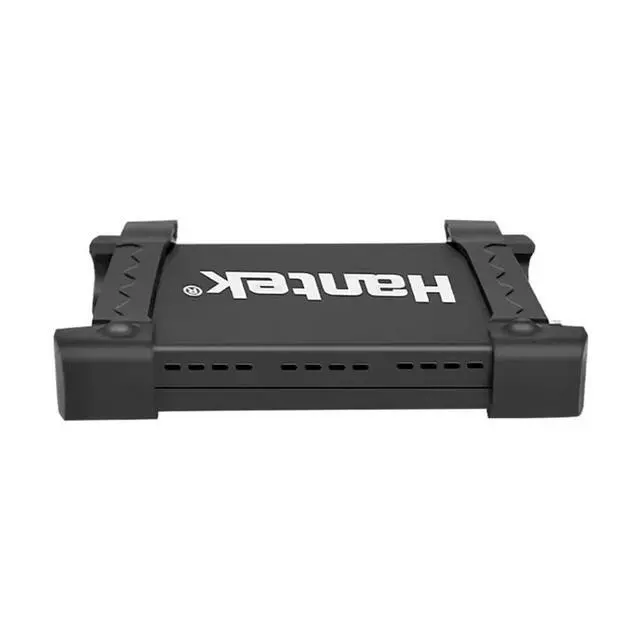

6022BE 2 Channels 20Mhz Handheld Portable Auto Diagnostics Oscilloscope

6022BE

Cost-effectiveness, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI (TM) interface, easyly

inserts into USBXI (TM) housing to make up a combination instrument.

1. Characteristic

Cost-effectiveness; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

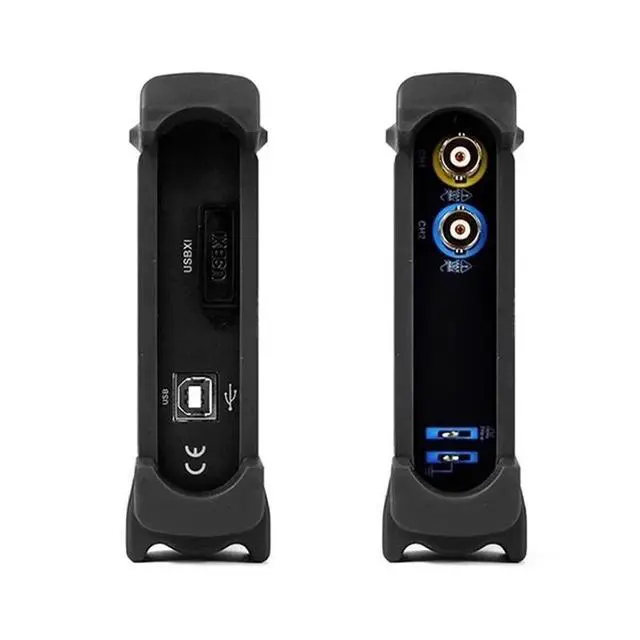

Standard USBXITMinterface, easyly inserts into USBXITMhousing to make up a combination instrument.

USB2.0 interface, no external power source required, easy to use.

Be suitable for notebook computer, product line maintenance,be used easily on business.

Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

High performance, 48MS/s real-time sampling, 20MHz Bandwidth,

Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.

23 measurement functions, PASS/FAIL Check, be suitable for technical application>

Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.

Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

FFT

One computer can connect many DSO, extend channel easily.

Labview\VB\VCSecond Design instance.

Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s;Excellent industrial design-the same anodised aluminium casing as iPad,which is not only beautiful and tasteful but also greatly enhanced the hardnessof aluminum alloy surface, and has good heat resistance and strong wearabili-ty

Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing tomake up a combination instrument.
