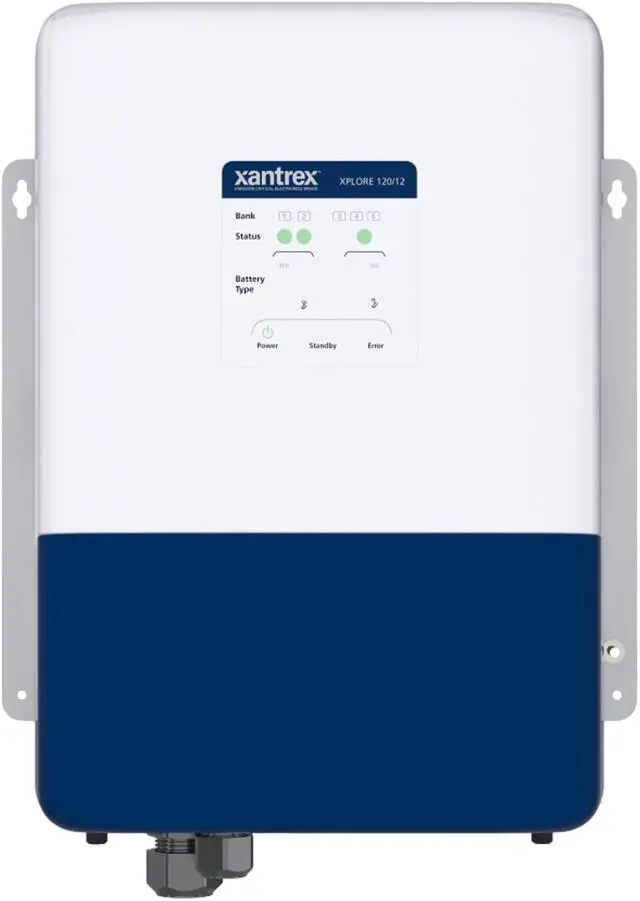

Xantrex Xplore Battery 120 Amp 6 Bank 12v Charger

Xantrex Xplore battery Charger 12v 120
AmpModel: 819-0120-126 Battery Banks and Dual-Chemistry ChargingXantrex Lithium and Custom Battery ChargingNMEA 2000 ConnectivityXantrex App ConnectivityAuto-ranging universal input voltage (80-265 Vac, 45-65
Hz)Power Share: automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
Quiet Mode: when enabled, the internal fan is turned off and the charger operates at a reduced output when quietness is needed.
Storage Mode: automatically refreshes your batteries once every several days of non-use to ensure optimal battery condition.
Dead Battery Charging: ability to charge a battery as low as 0V back to full-chargeReverse battery polarity protectionDrip-proof designOver and under-temperature protectionDC over-voltage protectionBattery overcharging protectionThe XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank. It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module. SpecificationsELECTRICAL SPECIFICATIONS
Max Total BAT1-6 DC Output Current120AMax Total BAT1-2 DC OutputCurrent 5 to 120A (selectable) Max Total BAT3-6 DC OutputCurrent 5 to 40A (selectable) DC Output Voltage12Vdc (nominal) DC Output Connections6AC Input Voltage (Auto Ranging) 120Vac / 230Vac (nominal), 80 to 265 VacPower Factor at Full Charge Rate> 98%Charging Modes3-Stage, 2-Stage, Constant VoltageSupported Battery TypesAGM, FLD, GEL, Xantrex LFP, CustomEqualization (FLD Battery Only) YesGENERAL SPECIFICATIONS
Operating Temperature4 to 140 F (-20 to 60 C), with output derated above 122 F (50° C)Storage Temperature40 to 176 F (-40 to 80 C)Operating Humidity5 to 95% RH, non-condensingAC Input Terminal Connection3-position tool-free spring clamp terminalDC
Output Terminal ConnectionBAT1-2: Two M6 stud terminalsL x W x H Charger 16.26 in (413mm) x 12.34 in (312mm) x 6.5 in (165mm) Ingress Protection (IP)
Rating Charger: IP-32 (vertical) REGULATORY APPROVALS
SafetyETL listed to CSA C 22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement) EMC47 CFR (FCC) Part 15B, Class B and CAN ICES-3 (B) / NMB-3 (B) Ignition ProtectionSAE J1171, ABYC C-1500What's in the
Box: XPLORE Charger unitXantrex
BLE Module (PN: 808-0889)Owner's Guide and extra labels
