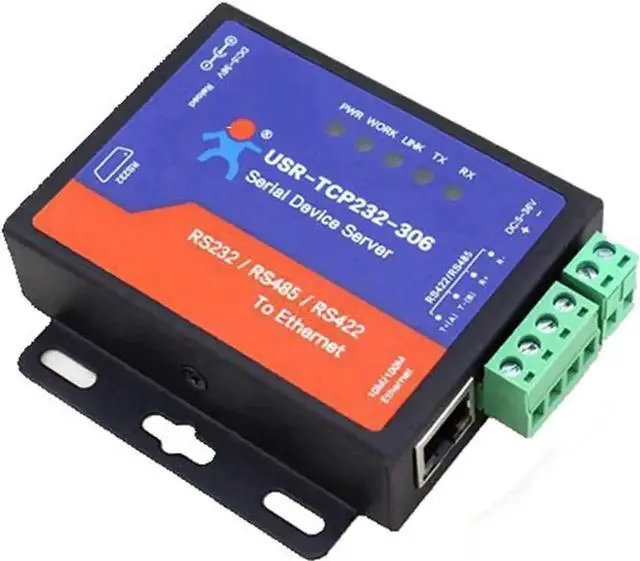

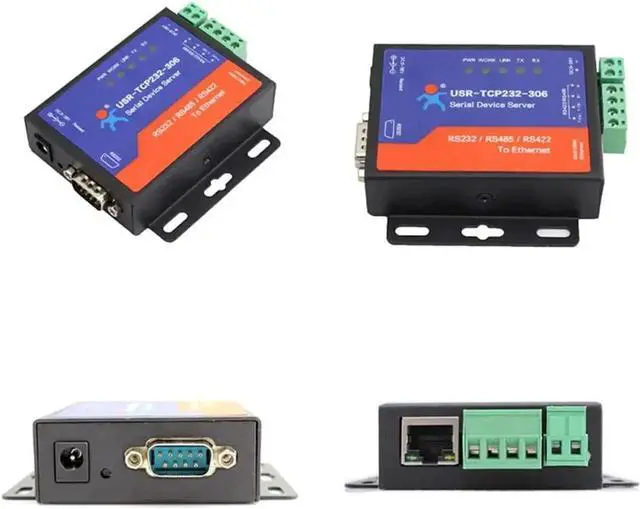

WISDUM USR-TCP232-306 Serial Port RS232/RS485/RS422 to TCP Converter with DHCP and Built-in Webpage with 5V 3A Power Supply (1PCS)

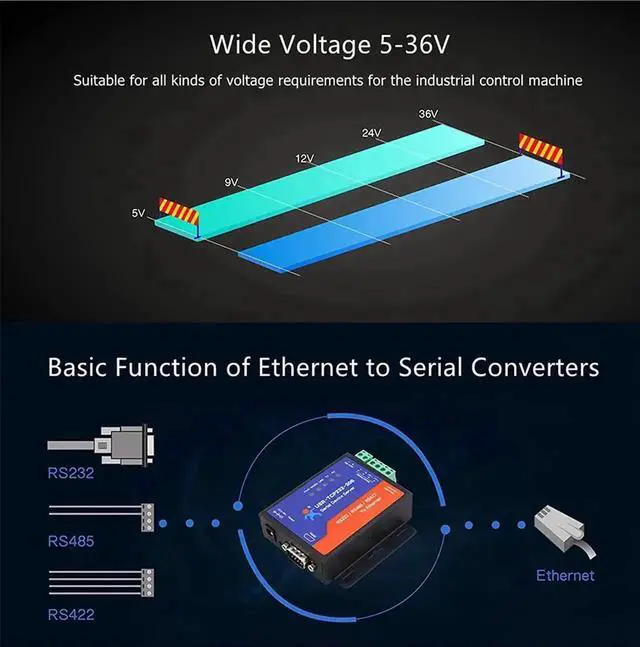

,. Ethernet to serial converters USR-TCP232-306 support both interfaces RS232 and RS485, but can only use one at one time.

-/,

/;

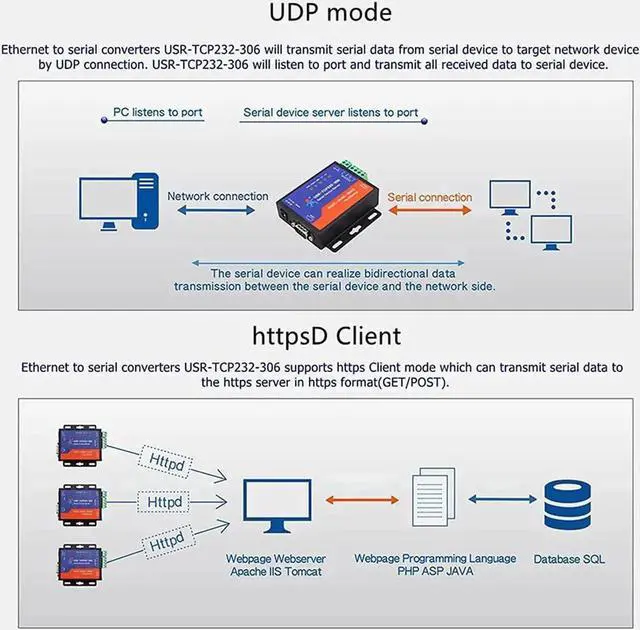

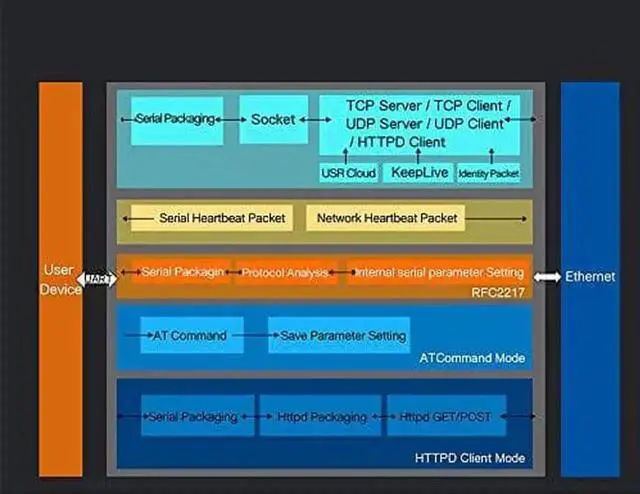

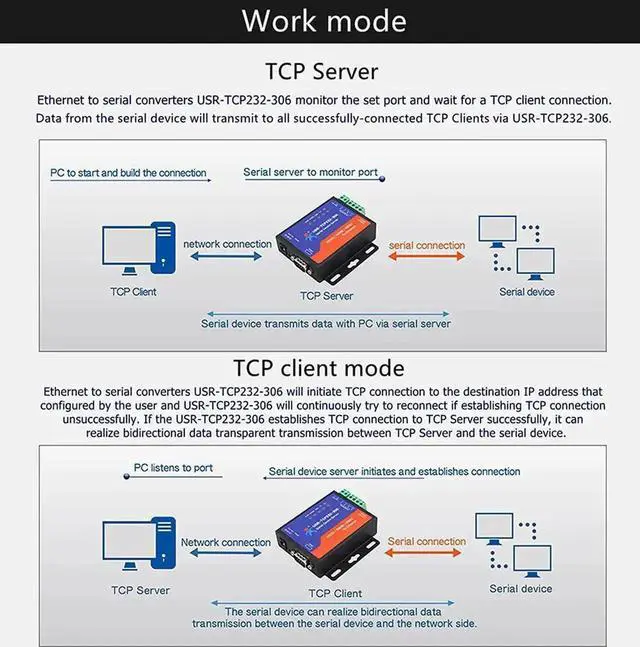

Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client; Baud rate of serial port can be configured from 600 bps to 230.4 Kbps, supports check bit of none, odd, even, mark and space.

, put an end to dead link; User-defined registration package mechanism, check connection status and use as custom packet header; Under TCP Server Mode, the connection number with client can be randomly set from 1 to 16, default number is 4.

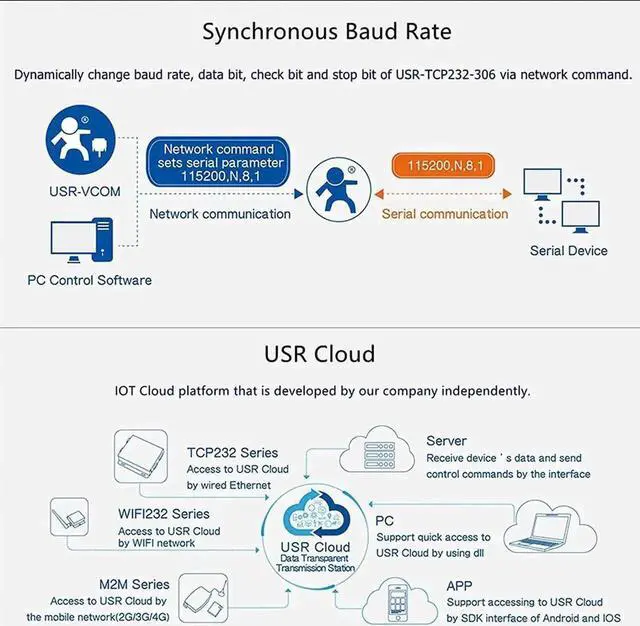

. IP has been connected can be shown according to connectiong with calculating send / recceive dat. When connection number reaches a maximun, the new connection is kicked off the old one can be configured by user; Parameters can be configured by built-in webpage, AT command, serial port procotol and network procotol. Setting procotol is avaliable to integrate into user's software.

, user-defined the disconnected time. Device restart if no data transmission or timeout. User-defined the restart time. If data buffer needs to clear configuration before TCP connection establishment; Supports DHCP, automatically obtain an IP address and query IP address via serial setting protocol. The global unique MAC address, user-defined MAC address.
