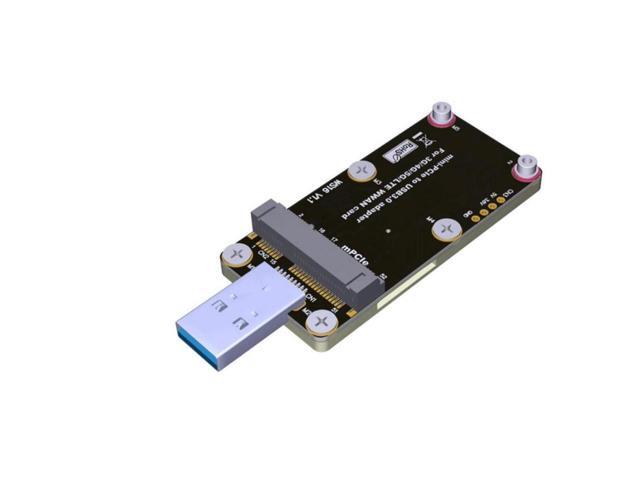

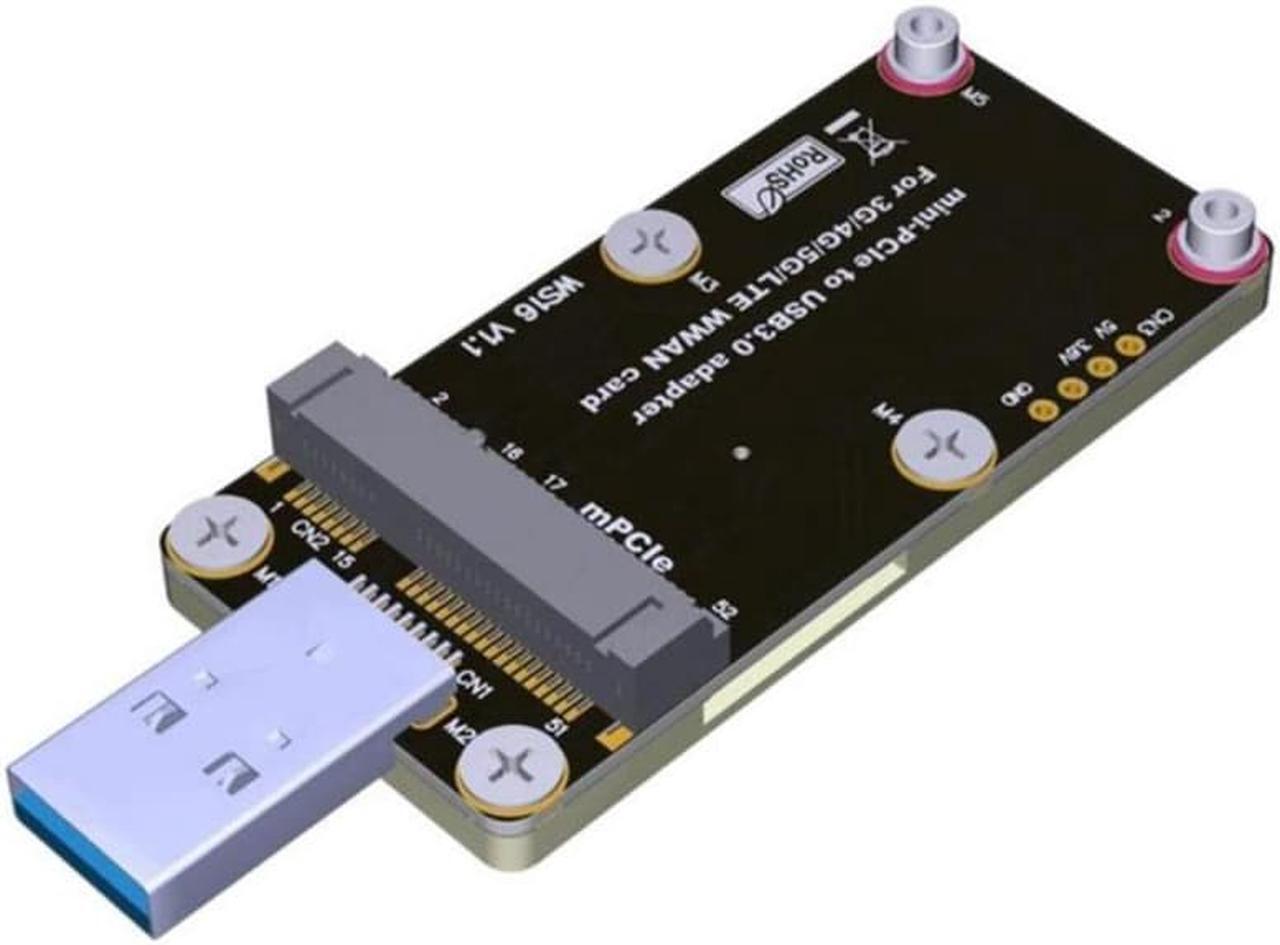

HOT-Mini-PCIe To USB 3.0 Adapter Card with Dual SIM Card Slots Support 4G/5G/LTE Module for WWAN Module Adapter Test

Origin: CN (Origin)
Type: Cable Adapter
Certification: None
Model Number: WS16
Interface: miniPCIe USB 3.0
Application: WWAN card USB reader

HOT-Mini-PCIe To USB 3.0 Adapter Card with Dual SIM Card Slots Support 4G/5G/LTE Module for WWAN Module Adapter Test

1.
Product use: Supports USB 3.0 interface of mPCIe Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, Mini Card to desktop PC.

2. Support dual
SIM card: mini-SIM push push connector and nano-SIM non-push connector.

3.
Material advantage: high-quality gold-plated connectors are used, and high frequency supports USB 3.0 stable transmission.

4.
Design advantages: PCB board miniaturization design, can reduce mechanism interference, It is easy to install the product without the card hardware.

5. The adapter board does not require a driver (the software driver of the M2 card must be installed) dual SIM card slot design, dual LED indicator design, CAN NOT support SIM hot plugging.
Specifactions:
Product name: mini-PCIe to USB 3.0 adapter card
Product model: WS16
Working voltage: 3.0V - 4.2V (Default setting 3.5V ); 3A/4A (normal/peak current)
Precautions:

1. Be sure to recognize the direction when inserting the card, do not insert it backwards or insert it in a wrong position to prevent damage to the device. When inserting the cable, first hold the two sides of the adapter board and then insert the mPCIe module at an angle of 30 degrees to avoid using excessive force to guide the socket. The foot is broken.

2. Various motherboards and equipment signal drive capability pin definitions and other conditions are different. The test results of our store are not guaranteed to be consistent with your test results. As long as the adapter board is connected, the signal will be lost and there will be compatibility issues.

3. The purchase is restricted to the product engineer's designation. It is for product testing only. For other general purposes, please do not purchase.

4. This product only has adapter cards, does not include Internet access module or SIM card.
Colour: Black
Material: PCB
Package Contents: 1 x mini-PCIe to USB 3.0 adapter
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
