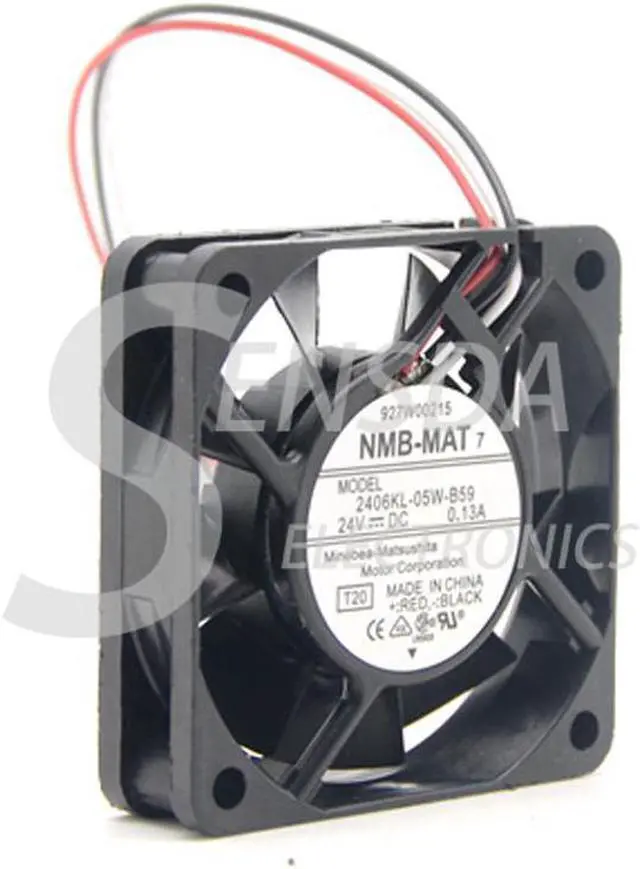

For NMB 2406KL-05W-B59 dc 24V 0.13A 6cm 6015 60*60*15 MM 3 wires converter cooling fan

Certification: CE
Origin: CN (Origin)
Application: Computer Case
Bearing: Two Ball Bearing
Lines: 3 Lines
Type: Fan
Power Interface: 3pin
Model Number: 2406KL-05W-B59

[Dimension]: 60x60x15mm
[Rated]: DC24V
[Range]: DC 12.0 - 26.5V
[Power]: 0.13A (nominal current)
[Speed]: 4600 r. p. m
[Temperature range]: -10... 70 °C
[Life expectancy]: 25 ° c L10 life expectancy of 50, 000 hours
[Bearing]: maintenance-double ball bearing
[Direction of rotation]: air discharged from the bracket, facing the rotor counterclockwise
[Connection]: + Red-Black: yellow (white) 3-wire terminals
[Protection]: overload protection, fault-protected and locked-rotor locks flow protection
[Maximum air volume]: 18.3 CFM
[Minimum air pressure]: 0. 51.2 Pa
[Noise indicators]: 34.0 dB (a)
[Material material]: glass-fibre reinforced plastic, PBT housings, PA blade, environmental certification
Power: 3.12
W
Speed: 4600RPM
Airflow: 18.3CFM 0.52 cubic meters / minute
Pressure: 51.2 pa
Noise: 34DBA
Temperature:
-20 ~ 75
Life:
50, 000 hours
NW: 45G
