2PCS DB9 Breakout Connector, Solderless Metal Shell RS232 D-SUB Serial to 9-Pin Port Terminal Female Adapter Connector Breakout Board with Case
Limited time offer, ends 07/29 By XYFEE

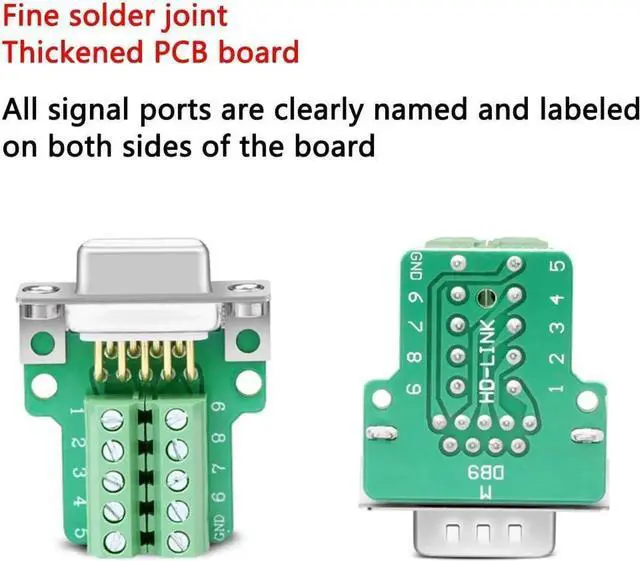

- DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. Zinc Alloy Metal Shell: Anti-pressure; Anti-intreference; Anti-high temperature.

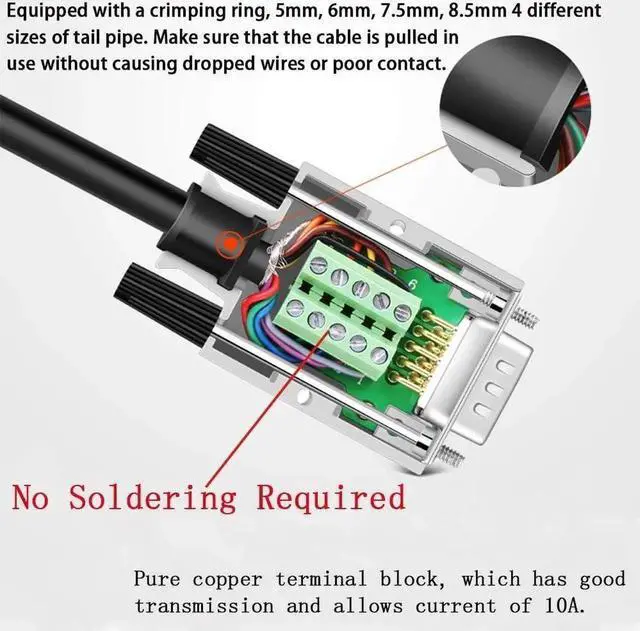

- No Soldering Required: Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.

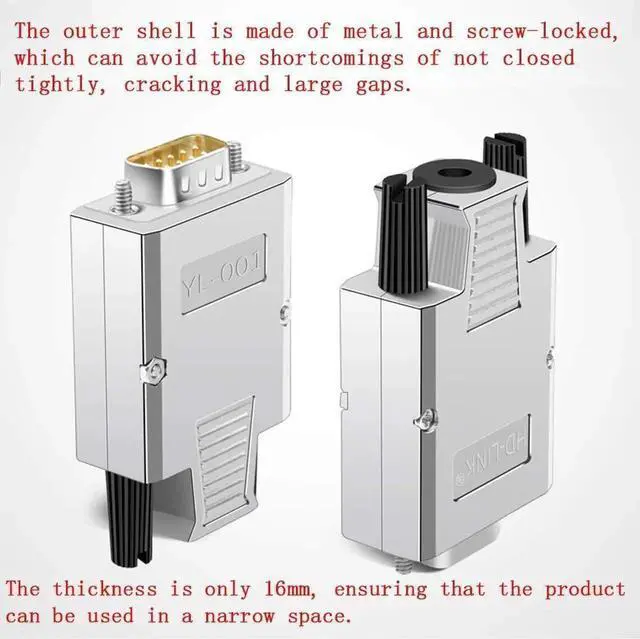

- SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.
- RELIABLE: Each product is equipped with 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.

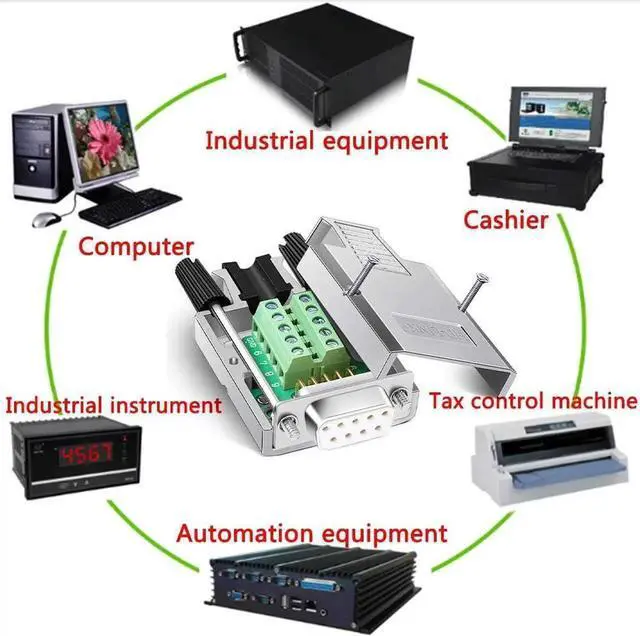

- WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life.
Zinc Alloy Metal Shell: Anti-pressure; Anti-intreference; Anti-high temperature.
No Soldering Required: Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.
RELIABLE: Each product is equipped with 5mm, 6mm, 7.5 mm, 8.5 mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.
WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
These DB9 Female Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical
Name: Thin DB9 solderless module
Plug type: female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: Zinc alloy metal shell
Shell type: Screw lock
Pin Pitch: 3.81 mm/ 0.15 in
Cable Specification: 28-16 AWG/ 0.15 - 1.5 mm2
Torque: 0.2N m ( 1.7L b-In. )
Opening size (cable port): 10.5 mm/ 0.41
Thickness: 16mm/ 0.63
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.

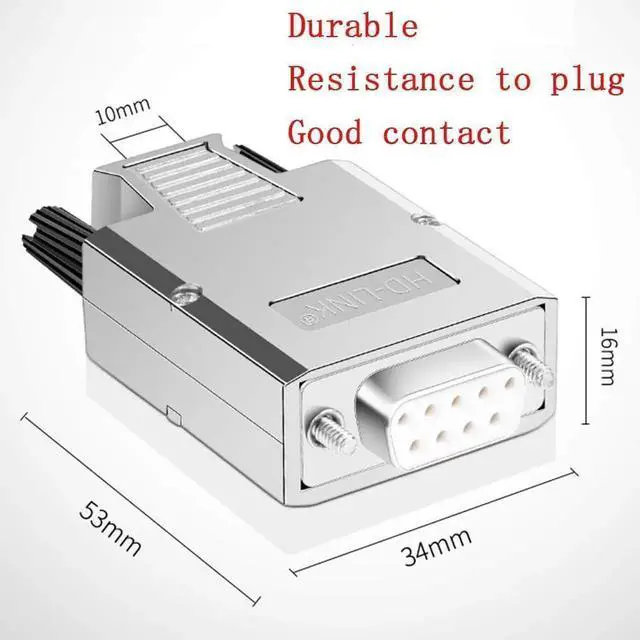

Size: 49 mm×35 mm×16 mm/ 1.93 × 1.38 × 0.63

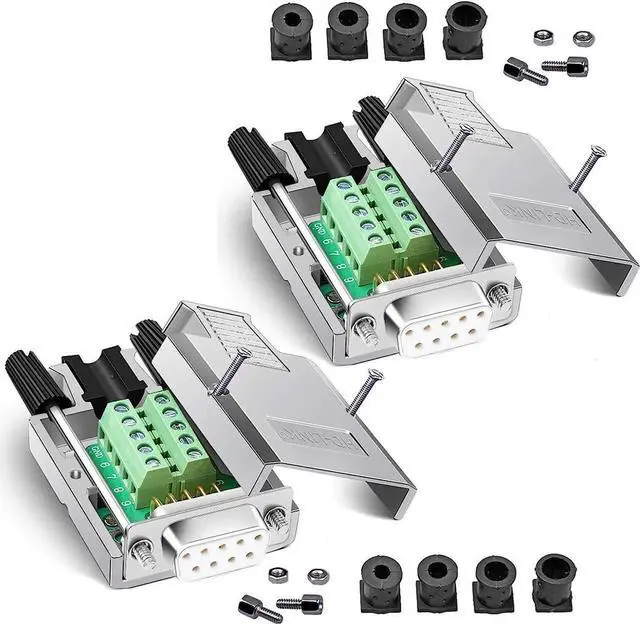

Package includes:
2 x DB9 Male Solderless Connectors
4x Lock screws
4x Long bolts
2x 5mm tail pipe
2x 6mm tail pipe
2x 7.5 mm tail pipe
2x 8.5 mm tail pipe
DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life.
Zinc Alloy Metal Shell: Anti-pressure; Anti-intreference; Anti-high temperature.
No Soldering Required: Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.
RELIABLE: Each product is equipped with 5mm, 6mm, 7.5 mm, 8.5 mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.
WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
These DB9 Female Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical
Specifications
:Name: Thin DB9 solderless module
Plug type: female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: Zinc alloy metal shell
Shell type: Screw lock
Pin Pitch: 3.81 mm/ 0.15 in
Cable Specification: 28-16 AWG/ 0.15 - 1.5 mm2
Torque: 0.2N m ( 1.7L b-In. )
Opening size (cable port): 10.5 mm/ 0.41
Thickness: 16mm/ 0.63
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 49 mm×35 mm×16 mm/ 1.93 × 1.38 × 0.63
Package includes:
2 x DB9 Male Solderless Connectors
4x Lock screws
4x Long bolts
2x 5mm tail pipe
2x 6mm tail pipe
2x 7.5 mm tail pipe
2x 8.5 mm tail pipe
