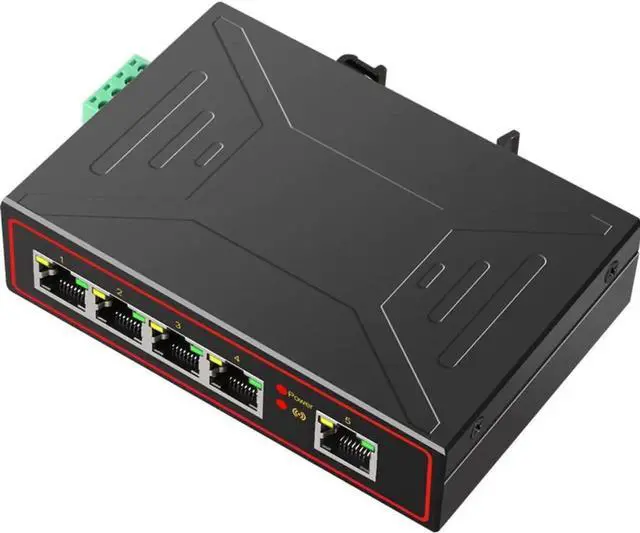

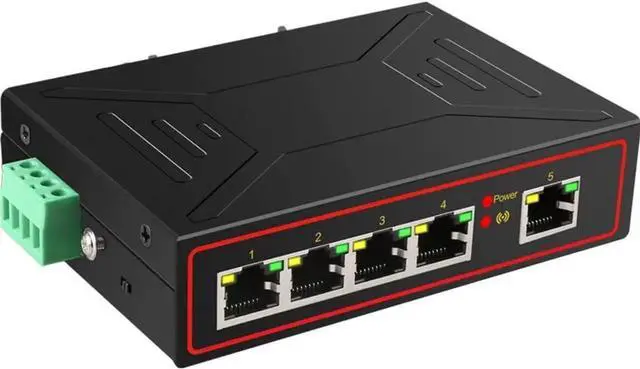

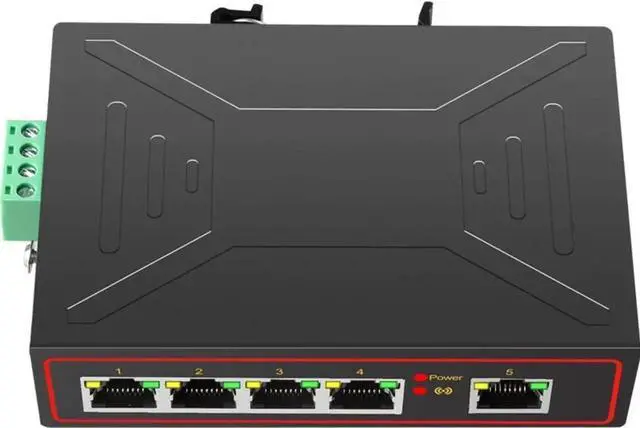

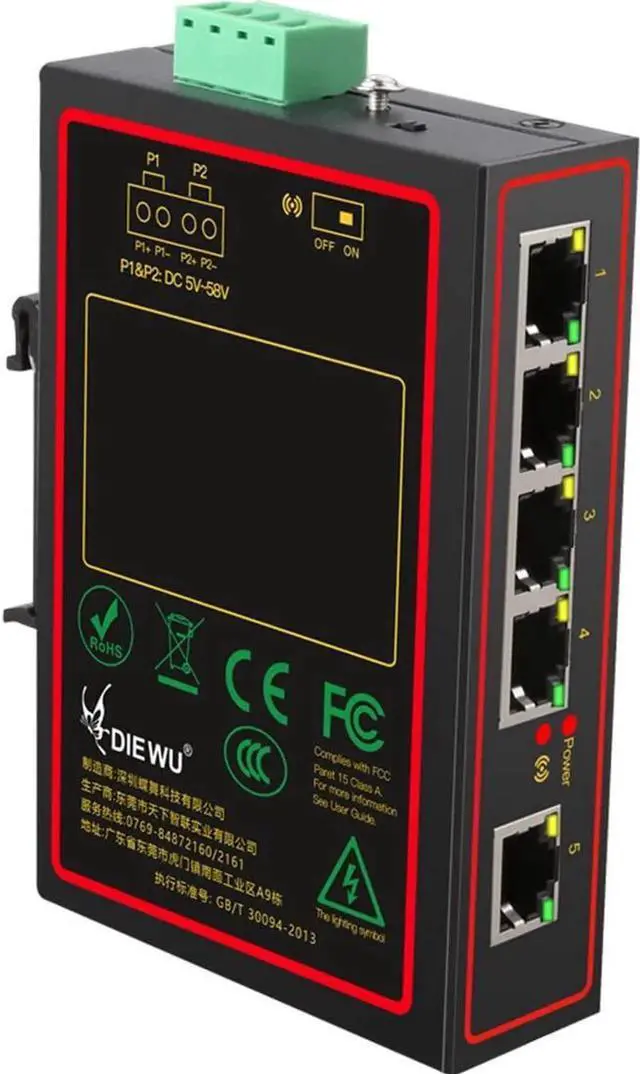

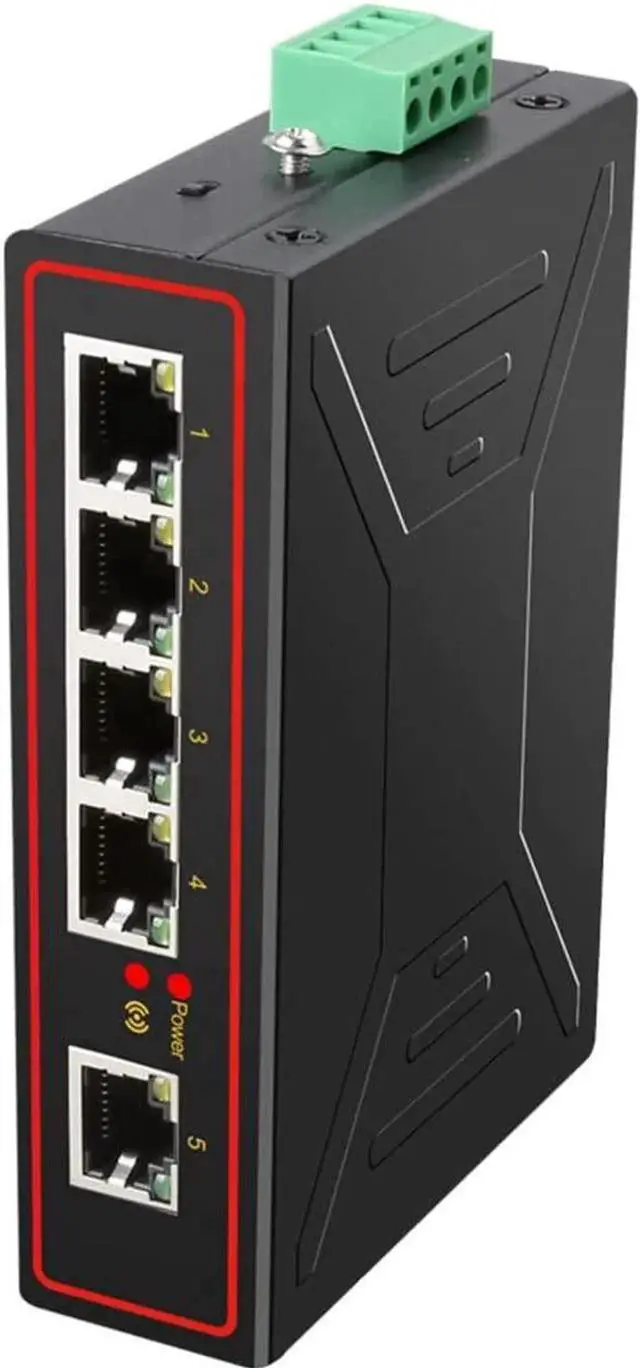

diewu DIN-Rail Industrial Grade Ethernet Switch 5 Port 10/100M Build in Signal Enhance VLAN RJ45 Network Switch Controller
Limited time offer, ends 07/29 By XYFEE
- 5 port Embedded 10/100 PHY Switch Controller, Support 5 100BaseTX or 4 100Base TX + 1 FX, Support Auto MDI-MDIX function.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
5 port Embedded 10/100 PHY Switch Controller, Support 5 100BaseTX or 4 100Base TX + 1 FX, Support Auto MDI-MDIX function.
Support Auto Factory Test (AFT), Built in Vcore Regulator, Two Priority queues per port, Support 802.1 p & DiffServ based QoS.
Support max forwarding packet length 1552/1536 bytes option, Support port mirror function, Support 1k MAC address.
Support broadcast storm protection, Support port trunking (LACP), Support 16 VLAN (IEEE Std 802.1 q), Built-in 50 ohm resistors for simplifying BOM.
Port number: 5 port 10/100M Auto MDI-MDIX RJ45;
Network media: 10Base-T, cat3 or above UTP, 100Base-Tx, cat5 UTP;
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps.
Support Auto Factory Test (AFT), Built in Vcore Regulator, Two Priority queues per port, Support 802.1 p & DiffServ based QoS.
Support max forwarding packet length 1552/1536 bytes option, Support port mirror function, Support 1k MAC address.
Support broadcast storm protection, Support port trunking (LACP), Support 16 VLAN (IEEE Std 802.1 q), Built-in 50 ohm resistors for simplifying BOM.
Port number: 5 port 10/100M Auto MDI-MDIX RJ45;
Network media: 10Base-T, cat3 or above UTP, 100Base-Tx, cat5 UTP;
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps.
