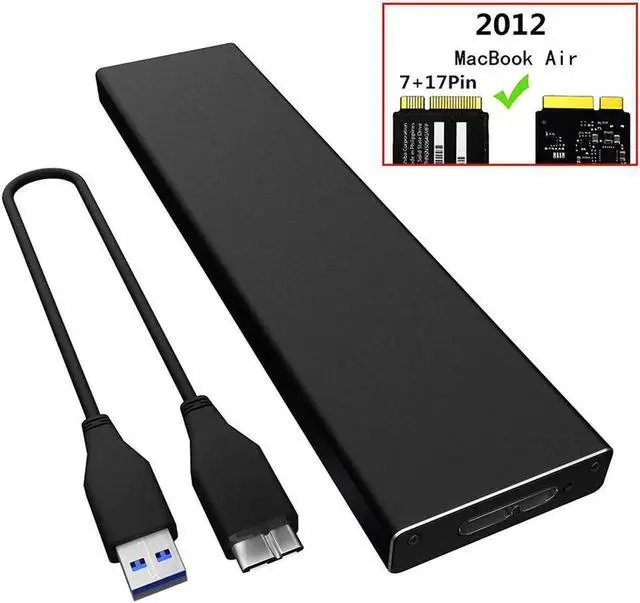

External Hard Drive Case For 2012 MacBook Air SSD USB 3.0 to A1465 A1466 SSD Adapter Enclosure For MD223 MD224 MD231 M232

Supporting Hard Drive Capacity:512G

Internal Interface:Other

Size:1.8"

Case Material:Aluminum

Model Number:ZD0268

Package:Yes

External Interface:USB

External Hard Drive Case For 2012 MacBook Air SSD USB 3.0 to A1465 A1466 SSD Adapter Enclosure For MD223 MD224 MD231 M232

Feature:

This PCIe SSD enclosure is a DIY kit for assembling a external SSD with A1465/A1466 SSD 2012 (7+17 pin)

USB 3.0 high speed transfer or retrieve data from MacBook Air SSD 2012 (7+17 pin)

The enclosure was made of aluminum material, so the cooling function is much better, can realize the MacBook Air SSD's potential of its full performance

DO NOT support 2012 MacBook Pro SSD and 2010 2011 MacBook Air SSD (6+16 pin) and 2013 2014 2015 2016 MacBook Air Pro Retina SSD (12+16 pin)

If your SSD is MAC OS formatted, it isn't compatible with Windows OS, so a SSD without partition. It can't be shown in "My Computer". Please delete the old partition and create a partition in "Disk Manager" in Windows

Package:

1 x

SSD mobile hard disk box

1 x USB 3.0 cable

1 x Protecting bag

MacBook Air SSD interface standard:

1. 2010 and 2011 MacBook Air SSD is 6+12 pin, only one side have contact, size is 109 mm*24 mm.

2. 2012 MacBook Air SSD is 7+17 pin, size is 109 mm*24 mm.

3. 2013 and 2014 MacBook Air SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin, size is 89 mm*24 mm.

Notice:

1. Please identify interface definition of your SSD.

2. Please note that the query rated current of SSD,compute maximum power supply current is 1A of USB 3.0 interface,if the USB port can't provide enough current to the ssd,the computer can't identify or work can't well because the power supply can't meet requirements.

3. Don't to use USB extension and HUB,because it will lead to insufficient power supply.

4. Data lines connected to the computer's USB port after the home for desktop.

5. The SSD work will release heat,the shell fells very hot,this is normal.

6. Mac OS and some digital camera system use disk format can't compatible with Microsoft system,SSD if there is no partition,open the "my computer" can't see the ssd, please use the Disk Manager in Windows to delete the partitions or to create a partition on the SSD.

7. This product performance is being improved unceasingly, like has the change, not separate informs even slightly.Pictures for reference only, subject to our available products.
