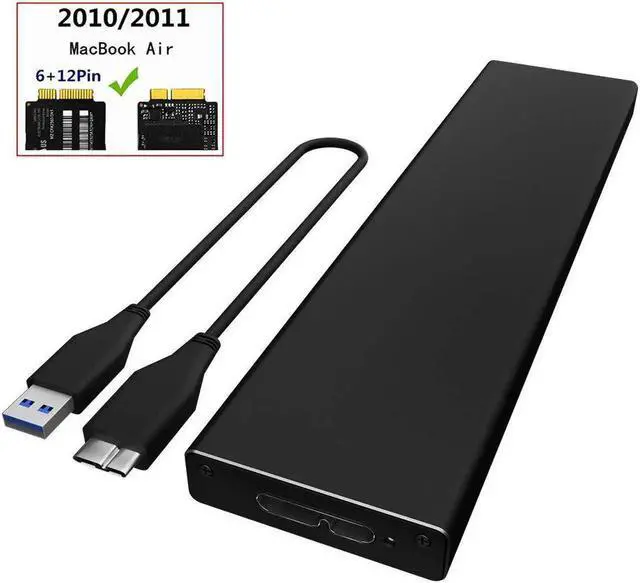

PCIe SSD Enclosure For MacBook Air 2010 2011 USB 3.0 to A1369 A1370 External SSD Case For MC503 MC505 MC506 MC965 MC968 MC969

Supporting Hard Drive Capacity:512G

Size:1.8"

Case Material:Aluminum

Model Number:ZD0257

Package:Yes

External Interface:USB

Internal Interface:A1369 A1370 SSD Interface

PCIe SSD Enclosure For MacBook Air 2010 2011 USB 3.0 to A1369 A1370 External SSD Case For MC503 MC505 MC506 MC965 MC968 MC969

Features:

Alow 2010-2011 macbook air SSD to work as USB 3.0 external hard drive, Macbook SSD is not included.

Only support 6+12 PIN SSD from MacBook Air 13 inch A1369, 2010-2011 Model MC503 MC504 MC965 MC966,11 inch A1370, 2010-2011 Model MC505 MC506 MC968 MC969.

USB 3.0 high speed transfer, the maximum speed of up to 6Gbps.

No need driver, plug and play, no need extra power supply. hard disk slot, more stable and reliable.

NOTE:SSD formated in Mac OS systerm can't be compatible with Microsoft system, so SSD without partition,ssd can't be shown in table of "My Computer", please use the Disk Manager in Windows to delete the old partitions and create a partition.

MacBook Air SSD interface standard:

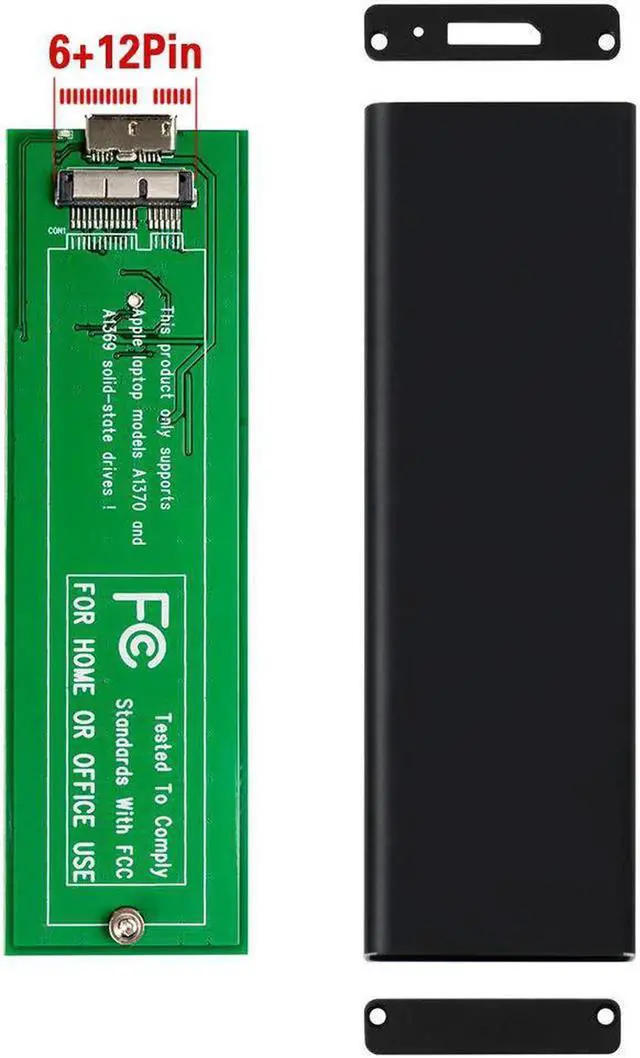

1. 2010 and 2011 MacBook Air SSD is 6+12 pin, only one side have contact, size is 109 mm*24 mm.

2. 2012 MacBook Air SSD is 7+17 pin, size is 109 mm*24 mm.

3. 2013 and 2014 MacBook Air SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*24 mm.

This product is compatible with Late 2010- Mid 2011 MacBook Air SSD from:

MacBook Air (13-inch Mid 2011)(July 2011)Model ID: MacBookAir4,2 (1.7GHz, 1.8GHz)

MacBook Air (13-inch Late 2010)(October 2010)Model ID: MacBookAir3,2 (1.86GHz, 2.13GHz)

MacBook Air (11-inch Mid 2011)(July 2011)Model ID: MacBookAir4,1 (1.6GHz, 1.8GHz)

MacBook Air (11-inch late 2010)(October 2010)Model ID: MacBookAir3,1 (1.4GHz, 1.6GHz)

Not compatible with those SSD from:

MacBook Air (13-inch 2012 Education Model)(July 2012)Model ID: MacBookAir4,2 (1.7GHz)

MacBook Air (13-inch Mid 2012)(June, 2012) Model ID: MacBookAir5,2 (1.8GHz, 2.0GHz)

MacBook Air (11-inch Mid 2012)(June, 2012) Model ID: MacBookAir5,1 (1.7GHz, 2.0GHz)

Note:

Please make sure your SSD is not encrypted before you apply it to this adapter enclosure.

Please assure enough powe supply from the USB interface to support your SSD running.

If you're not sure whether this enclosure fits your SSD well or not, please contact us for confirmation befor you buy it, and if you have any problem during your oepration, just come to us for technical support.
