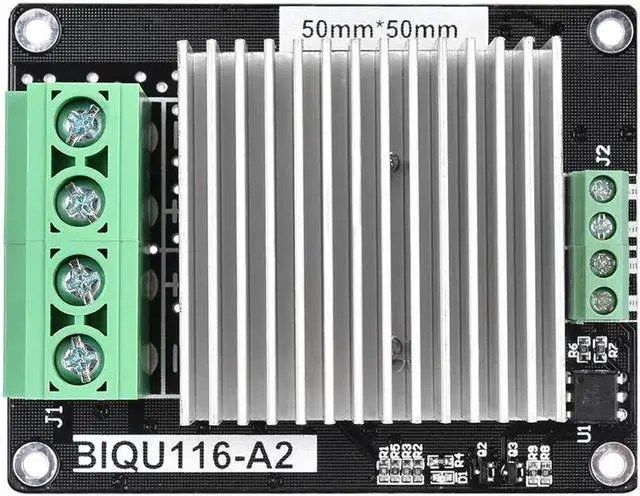

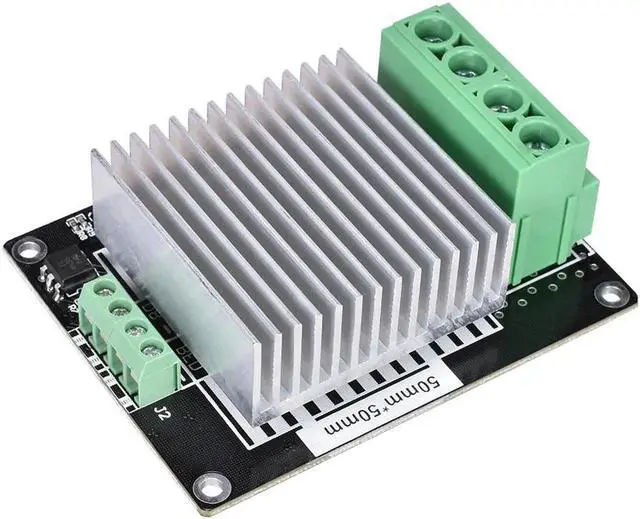

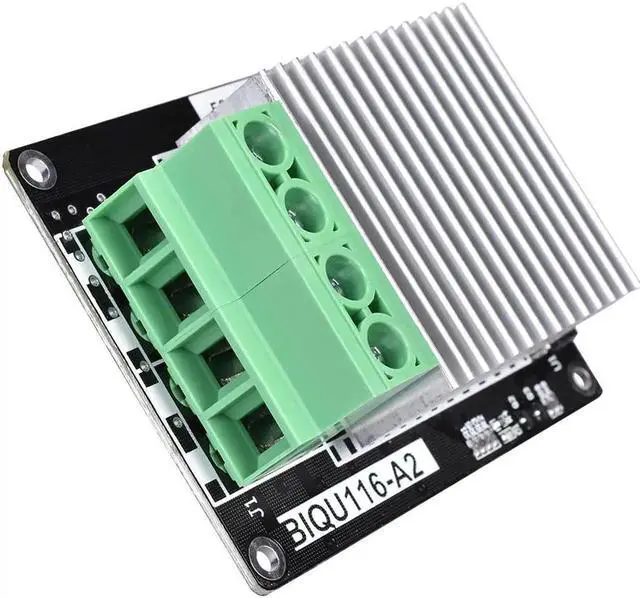

3D printer parts heating-controller MKS MOSFET for heat bed/extruder MOS module exceed 30A support big current

Item Type:Heating Controller

Model Number:MKS MOSFET

motor parabola:tete de lit

MOSFETs:field-effect

heated bed mosfet:mos device

MOSFET Transistor:semiconductor device

Board Size:88mm*67mm*34mm

Heatsink Size:50mm*50mm*20mm

Advantages :

1.

Each one will be done functional test .

2.

Superior performance of MOSFET (Max 280A).

3.

Extra large heat sink , the maximum current can be up to 30A or more.

4. Can use hot bed output signal of Ramp1.4 and MKS series to control .

5. Can use digital signal of 5-24v to control .

Usage :

1. Plug a power supply .

2.

Connect to heated bed .

3.

Connect digital control signal to GND,D8 of MKS MINI.

4.

Connect to the heated bed signal on Ramps1.4 or MKS series controller boards.

Notics:

1)Only can choose 3 OR 4 signal group .

2)P

ay attention to polarity.

1X

3Dprinter heating-controller

MKS MOSFET
