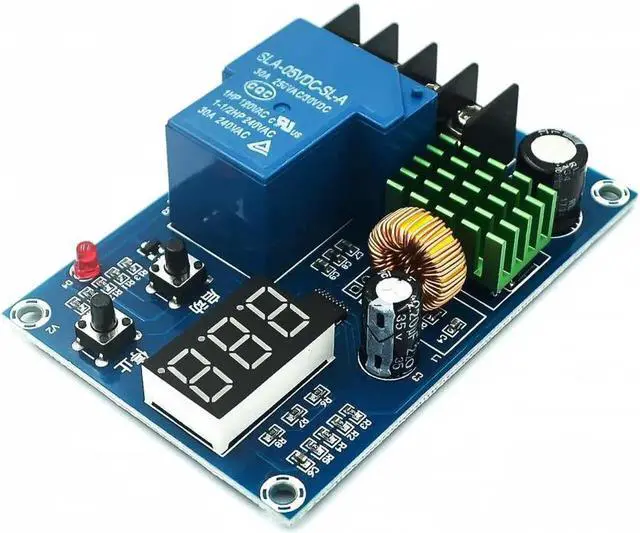

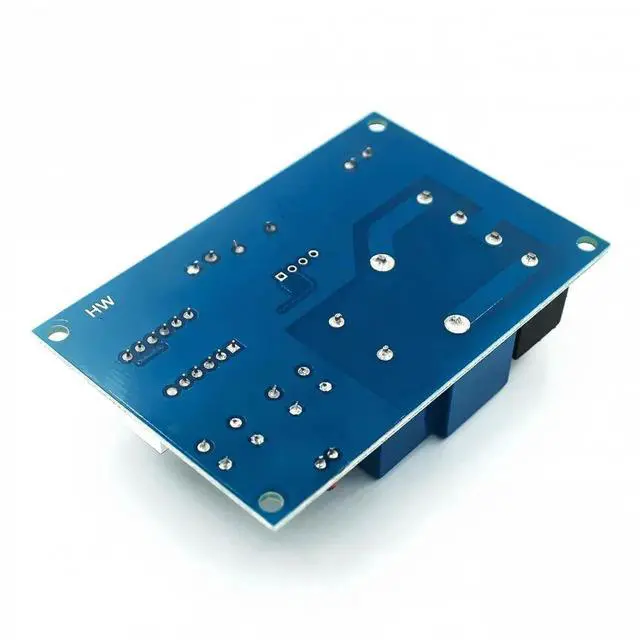

XH-M604 Charger Control Module DC 6-60V Storage Lithium Charging Control Switch Protection Board
- XH-M604 Charger Control Module DC 6-60V Storage Lithium Charging Control Switch Protection Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:CN(Origin)
Condition:
Type:Voltage Regulator
Application:Computer
Supply Voltage:1
Dissipation Power:1
is_customized:Yes
Description
Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V
Dimension:81*54*18mm
Use: In the setting voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:
Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error:
