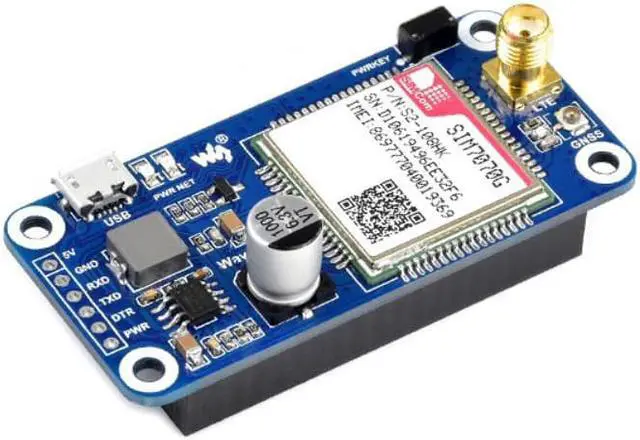

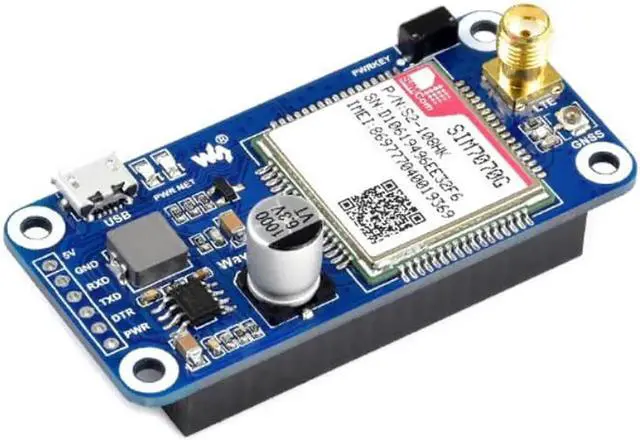

Raspberry Pi SIMCOM SIM7070G module NB-IoT/Cat-M/GPRS GNSS positioning expansion board

Origin:Mainland China

Model Number:SIM7070G Cat-M/NB-IoT/GPRS HAT

Product Description

SIM7070G Cat-M/NB-IoT/GPRS HAT supports NB-IoT, Cat-M and GPRS in the global frequency band, with GNSS positioning function, compact size, low communication delay, and wide coverage. It is very suitable for smart meters, asset tracking, Internet of Things applications such as remote monitoring and electronic medical care. Compared to SIM7080G, I support GPRS (2G), and compared to SIM7000C/E, I support global network frequency bands, which are universal.

Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards

Support TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and other protocols

Support GNSS positioning (GPS, Beidou, GLONASS, Galileo)

Onboard USB interface, which can be used to test AT commands, obtain GPS positioning information, etc.

Lead out UART control pins, which can be connected to main control boards such as Arduino/STM32

Onboard SIM card slot, only supports 1.8V SIM card (3V SIM card is not supported)

Onboard 2 LED indicators for easy viewing of the module's operating status

Support serial port baud rate range: 300 ~ 3686400 bps

Support self-adapting several common baud rates: 9600/19200/38400/57600/115200 bps

Provide complete supporting information manuals (Sample programs such as Raspberry/Arduino/STM32)

Product Parameter

NB-IoT/Cat-M/2G parameters

Working frequency band

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85

Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

GSM/GPRS/EDGE: 850/900/1800/1900MHz

Transmission rate

NB-IoT: 136Kbps(DL)/150Kbps(UL)

Cat-M: 589Kbps(DL)/1119Kbps(UL)

GPRS: 85.6Kbps(DL)/85.6Kbps(UL)

EDGE: 236.8Kbps(DL)/236.8Kbps(UL)

Support SIM card: NB-IoT/Cat-M/2G card (only support 1.8V SIM card)

Applicable area: Globally

GNSS parameters

Receive

16 channels

C/A Code

Working frequency

GPS L1: 1575.42 ± 1.023MHz

GLONASS L1: 1598.0625 ~ 1605.375MHz

BDS B1: 1559.052 ~ 1591.788MHz

Galileo L1: 1575.42 ± 1.023MHz

Data format: NMEA-0183

Antenna: Active antenna

Other parameters

Supply voltage: 5V

Operating voltage: 5V / 3.3V (switched by 0 ohm resistor)

The current consumption of the whole machine is about 41mA (idle mode)

Working temperature: -40°C ~ 85°C

Storage temperature: -45°C ~ 90°C

Product size: 30.50mm × 65.00mm

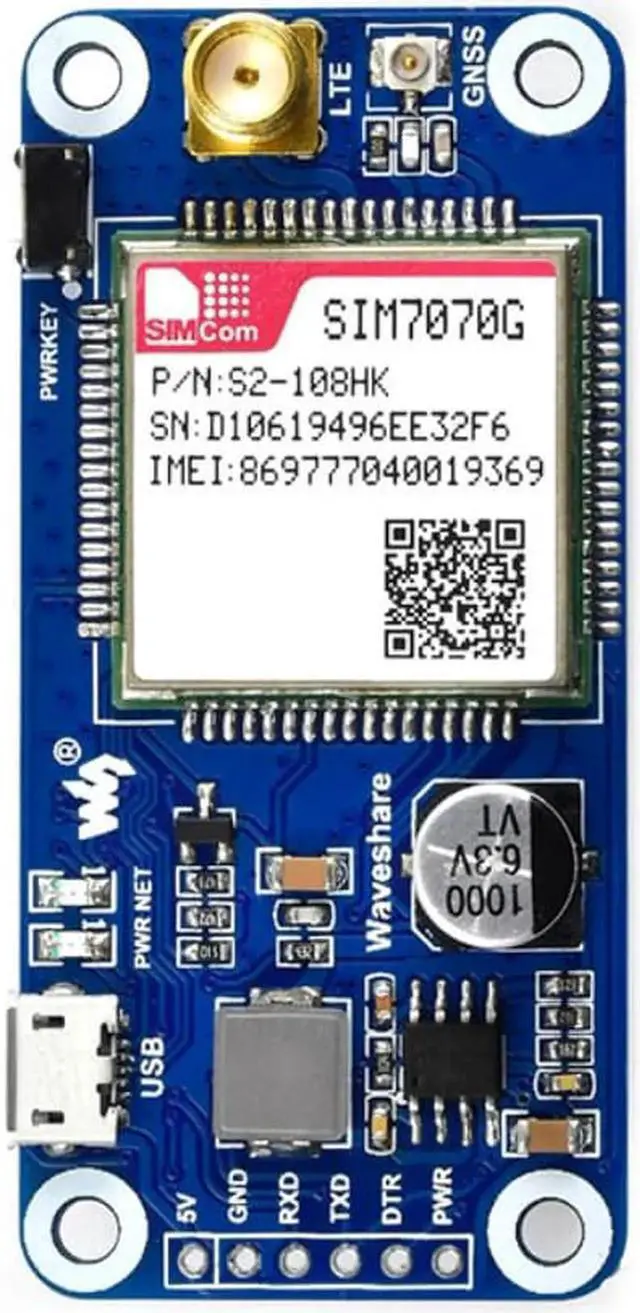

Product Details

SIM7070G module

MP1482 power chip

RT9193-33 power chip

Raspberry Pi GPIO interface

USB interface

SIM7070G control interface

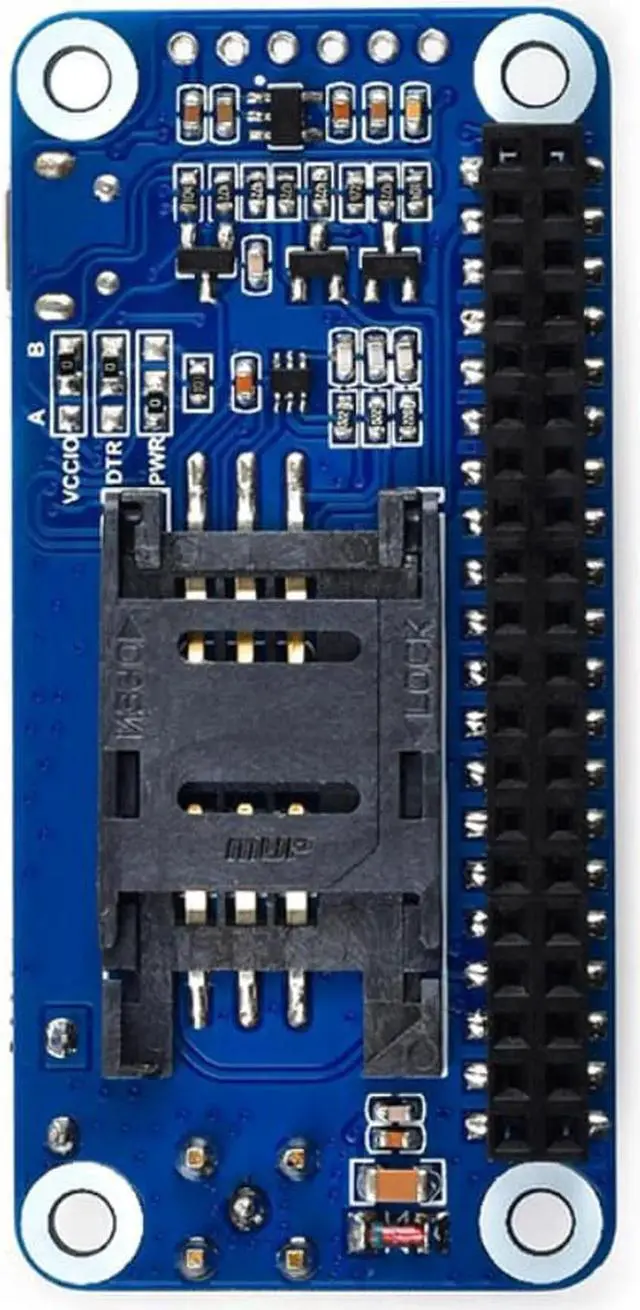

SIM card slot

GNSS antenna interface

LTE antenna interface

Module switch button

Network status indicator

Power Indicator

Working level selection

A: IO level is 5V

B: IO level is 3.3V (factory default)

DTR selection

A: DTR connects to P26

B: DTR is not connected (factory default)

PWR selection

A: PWR connects to P4 (factory default)

B: PWR connected to the power supply

Product Size

SIM7070G Cat-M/NB-IoT/GPRS HAT × 1

LTE antenna × 1

GPS External Antenna (B) × 1

USB cable type A male port to micro male port × 1

Mobile NB-IoT card × 1

Screw pack ×1
