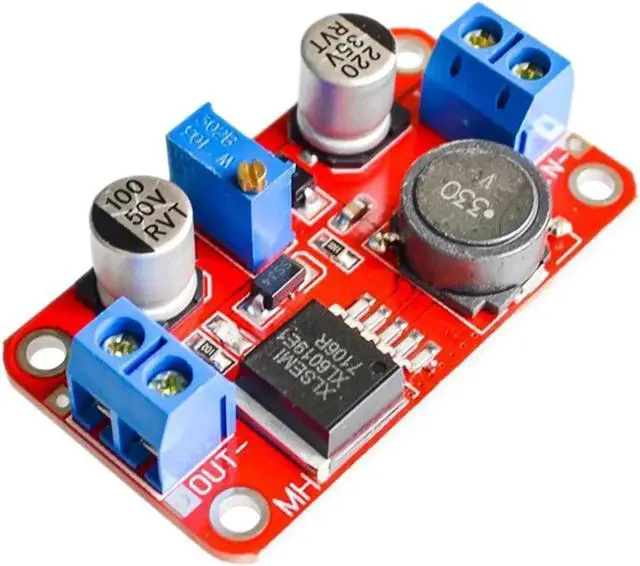

XL6019 DC-DC Boost Volt Converter Adjustable Output DC-DC Step-Up Voltage Regulator High Power for Handheld Device Power Supply

XL6019 DC-DC Step Up Power Module 3V-40V To 5V-45V DC-DC Boost Volt Converter Adjustable Output for Handheld Device Power Supply

Features:

1.

Integrated Boost Power Module: This DC-DC step up power module utilizes the XL6019 integrated circuit, designed for boosting and buck-boost applications. It operates within a wide input voltage range of 5V to 40V, delivering low ripple performance and featuring an integrated power MOSFET.

2. Wide Input Range with

Adjustable Output: With an input voltage range from 3V to 35V (recommended), this DC-DC boost volt converter supports high input voltages up to 40V. The output voltage is also adjustable, allowing flexibility in powering various devices.

3. Enhanced Reliability and

Protection: Equipped with built-in over-temperature and over-current protection circuits, this step up converter module ensures reliable performance and safeguards against potential damage. Enjoy peace of mind knowing your system is well protected.

4. Efficient and

Heat-Friendly: Achieve conversion efficiencies of over 90% with this booster power supply module, facilitating efficient power transfer while minimizing heat generation. Ideal for applications requiring effective thermal management.

5. Compact and

Versatile: Designed in a T0263-5L standard package, this DC-DC step-up voltage regulator is perfectly suited for boosting applications up to 30W. Its compact dimensions make it suitable for EPCs, notebook car adapters, voltage conversion, and portable device power supply.

Specification:

Origin: Mainland China

Type: Module

Condition: New

Module Nature: Non-Isolated Boost (Boost)

Rectification Method: Non-Synchronous Rectification

Input Range: Limit Value: 3-40v, Recommended Value: 3v-35v

Output Range: Limit

Value: 5-45v, Recommended Value 5v-40v (By Rotating Potentiometer)

Input Current: Limit Value: 0-5A, Recommended Value 0-3A

Conversion Efficiency: Maximum 94%

Switching Frequency: 220khz, The Second Generation Of Switching Power Supply Technology

Output Ripple: Less Than 100mV

Load Adjustment Rate: 0.5 %

Voltage Adjustment Rate: 0.5 %

Operating Temperature: Limit Value: -40~+150, Recommended Value -20c~+85

Reverse Connection Protection: Input 40v Anti-Reverse Connection Protection

Size: 50*28*13mm/ 1.95 * 1.09 * 0.51 in

Application: EPC/Notebook Car Adapter, Lift Voltage Conversion, Handheld Device Power Supply

Product Description:

The XL6019 is a monolithic IC designed for step-up and step-down voltages. It can operate from DC5V to 40V input voltage range. The XL6019 has a built-in fixed-frequency oscillator and frequency compensation circuit to simplify circuit design. The PWM control loop can adjust the duty cycle from 0-90% linearly. Built-in over-current protection and EN pin logic level shutdown function.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1*DC-DC Step Up Power Module
