Antennas 802.11AC Wifi BCM94360CD Wireless Network Card with Bluetooth 4.0 OS X Yosemite 10.10

Type:Wireless

Transmission Rate:10/100/1000Mbps

Kind:Internal

Adapter Socket:PCI-X

Interface Type:PCI-X

Application:Desktop

Model Number:BCM94360CD

Package:Yes

Wireless Protocol:802.11n

Applicable Network Type:Gigabit Ethernet

Transmission Speed:1200 Mbps

Lan Transmission Rate:1000M Ethernet

Wi-Fi Supported Frequency:2.4G & 5G

Products Status:Stock

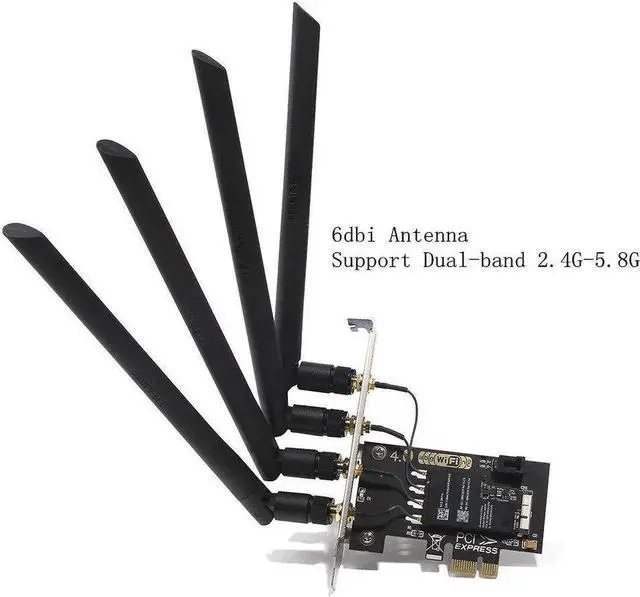

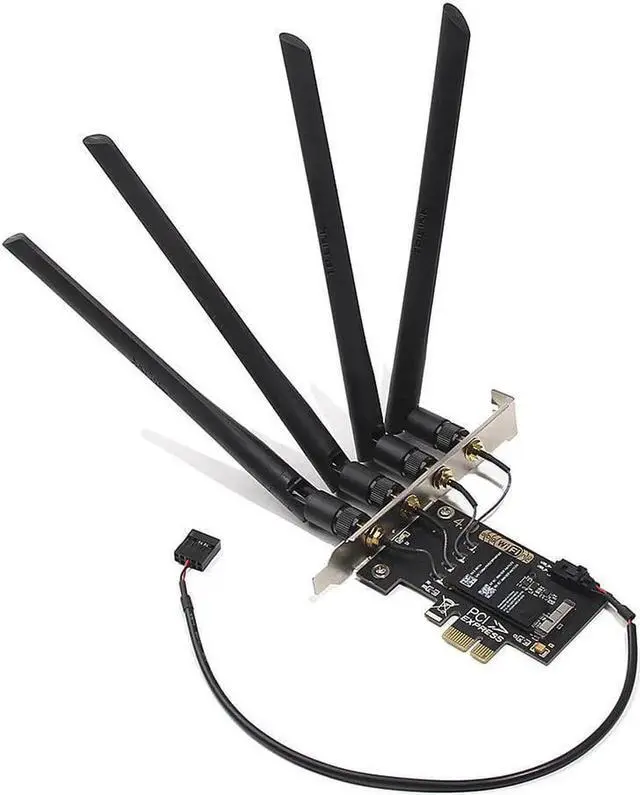

4 Antennas 802.11AC Wifi BCM94360CD Wireless Network Card with Bluetooth 4.0

Specifications:

Supports both 2.4 & 5GHz dual-band,the connection speed will reach to 1300Mps under latest AC router

Support Windows7/8/8.1/linux

Native Support for latest OS X Yosemite 10.10

Native Support

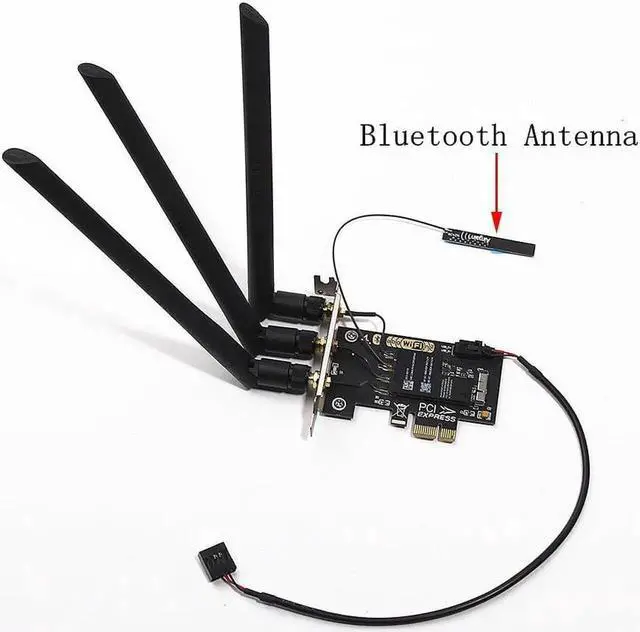

Bluetooth 4.0 coexistence

Support Hand off

Performance:

The BCM4360 implements the 3-stream 802.11ac specification to enable speeds up to 1.3 Gbps in access points, routers, DSL/cable gateways and PC products. The single-chip dual-band transceiver integrates all the major functional blocks needed to implement a complete 802.11ac wireless sub-system, including radio, baseband and MAC. This highly integrated solution provides the increased coverage and throughput performance required for video and media applications in the home and enterprise.

1.3 Gbps PHY rate performance offering over 3x performance

Dual-band operation compatible with legacy 802.11n networks

80 MHz wide bandwidth that is 2x wider than current 802.11n solutions 256-QAM, a higher modulation scheme that increases data transfer efficiency

802.11ac-compliant transmit and receive Beamforming for extended coverage for 802.11ac and legacy devices

Low Density Parity Check (LDPC) Codes for increased rate at range

PCI Express 2.0 host interface
