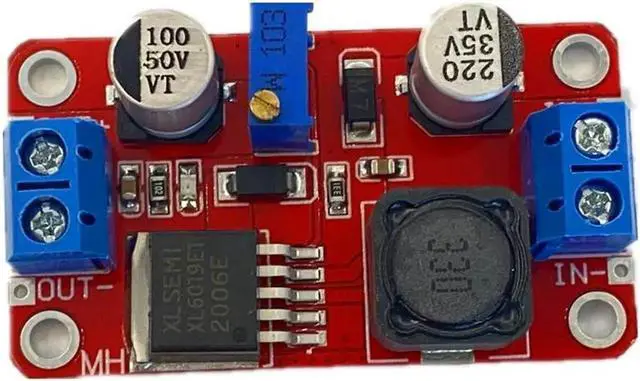

XL6019 4A Boost Converter Step Up Adjustable 15W 5-32V to 5-50V DC-DC Power Supply Module High Performance Low Ripple

XL6019: Performance:

1. conventional constant voltage output topology BOOST fully integrated solutions, integrated MOSFET, fewer external components, lower system cost

2,. wide voltage range input, the input voltage up to 35V

3. output voltage is adjustable, supports up to 40V

4. built-in over-temperature protection, overcurrent protection circuit full set of reliability, high reliability

5. the system conversion efficiency of over 90%, to facilitate thermal design

6. TO263-5L standard package, suitable for 30W boost applications within.

Instructions:

1. Power (3-35V), power indicator light, the module is working properly.

2. Adjust the blue potentiometer knob (counter-clockwise general boost, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.

NOTE: 1. Current work long hours is recommended for use in less than 2.5M, while adding bulk Heat sink (10W output above); because it is boosting module, in order to ensure stable output Set, please keep the minimum 1.5V differential.
