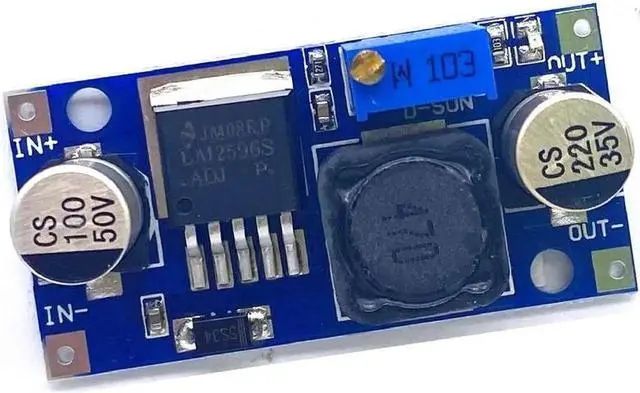

DC-DC Voltage stabilized power supply module Adjustable boost& buck voltage regulator module LM2596S-ADJ

Name: LM2596 DC-DC Buck module

Input voltage: 4V ~ 35V

The output voltage: 1.23V ~ 30V

Output Current: 3A ( Max)

Conversion efficiency: 92% ( MAX )

Output ripple: <30mV

Switching frequency: 150KHz

Working temperature: -forty Five~ +85

Size: 43mm * 21mm * 14mm (Long*Width*Hight) Features:

1. the range ofinput voltage: 3.2 V to 40 V dc(input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)

2. the range ofoutput voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%)largest maximum output current is 3A.

Instructions:

1. Power (3-40V), power indicator light, the module is working properly.

2. Adjust the blue potentiometer knob (clockwise rotation generally boost, counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

Note:

Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above), because it is the step-down module, in order to ensure stable output Set, please keep the minimum 1.5V differential. LM2596S DC-DC 3.6 -46V 3A adjustable step-down power Supply module With reverse connection protection 5V voltage regulator

LM2596S upgrade! Increase the input with reverse connection protection, plus or minus the reverse would not burn module, strengthen the quality of the inductance, increase the service life of the product!

Using the tutorial:

1. Plugged into a power supply (3-40 v), the power indicator light is lit, the module to work properly.
