For Albright SW180 SW180-4 SW180-283 SW180B-751 24V Contactor Type ZJW200A CZW200A SW180 24V DC Contactor

Origin:CN(Origin)

Country/Region of Manufacture:China

Placement on Vehicle:Front

Interchange Part Number:SW180B-751

Other Part Number:SW180-4

Manufacturer Part Number:SW180 24

For Albright SW180 SW180-4 SW180-283 SW180B-751 24V Contactor Type ZJW200A CZW200A SW180 24V DC Contactor

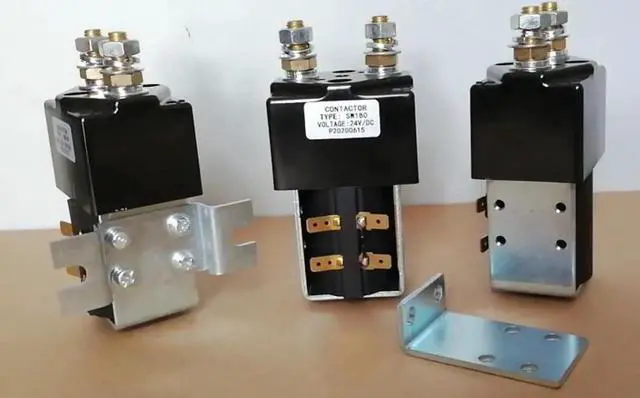

SW180 24V DC contactor

Coil voltage:24V,

Thermal Current Rating 100%

150A

Intermittent Current Rating

30% Duty 275A

70% Duty 180A

The SW180 series of contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, and such like Elec forklift etc.

They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.

Compact Size:

The contactors are compact in size and are fully serviceable with a full range of spare parts available.

Installation:

Mounting is by means of 4mm tapped holes in the switch frame together with a range of mounting brackets complete with screws and washers.
