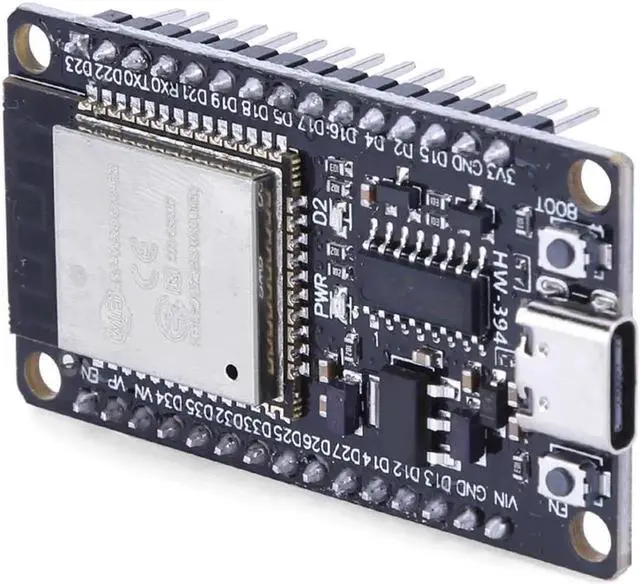

ESP32 WROOM-32 Development Board WiFi+Bluetooth-compatible Ultra-Low Power Consumption Development Board Module for Smart Home

ESP32 WROOM-32 Development Board WiFi+Bluetooth-compatible Ultra-Low Power Consumption Development Board Module for Smart Home

Feature:

1. WiFi and

Bluetooth-compatible Features: The ESP32 WROOM-32 module is a versatile WiFi+BT+BLE MCU module that supports both low-power Bluetooth-compatible and WiFi connectivity, providing wide application potential.

2.

Integrated SPI Flash: The module has an integrated SPI flash that allows for fast and reliable data storage, making it more efficient for various applications.

3. Wide Range of

Wireless Communication: With built-in WiFi support, the module can connect to the internet directly via a router, allowing for efficient wireless communication and data transfer over long distances.

4.

Easy Signal Detection: The module's Bluetooth-compatible capabilities allow users to detect signals easily and conveniently via their mobile devices, making it ideal for signal detection applications.

5.

Wide Application Potential: The module is widely used in applications such as WiFi solutions, WiFi mini cameras, mesh networking, smart homes, and mobile IoT, providing a solution for various IoT and smart device development projects.

Specification:

Working voltage: TYPE-C 5V

SPI FLASH: Default 32MBIT

Serial port speed: 115200BPS

Frequency range: 2412-2484MHZ

Bluetooth-compatible protocol: Bluetooth-compatible 4.2BR /EDR and BLE standards

WIFI protocol: 802.11B /G/N

Antenna form: onboard PCB antenna, gain 2DB

Supported interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC

Product size: about 54 * 28 * 10mm/ 2.12 * 1.10 * 0.39 inch

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x Development Board
