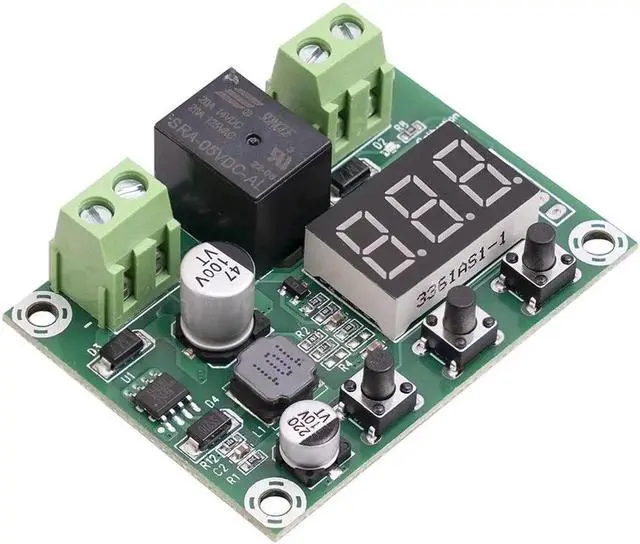

Battery Protection Precise Undervoltage Board Voltage OverDischarge Battery DC Voltage Protection Module Replacement DC Output

Battery Protection Precise Undervoltage Board Voltage OverDischarge Battery DC Voltage Protection Module DC6V-80V Replacement

Specification:

Origin: Mainland China

Power supply voltage: DC6V-80V.

Output voltage: Equal to power supply voltage, DC6V-80V

Maximum input: DC80V, note: input voltage higher than 80V may cause permanent damage.

Control accuracy: 0.1V

Power consumption: <1.5W

Protection: The positive and negative polarity of the input terminal voltage is reversed, automatic protection, no display and no output. (Note: if the input wiring is correct and the polarity of the output terminal wiring is reversed, the output terminal is not protected)

Display mode: Three-position 0.36 -inch LED nixie tube

Display color: Red

Overall dimension: About 57x42x19mm/ 2.24 x 1.65 x 0.74 inch

Set 11V stop, 14V start, 15V stop.

Set the high voltage value first: press "HV" once to display the protection value, press and hold the value to flash, then press "+or -" to change the value to

15. After 4 seconds of no operation, the module will automatically save and exit the setting mode.

Set cut-off voltage value: press "+" once to display the current cut-off voltage, press and hold the value to flash, release the key, and then press "+or -" to change the value to

11. After 4 seconds of no operation, the module will automatically save and exit the setting mode.

Set the return difference: press "-" once to display the current return difference voltage, press and hold the value to flash, release the key, and then press "+or -" to change the value to

3. After 4 seconds of no operation, the module will automatically save and exit the setting mode.

Set the range of 10.5V to 12V to open, and others to close (that is, low voltage 10.4V to stop, high voltage 12.1V to stop)

Set the high voltage value first: press "HV" once to display the protection value, press and hold the value to flash, then press "+or -" to change the value to 12.1. After 4 seconds of no operation, the module will automatically save and exit the setting mode.

Set cut-off voltage value: press "+" once to display the current cut-off voltage, press and hold the value to flash, release the key, and then press "+or -" to change the value to 10.4. After 4 seconds of no operation, the module will automatically save and exit the setting mode.

Set the return difference: press "-" once to display the current return difference voltage, press and hold the value to flash, release the key, and then press "+or -" to change the value to 0.1. After 4 seconds of no operation, the module will automatically save and exit the setting mode.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x Voltage Protection Board
