$26.33
Ships from China.
Meet Your Seller

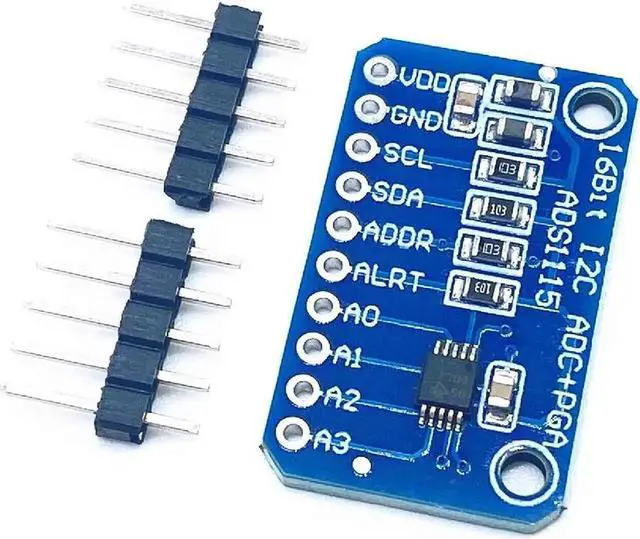

16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier RPi
- 16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier RPi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ADC Bit rate: 16 Bit
Interface Type: I2C
Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs
Input voltage: 2.0 - 5.5 v
Channel input voltage: 0-VDD
Continuous Mode: Only 150A
Single-Shot Mode: Auto Shut-Down
PROGRAMMABLE DATA RATE: 8sps-860sps
Input range programmed control,
7 types input ranges:
- 0.256V ~ + 0.256V, - 0.512V ~ + 0.512V, - 1.024V ~ + 1.024V,
- 2.048V ~ + 2.048V, - 4.096V ~ + 4.096 V, - 6.144V ~ + 6.144V
I2C 7-bit addresses between 0x48-0x4B
Size: 18mm*28mm
Applications
Portable instrumentation
Consumer goods
Battery monitoring
Temperature measurement
Factory automation and process controls
