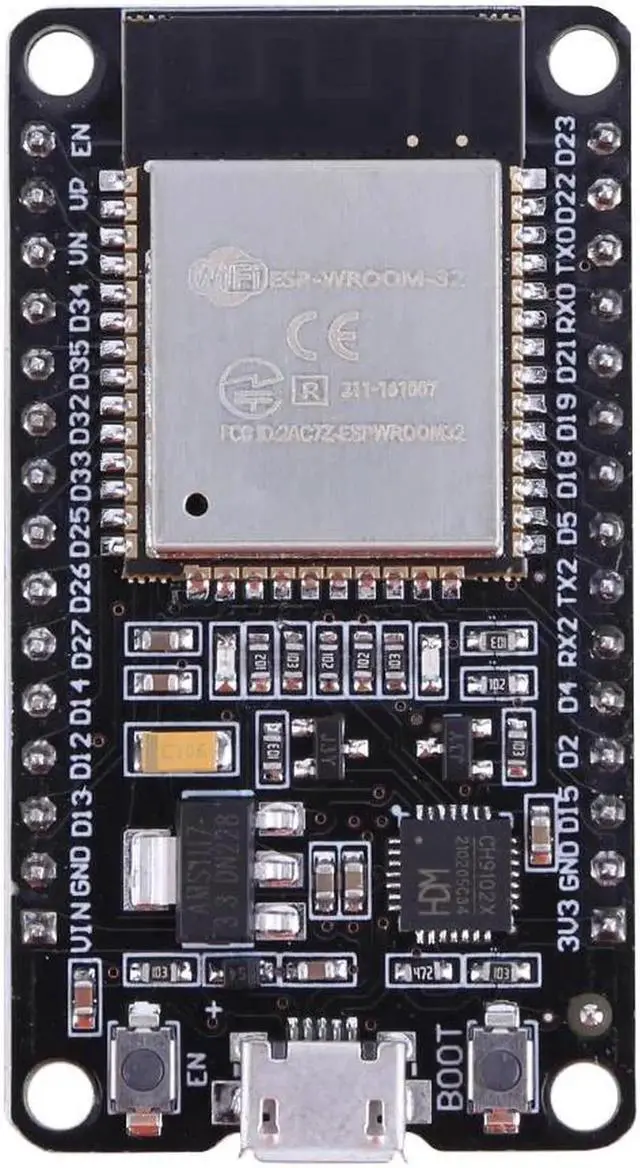

IOT Development Board WiFi+Bluetooth-compatible Dual Core CPU Development Board Support STA/AP/STA+AP Mode(CH9102X)

ESP32 Development Board WiFi+Bluetooth-compatible Wireless Module Base On ESP32 Low Power Consumption Support STA/AP/STA+AP Mode

Feature:

1.

Versatile USB Connectivity: With micro-USB and Type-C interfaces, the ESP-WROOM-32 module can be easily connected to a computer for debugging and fast data transfer using USB-to-serial chips such as CP2102/CH9102.

2.

Convenient Button Controls: Two touch buttons on the board allow developers to easily reset the module or enter download mode, making it more user-friendly.

3.

Clear Status Indicators: The board has power and status indicator lights that provide real-time feedback on the current state of the module, making it easier to monitor and troubleshoot.

4. Powerful Bluetooth-compatible and

WiFi Capabilities: This development board has excellent Bluetooth-compatible and WiFi capabilities, making it perfect for various IoT applications, including home automation, wireless industrial control, wireless positioning systems, and more.

5.

Wide Compatibility: The module is compatible with popular development environments like for Arduino and NodeMCU and provides easy access to abundant resources from the official website of Espressif and other manufacturers, making it easy to use and learn.

Specification:

Specifications

: 463B (CH9102X), 463C (CP2102 TYPE-C) (optional)

SPI

Flash: default 32Mbit

Bluetooth-compatible: Bluetooth-compatible 4.2 BR/EDR and BLE standards

WiFi: 802.11 b/g/n/

Supported interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC

On chip sensors: Hall sensors, temperature sensors, capacitive touch sensors

Serial port speed: default 115200 bps

Spectrum range: 2412~2484MHz

Antenna form: onboard PCB antenna with a gain of 2dBi

Transmission power:

802.11 b: 172dBm(@11Mbps)

802.11 g: 14+2dBm(@54Mbps)

802.11 n: 132dBm(@MCS7)

Receiving sensitivity:

CCK,

1Mbps: -90dBm

CCK,

11Mbps: -85dBm 6Mbps(1/2BPSK): -88dBm 54Mbps(3/464-QAM): -70dBm

MCS7(65Mbps,

72.2M bps): -67dBm

power waste: 300mA@ 3.3V

Security: WPA/WPA2/WPA2 Enterprise/WPS

Power supply range: USB

power supply: 5V Vin pin power supply: 5.0V ~12V

Working temperature: -20~85

Storage environment: -40~90, <90% RH

Product size: about 52 * 29 * 15mm/ 2.04 * 1.14 * 0.59 inch

1. 802.11 b/g/g WiFi+BT module;

2. Low power dual core 32-bit CPU, which can be used as an application processor;

3. The main frequency can reach up to 240MHz, and the computing power can reach up to 600DMIPS;

4. Built in 520 KB SRAM;

5. Support interfaces such as UART/SPI/I2C/PWM/DAC/ADC;

6. Support openOCD debugging interface;

7. Supports multiple sleep modes, with a current of 6.5 uA during deep sleep;

8. Embedded Lwip and FreeRTOS;

9. Support STA/AP/STA+AP mode;

10. Support Smart Config/Airkiss one click network distribution;

11. Universal AT command, easy to use;

12. Support local serial port upgrade and remote upgrade (FOTA).

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x ESP32 Development Board
