5PCS LJ12A3-4 BX/BY/AX/AY J-DZ/EZ Inductive Proximity Switch LJ12A3-2 BX NPN PNP Sensor NO NC DC5~36V 4mm Detection Distance(LJ12A3-4-Z-EX)

LJ12A3-4-Z/BY: PNP NO 3-Line DC type 12mm diameter; 4mm detection distance

LJ12A3-4-Z/AY: PNP NC 3-Line DC type 12mm diameter; 4mm detection distance

LJ12A3-4-Z/BX: NPN NO 3-Line DC type 12mm diameter; 4mm detection distance

LJ12A3-4-Z/AX: NPN NC 3-Line DC type 12mm diameter; 4mm detection distance

LJ12A3-4-Z/CX: NPN NO+NC 4-Line DC type 12mm diameter; 4mm detection distance

LJ12A3-4-Z/CY: PNP NO+NC 4-Line DC type 12mm diameter; 4mm detection distance

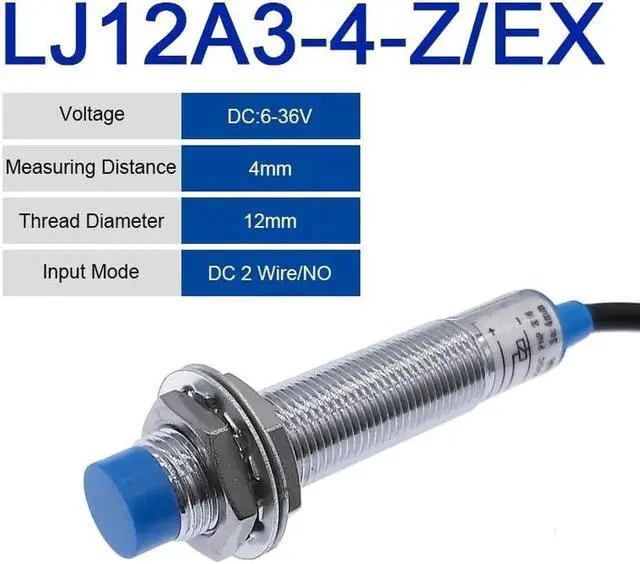

LJ12A3-4-Z/EX: NO 2-Line DC type 12mm diameter; 4mm detection distance

LJ12A3-4-Z/DX: NC 2-Line DC type 12mm diameter; 4mm detection distance

LJ12A3-4-J/EZ: NO 2-Line AC type 12mm diameter; 4mm detection distance

LJ12A3-4-J/DZ: NC 2-Line AC type 12mm diameter; 4mm detection distance

[Main Parameter]

Detection distance: 4mm 10%

Set distance: 0~ 3.6 mm

Current: 6V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A

Delay distance: 10% below of the detection distance

Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)

Stand detection object: Iron 15*15*1mm

Response frequency: DC: 0.5 kHz

Supply voltage: DC type: DC12V DC24V DC36V(5~36V)impulse(p-p)10% below

Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing

Meterial: (Housing: Nickel plated brass) (Detection surface: ABS)

Protection influence: IP67 (IEC specification)

This product can be applied to control relays, counters, PLC, etc.!
