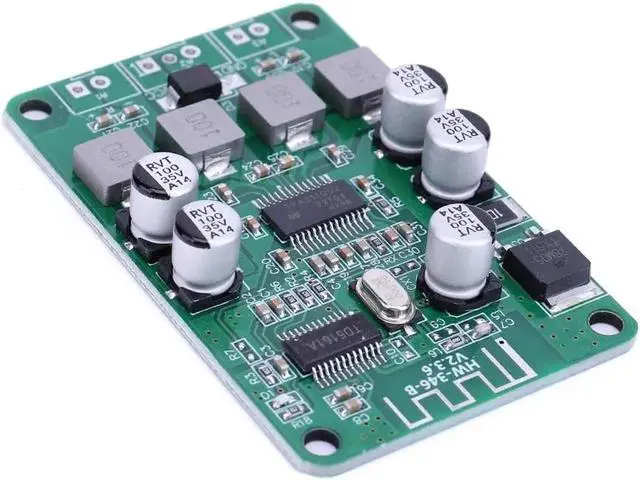

TPA3110 Wireless Amplifier Module Dual Channel Bluetooth-compatible Wireless Stereo Amplifier Module for 4/6/8/10 Ohm Speaker

TPA3110 Audio Power Amplifier Board DC 10-25V Bluetooth-compatible Digital Amplifier Board 15W+15W for 4/6/8/10 Ohm Sound System

Feature:

1.

Bluetooth-compatible Connectivity: Our audio power amplifier board features wireless Bluetooth-compatible connectivity, providing convenient and flexible audio streaming options.

2.

Long-Distance Signal Reception: With a maximum signal reception distance of over 10 meters, this wireless amplifier module can easily connect to your Bluetooth-compatible enabled devices from a distance, delivering the ultimate convenience in audio playback.

3.

High-Quality Sound Output: This digital amplifier board delivers exceptional sound quality, with dual-channel output capabilities that provide 15W+15W of clean, powerful sound.

4. Wide Range of

Impedance Compatibility: The wireless stereo amplifier module is compatible with a wide range of speaker impedance levels, ranging from 4 ohms to 10 ohms, making it suitable for use with a variety of different speaker systems.

5.

Variable Power Input: With a recommended power input range of 10V to 25V DC (and a minimum of 12V DC 1A), this digital audio amplifier panel can be powered by a variety of different power sources, providing versatility and flexibility in power supply options.

Specification:

Origin: Mainland China

Type: Voltage Regulator

Condition: New

Application: Speaker

Supply Voltage: DC 10-25 V

Model Number: Audio Power Amplifier Board

Audio input: Wireless Bluetooth-compatible

Maximum reception distance: >10m

Power output: Dual channel 15W+15W

Suitable impedance: 4, 6, 8, 10 Ohm speaker speakers

Power supply voltage: DC 10~25V (recommended 12V DC 2A or more, the actual power of the speaker is not large 12V DC 1A power supply can be)

Power supply interface: 2.54 mm pitch 3PIN

Speaker interface: 2.54 mm spacing 2PIN

Function Description: Can be applied to the speaker speaker conversion wireless Bluetooth-compatible speakers, background music speakers and other modifications.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x Audio Power Amplifier Board
