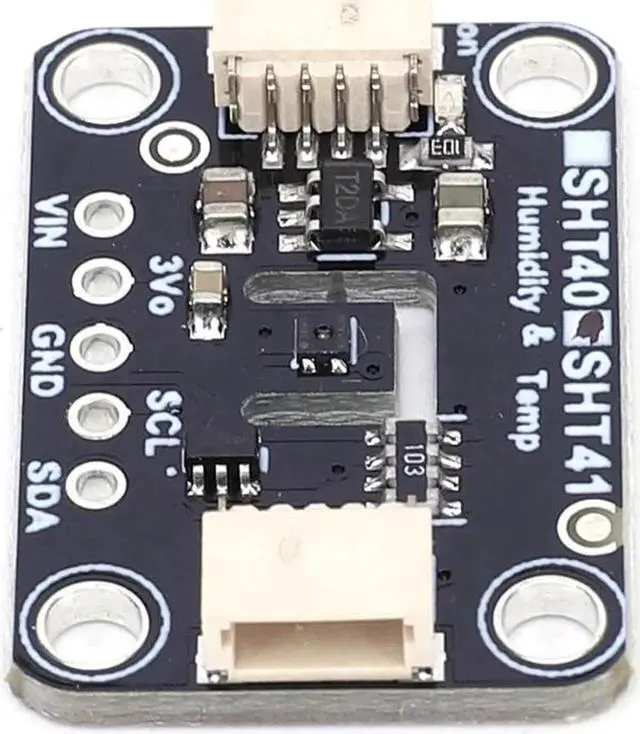

SHT41 1.08 V-3.6 V Temperature Humidity Sensor Module Digital Output Sensor Module Compatible with STEMMA QT Qwiic

SHT41 Temperature Humidity Sensor Breakout Digital Output Sensor Module Compatible with STEMMA QT Qwiic for Air Quality Monitoring

Feature:

1.

High Accuracy: The SHT41 provides highly accurate readings, with a relative humidity accuracy of 1.8 %RH and temperature accuracy of 0.2C, ensuring reliable and precise measurements.

2.

Wide Power Range: With a power voltage range of 1.08V to 3.6V, this sensor is compatible with various devices and easy to integrate into your project.

3.

Low-Power Consumption: With an average current of only 0.4 uA at a measurement rate of 1Hz and a no-load current of 80na, this sensor is very energy-efficient.

4. Full Functionality in

Condensing Environments: This sensor works well in condensing environments and features a variable power heater that allows it to operate even in extreme conditions.

5.

Wide Application Range: The SHT41 is ideal for various applications such as consumer electronics, air quality monitoring, smart home devices, data loggers, smoke detectors, inkjet and laser printers, etc. Additionally, the NIST traceability ensures high-quality performance and reliability.

Specification:

Relative humidity accuracy: 1.8 % RH

Temperature accuracy: 0.2.

Power supply voltage: 1.08 V~ 3.6 V.

Average current: 0.4 uA (measurement rate 1Hz)

No-load current: 80na.

I (2) C fast mode+

Working range: 0% to 100% relative humidity, -40 to+125

Fully functional in condensing environments

Variable power heater

NIST Traceability

Size: 20 * 17 * 5mm/ 0.78 * 0.66 * 0.19 inch

Application:

Consumer electronics

Air quality monitoring

Intelligent speaker/thermostat

Data recorder

Smoke detector.

Inkjet and laser printers

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x Module
