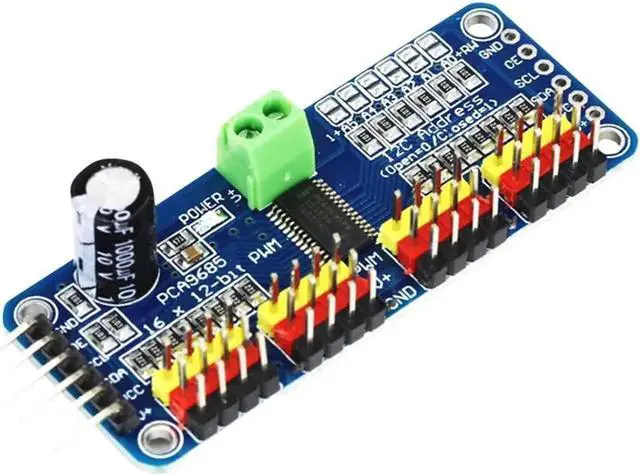

16 Channel Module PCA9685 PWM/Servo Driver Board 5-10V Shield Module 40-1000Hz I2C Interface DIY Kit

16 Channel Module PCA9685 PWM/Servo Driver Module 12-bit 40-1000Hz I2C Interface Shield Board 5-10V DIY Kit

Feature:

1.

Embedded PCA9685 Chip: The PCA9685 chip is securely enclosed within the small board, ensuring reliable and efficient performance.

2.

Green LED Indicator: The power input terminal features a green LED indicator, providing a visual cue of the power status for easy monitoring.

3.

Effortless Servo Motor Connection: With 4 groups of 3-pin connectors, effortlessly connect up to 16 servo motors at once (servo motor plugs slightly wider than 0.1", allowing for 4 sets of 0.1" header pins).

4. Reverse Polarity Protection on

Input Board: The input board features reverse polarity protection, safeguarding against potential damage caused by incorrect wiring.

5.

Cascadeable Design: The cascade design allows you to connect multiple PCA9685 modules together, expanding your PWM output capabilities. Easily control up to 62 driver boards on a single I2C bus, providing a total of 992 PWM outputs. This opens up endless possibilities for your projects. The V+ line contains a large capacitor (10V, 1000uF) that assists in stable performance. Additionally, each PWM output line features a 220 ohm resistor for protection and effortless driving of LEDs.

Specification:

Frequency: 40-1000Hz

Number of channels: 16 channels

Resolution: 12 bits

Voltage: DC 5-10V

Size: 60 * 25mm/ 2.36 * 0.98 in

Color: Blue

Net weight: 12g

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x Module
