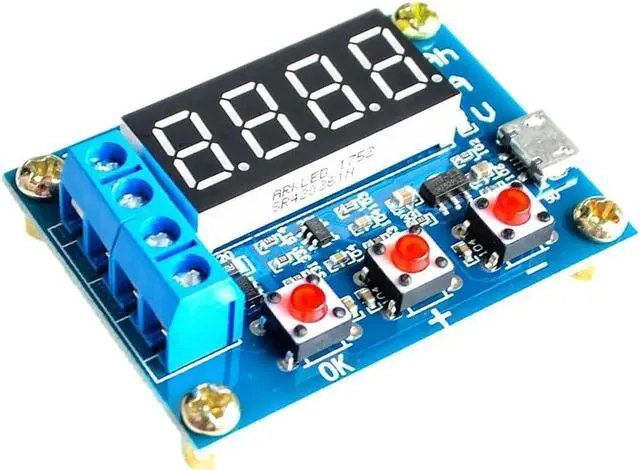

ZB2L3 Resistance Lead-acid Capacity Discharge Meter DC4.5-6V Li-ion Lithium Battery Capacity Tester Battery Capacity Meter

ZB2L3 18650 Lithium Battery Power Supply Test LED Digital Display Resistance Lead-acid Capacity Discharge Meter DC 4.5 -6V Li-ion Lithium Battery Capacity Tester

Feature:

1.

Accurate Capacity Testing: The ZB2L3 battery capacity tester provides precise measurements, offering accurate results for battery capacity testing.

2.

Convenient Operation: Our battery tester features a user-friendly design with intuitive buttons or a touchscreen interface for easy understanding and operation.

3.

Visual Display: Equipped with an LED digital display, our 18650 lithium battery power supply tester visually shows the capacity value of the battery, making it easy to read and interpret.

4.

Easy-to-Use Controls: With simple and straightforward button or knob controls, our resistance lead-acid capacity discharge meter allows for easy initiation of tests, adjustment of settings, and overall user-friendly operation.

5. Durable and

Reliable: The LED digital display of li-ion lithium battery capacity tester is built to be durable and reliable, ensuring a long lifespan and consistent performance.

Specification:

Origin: Mainland China

Type: Module

Condition: New

Power supply voltage: DC 4.5 -6V (MICRO USB interface)

Working current: no more than 70MA

Discharge voltage: 1.00V - 15.00V resolution 0.01V

Termination voltage range: 0.5 - 11.0V

Support current: no more than 3.000A, resolution 0.001A

Voltage measurement error: less than 1%+ 0.02V

Current measurement error: less than 1.2 %+- 0.002A

Battery capacity range: 9999AH

Size: 50*37*17MM/ 1.97 x 1.46 x 0.67 inch

Weight: 28g

Note:

This circuit is specially designed with a DC bias for voltage measurement accuracy.

When the terminal is not connected to anything, a very small voltage will be displayed, which does not affect the actual measurement.

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
