FSP460-701UH 460W 1U Switching Server Power Supply For PC NF5170M3 IPC PSU NAS 80PLUS Bronze

Model Number:FSP460-701UH

Application:Desktop,Server

Modular:Non-Modular

Origin:Mainland China

80 PLUS Certification:80 PLUS BRONZE

CPU Power Connector:4 pin

Graphics Card 12V Pin Number:2 x6 pin

Fans:1

Input Voltage:90-264v

Interface Type:20 + 4Pin

Package:Yes

PFC Type:Active

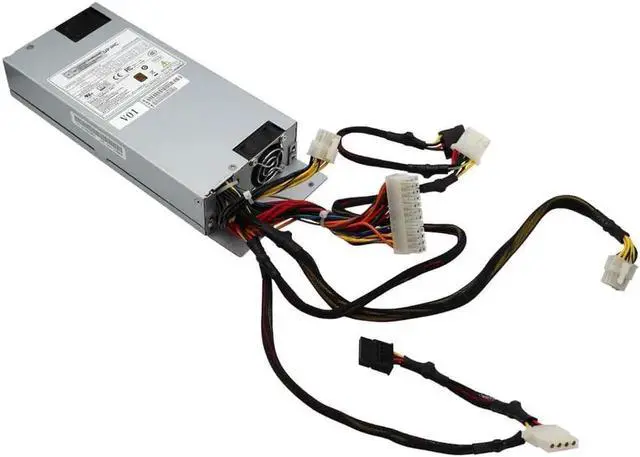

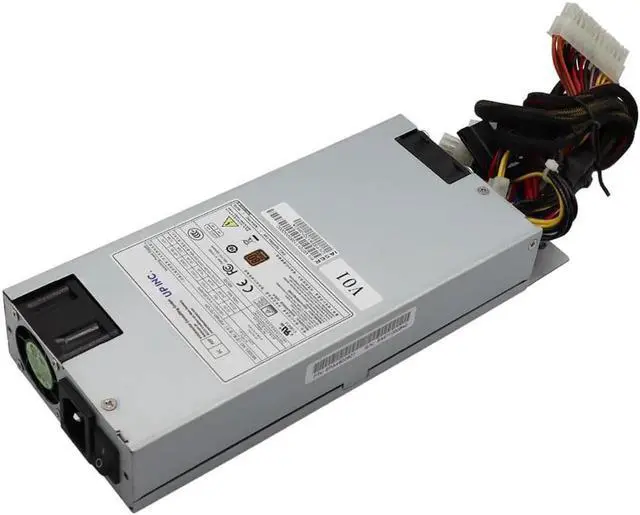

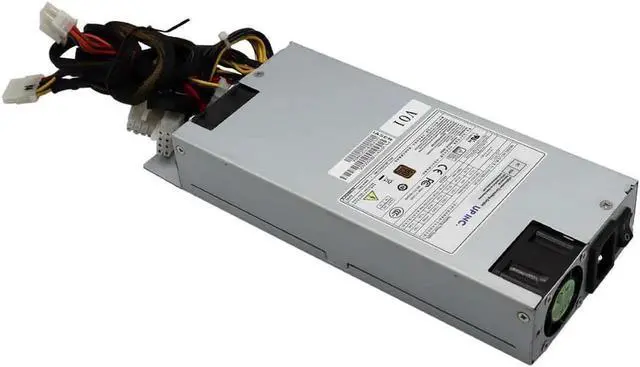

460W 1U IPC FSP460-701UH Server Power Supply

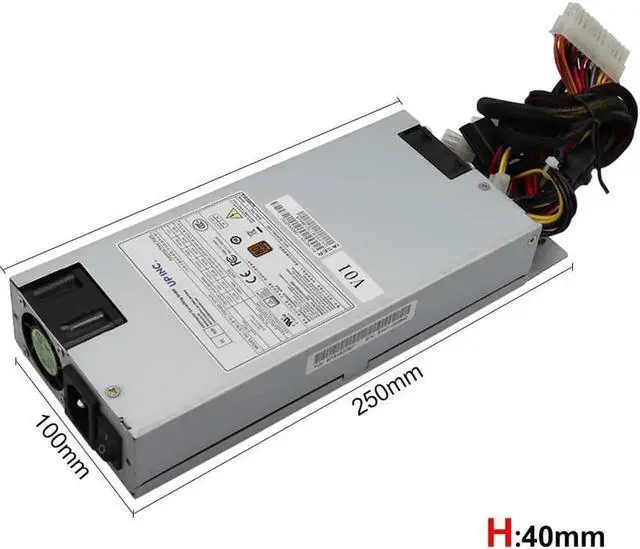

Dimensions : 220 x 100 x 40.5mm

Application : For standard, advanced server, NAS, storage, and industrial power system.

Watt : 460W

FSP460-701UH is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 460 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Output Voltage and Current Rating

Notes

5V, 3.3V, 12V, -12V will have the regulation to 10% when all load take off.

The 12V1 and 12V2 and 12V3 total output shall not exceed 35A

The +3.3V and +5V total output shall not exceed 130 watts.

The total output shall not exceed 460 watts
