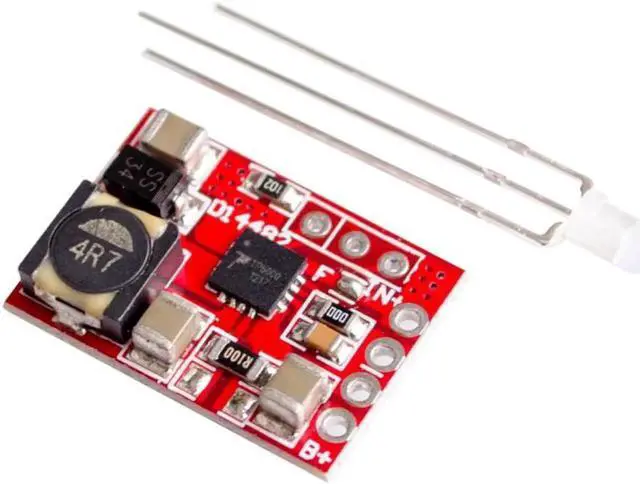

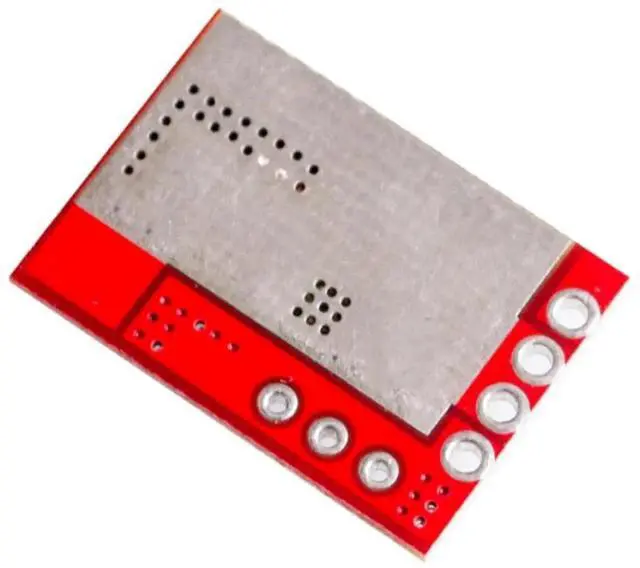

TP5000 4.2V/3.6V 1A Lithium Charging Board Charger Module

Origin:CN(Origin)

Condition:

Type:Voltage Regulator

Application:Computer

Supply Voltage:1

Dissipation Power:1

is_customized:Yes

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

Description:

1. PCB size:21.5*14.5*4.2mm

2. Input voltage: DC 4.5-9V(Recommended not to exceed 7V)

3. Output voltage: DC 4.2V/3.6V(default 4.2V)

4. Output current: 1A(Default max)

5. LED Indicator: Charging-Red/Green Flashing,Charged-Green

6. Features:Charging for Lithium (4.2V) and Lithium iron phosphate (3.6V)

7. Switch mode:

1>. F Welding point ON for Lithium and output 4.2V

2>. F Welding point OFF for Lithium iron phosphate and output 3.6V

8. Adjust output current(need to modify two resistance value on mark "SANYA"):

1>. Default weld 1pcs R100(0.1ohm) resistor and output 1A(max)

2>. Welding 1pcs 0.2ohm resistor next to R100 and output 1.5A(max)

3>. Welding 1pcs 0.1ohm resistor next to R100 and output 2A(max)

4>. Removed R100 and welding 1pcs 0.2ohm resistor on its place and output 0.5A

5>. It requires additional heat sink if output current more than 1A.
