X735 V3.0 Power Management Board with Fan Safe Shutdown for Raspberry Pi 4B/3B/2
- Intelligent and safe power management
- On-board button to control power on, reboot and safe shutdown
- Supports safe shutdown and full power off through software
- Integrated high-efficiency step-down DC-DC converter

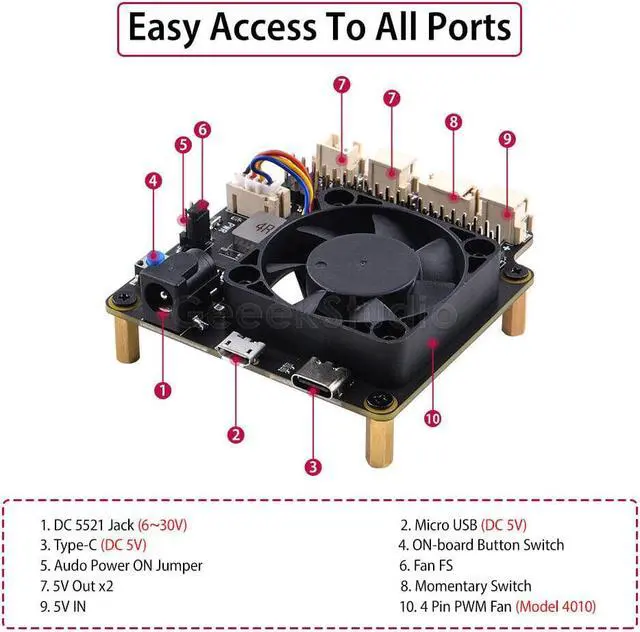

- Convenient power input : DC jack, Type-C connector , Micro-USB socket and XH2.54 connector
- Allows to power other devices via XH2.54 socket and the 40-pin header
- Allow using external momentary button and DIY your perfect case
- Programmable temperature and fan speed
- Reserved 40-pin stackable Header for Add-On Boards
- Works with all current models of the Raspberry Pi using a 40 pin header
- Fully compatible with X8 series storage boards to provide safe power management
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

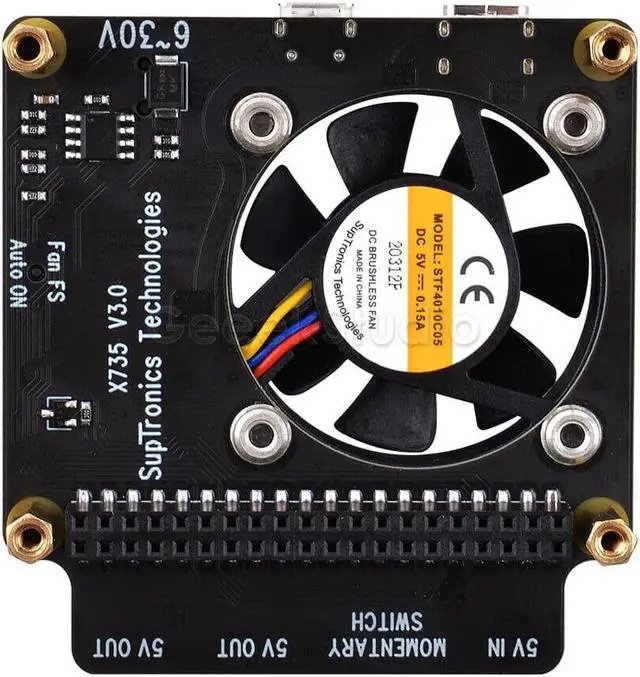

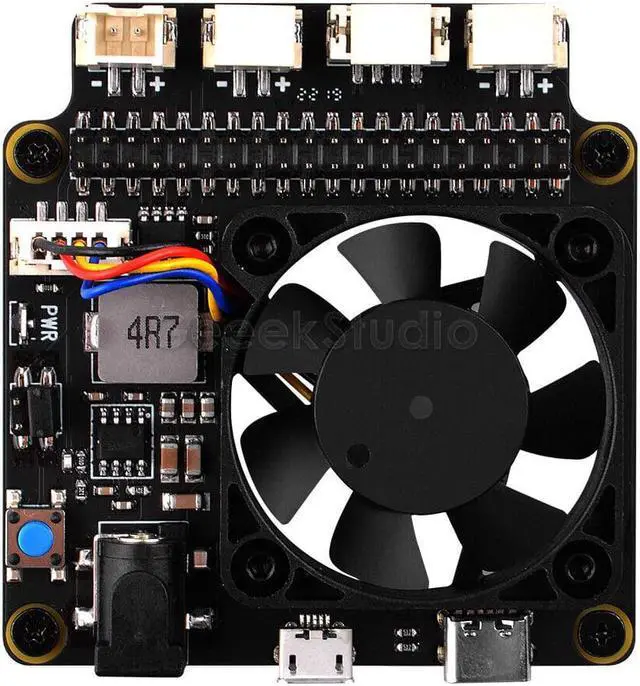

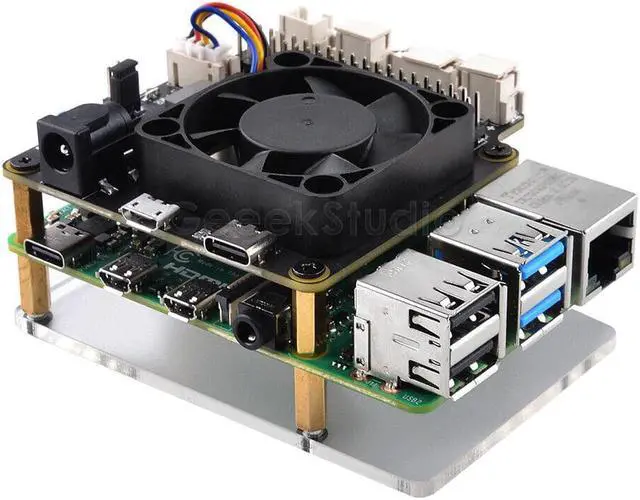

The X735 V 3.0 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40-pin header. It provides 6~30V wide operating input range, intelligent and safe power management, safe shutdown and full poweroff through software, an automatic temperature controlled PWM fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments. The X735 also reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications.
Operating System
Raspberry Pi OS
Safe shutdown function tested for Raspberry Pi official OS, other operating systems to be tested and advised
Package Includes
1 x X735 V 3.0 Board
8 x Screw M 2.5 *5mm
4 x M 2.5 Double pass copper Pillar
4 x M 2.5 Copper Pillar
1 x Jumper link
1 x Acrylic Panel
Technical Support
https: //wiki. 52pi. com/index. php? title=EZ-0105
Operating System
Raspberry Pi OS
Safe shutdown function tested for Raspberry Pi official OS, other operating systems to be tested and advised
Package Includes
1 x X735 V 3.0 Board
8 x Screw M 2.5 *5mm
4 x M 2.5 Double pass copper Pillar
4 x M 2.5 Copper Pillar
1 x Jumper link
1 x Acrylic Panel
Technical Support
https: //wiki. 52pi. com/index. php? title=EZ-0105
