URU4500 For Digital Persona U4500 Fingerprint Reader with USB Scanner SDK URU5000 USB Biometric Fingerprint Scanner

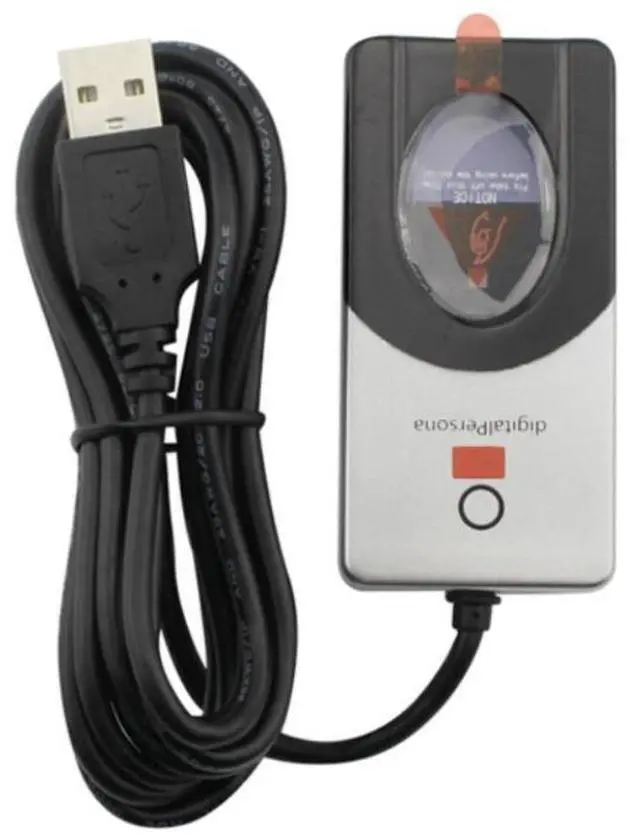

The U. are. U 4500 Fingerprint Reader is a USB peripheral perfect for individual desk top users, as well as multiple users in shared
environments. Its compact design conserves desk space in enterprises, and its professional, modern appearance looks elegant in
point-of-sale environments. The U. are. U 4500 Reader utilizes optical fingerprint scanning technology to achieve excellent image
quality, a large capture area and superior reliability. A silicone coating allows it to read a wide range of fingerprints accurately and
rapidly regardless of placement angle. The high-quality metal casing resists unintentional movement.

To use, simply place a finger on the reader window and the reader quickly and automatically captures and encrypts the fingerprint
image before sending it to the DigitalPersona® FingerJet biometric engine for verification. For superior user feedback, a red "flash"
indicates that a fingerprint image has been captured.
Applications:
Desktop PC security
Mobile PC security
Custom applications


Blue LED
Small form factor
Excellent image quality
Superior ESD resistance
Encrypted fingerprint data
Latent print rejection
Counterfeit finger rejection
Rotation invariant
Rugged
Works well with dry, moist or rough
Compatible with most U. are. U SDKs


Pixel resolution
512DPI
Supply Voltage
5.0V ±5% supplied by USB
Supply Current-scanning
< 100 mA (Typical)
Supply Current-idle mode
120 mA (Typical)
Supply Current-suspend mode
< 0.5 mA (Maximum)
ESD Susceptibility
>15 kV, mounted in case
Temperature, Operating
0 - 40 C
Humidity, Storage
20% - 90% non-condensing
Scan Data
8-bit grayscale
Standards Compliance
FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL
Weight
105 grams
Interface
USB 2.0 Full-speed High Power Device
SDK
Free
Operating system
Windows, Android, Java, Linux
