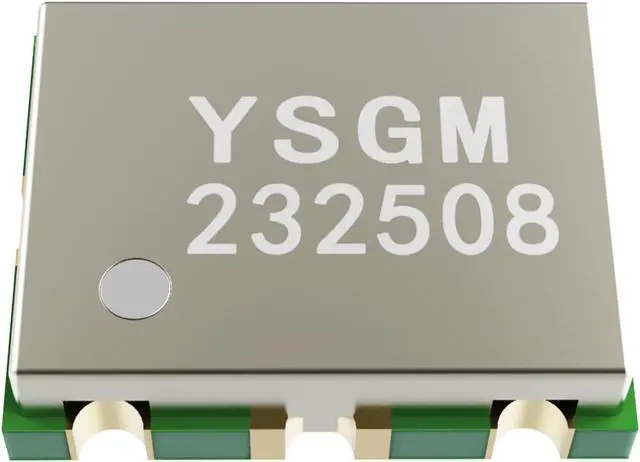

VCO Voltage Controlled Oscillator For LTE (2300MHz-2390MHz )&( 2400MHz-2483.5MHz ) With Buffer Amplifier
- YSGM232508 is a highly integrated VCO in a standard package size. It uses RF transistors with high cut-off frequency as oscillating tubes to output work
- High rate and good isolation. This VCO uses high stability oscillating circuit structure, high precision varactor diode and high output power RF triode
- Ensure stable starting waveform and high output power. The system is powered by 5V standard voltage, and the tuning voltage is up to 9V, so that broadband output can be achieved.
- YSGM232508 also integrates rectifier filter unit and RF output matching unit, requiring few peripheral components and good output power flatness, RF

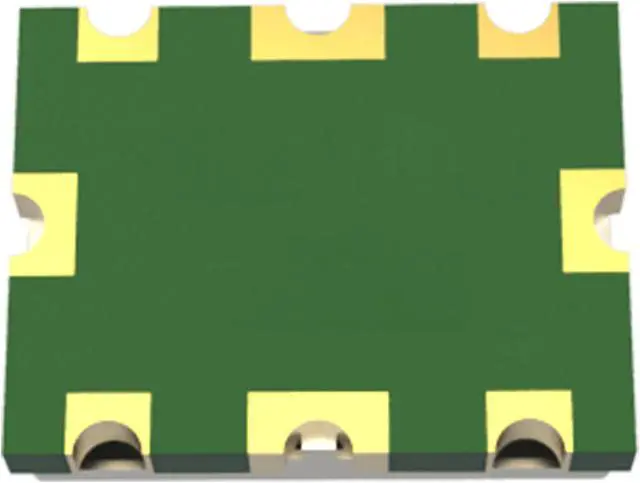

- The output end can be directly connected to 50 RF cable, easy to use. The device package adopts the universal package size of 7mm×9mm×2mm, which can be replaced directly
- Field of the same type of product.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description:
nominal tuning band: 2200 ~ 2500 MHZ @ n = 0.5 V to 4.5 V
output power: 8 DBM @ VCC = 5 v or higher
in-band flatness (BW 200 MHZ) or less: + / - 0.5 dB
nominal tuning band: 2100 ~ 2650 MHZ @ n = 0 v ~ 9 v
power supply voltage (VCC): 3 v ~ 9 v
working current: 15 ma ~ 30 ma
second harmonic suppression: - 30 or less DBC
harmonic suppression: three times - 35 DBC or less
few peripheral components 50 rf output impedance
7 mm x 9 mm x 2 mm general packaging size
Application field
IEEE 802.11 b/g/n point to point, point to multi-point wireless communication
communication jammer 2300-2320 MHZ band interference signal (unicom TD - LTE)
communication jammer 2320-2370 MHZ band interference signal (mobile td-scdma LTE)
communication jammer 2370-2390 MHZ band interference signal (telecom TD - LTE)
communication jammer 2400- 2483.5 MHz band interference signal ( 2.4 G WLAN)
nominal tuning band: 2200 ~ 2500 MHZ @ n = 0.5 V to 4.5 V
output power: 8 DBM @ VCC = 5 v or higher
in-band flatness (BW 200 MHZ) or less: + / - 0.5 dB
nominal tuning band: 2100 ~ 2650 MHZ @ n = 0 v ~ 9 v
power supply voltage (VCC): 3 v ~ 9 v
working current: 15 ma ~ 30 ma
second harmonic suppression: - 30 or less DBC
harmonic suppression: three times - 35 DBC or less
few peripheral components 50 rf output impedance
7 mm x 9 mm x 2 mm general packaging size
Application field
IEEE 802.11 b/g/n point to point, point to multi-point wireless communication
communication jammer 2300-2320 MHZ band interference signal (unicom TD - LTE)
communication jammer 2320-2370 MHZ band interference signal (mobile td-scdma LTE)
communication jammer 2370-2390 MHZ band interference signal (telecom TD - LTE)
communication jammer 2400- 2483.5 MHz band interference signal ( 2.4 G WLAN)
