SZHUASHI 100% New VCO Voltage Controlled Oscillator With Buffer Amplifier For 5G (3300MHz-3600MHz) Applications
- communication jammer 3300-3400 MHZ band interference signal (indoor 5 g)
- communication jammer 3400-3500 MHZ band interference signal (telecom 5 g)
- communication jammer 3500-3600 MHZ band interference signal (unicom 5 g)
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description

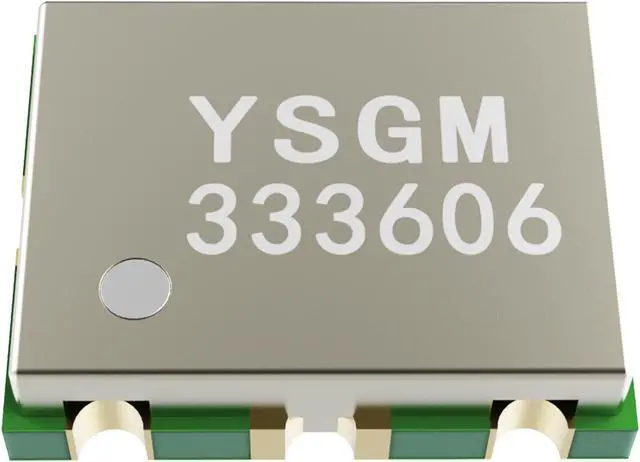

The YSGM333606 is a highly integrated VCO in a standard package size that uses a high cut-off frequency RF transistor as an oscillating tube to output work
High rate and good isolation. This VCO uses high stability oscillating circuit structure, high precision varactor diode and high output power RF triode
Ensure stable starting waveform and high output power. The system is powered by 5V standard voltage, and the tuning voltage is up to 9V, so that broadband output can be achieved.
YSGM333606 also integrates rectifier filter unit and RF output matching unit, requiring few peripheral components and good output power flatness, RF
The output end can be directly connected to 50 RF cable, easy to use. The device package adopts the universal package size of 7mm×9mm×2mm, which can be replaced directly
Field of the same type of product.
Characteristic parameter
nominal tuning band: 3200 ~ 3600 MHZ @ n = 0.5 V to 4.5 V
output power: 8 DBM @ VCC = 5 v or higher
in-band flatness (BW 200 MHZ) or less: + / - 0.5 dB
nominal tuning band: 3100 ~ 3800 MHZ @ n = 0 v ~ 9 v
power supply voltage (VCC): 3 v ~ 9 v
working current: 15 ma ~ 30 ma
second harmonic suppression: - 30 or less DBC
harmonic suppression: three times - 35 DBC or less
few peripheral components 50 rf output impedance

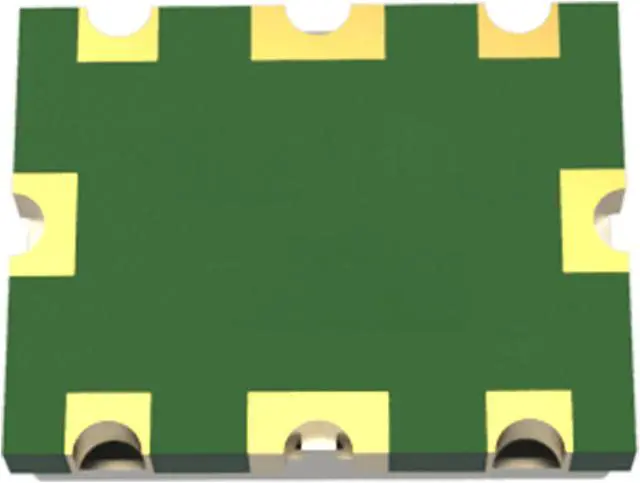

7 mm x 9 mm x 2 mm general packaging size
The YSGM333606 is a highly integrated VCO in a standard package size that uses a high cut-off frequency RF transistor as an oscillating tube to output work
High rate and good isolation. This VCO uses high stability oscillating circuit structure, high precision varactor diode and high output power RF triode
Ensure stable starting waveform and high output power. The system is powered by 5V standard voltage, and the tuning voltage is up to 9V, so that broadband output can be achieved.
YSGM333606 also integrates rectifier filter unit and RF output matching unit, requiring few peripheral components and good output power flatness, RF
The output end can be directly connected to 50 RF cable, easy to use. The device package adopts the universal package size of 7mm×9mm×2mm, which can be replaced directly
Field of the same type of product.
Characteristic parameter
nominal tuning band: 3200 ~ 3600 MHZ @ n = 0.5 V to 4.5 V
output power: 8 DBM @ VCC = 5 v or higher
in-band flatness (BW 200 MHZ) or less: + / - 0.5 dB
nominal tuning band: 3100 ~ 3800 MHZ @ n = 0 v ~ 9 v
power supply voltage (VCC): 3 v ~ 9 v
working current: 15 ma ~ 30 ma
second harmonic suppression: - 30 or less DBC
harmonic suppression: three times - 35 DBC or less
few peripheral components 50 rf output impedance
7 mm x 9 mm x 2 mm general packaging size
