Dual M.2 PCIe 4x Adapter for SATA or PCIe NVMe SSD with Heatsink, RIITOP M.2 SSD NVME (M Key) and SATA (B Key) 22110 2280 2260 2242 2230 to PCI-e x 4 Host Controller Expansion Card

Dual M. 2 to PCIe & SATA Adapter Card for B Key or M Key SSD
NOTE:
1. This adapter ONLY support M. 2 SSD. DO NOT support SATA3 SSD or any SATA devices!
2. The 7-pin SATA cable must be connected to motherboard if you want to read the M. 2 SATA SSD (Key B).
3. This adapter only support PCIe x4 / x8 / x16 slot. DO NOT support PCIe x1/ x2 slot.
4. If there is a exclamation mark after install the adapter, please ask for SSD supplier to supply the NVME driver for SSD.

dual m. 2 to pcie and sata adapter
Features:
1. One NGFF B Key and one NGFF M key sockets available.

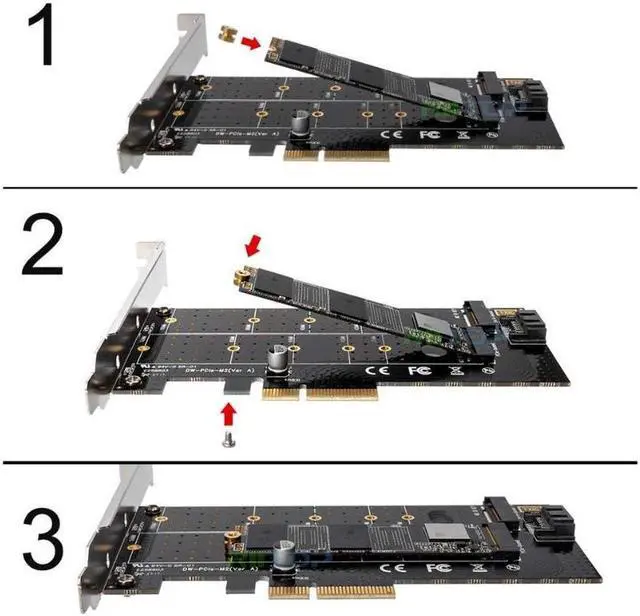

2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards.
3. Easy installation & no driver required.
4. No additional power required.

m. 2 to pcie and sata converter adapter card

Specifications

:

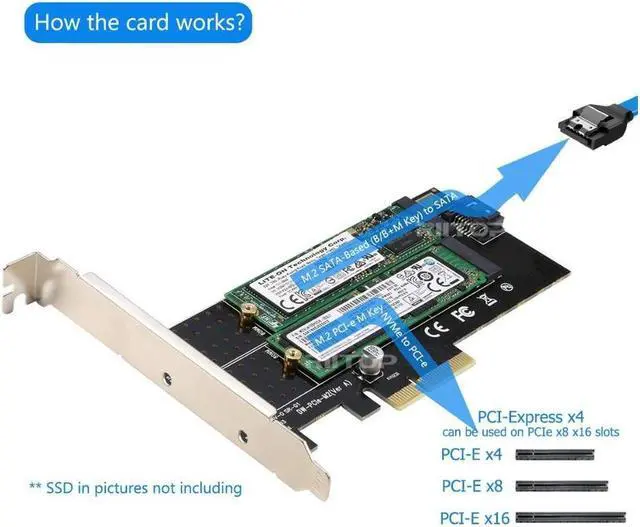

1. Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard.
2. Compliant with PCI Express M. 2 specification 1.0.
3. Compliant with SATA 3.0 specification for B key.
4. Compliant with PCI-E 4X 3.0 specification for M key.

m. 2 to sata, nvme to pci-e adapter card
Supports:
1. Supports data transfer up to 6.0G b/s.
2. Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD.

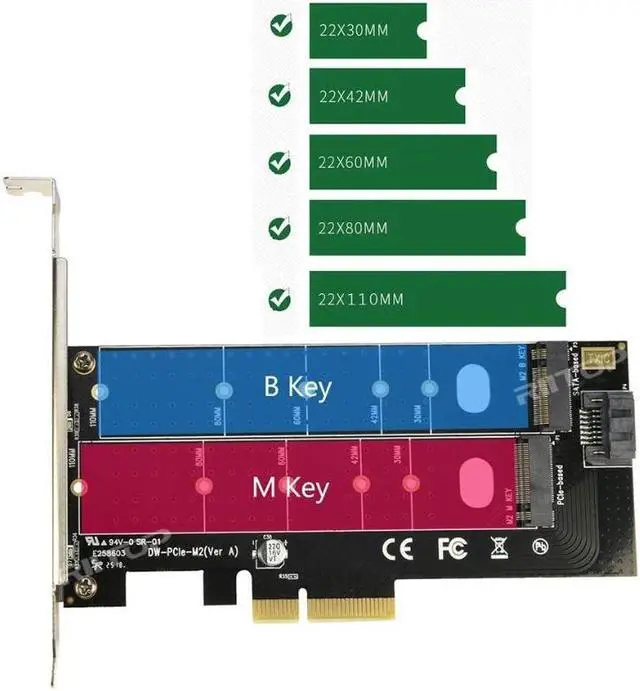

3. Supports 2230, 2242, 2260, 2280 & 22110 mm size NGFF SSD.

nvme to pcie 4x adapter card

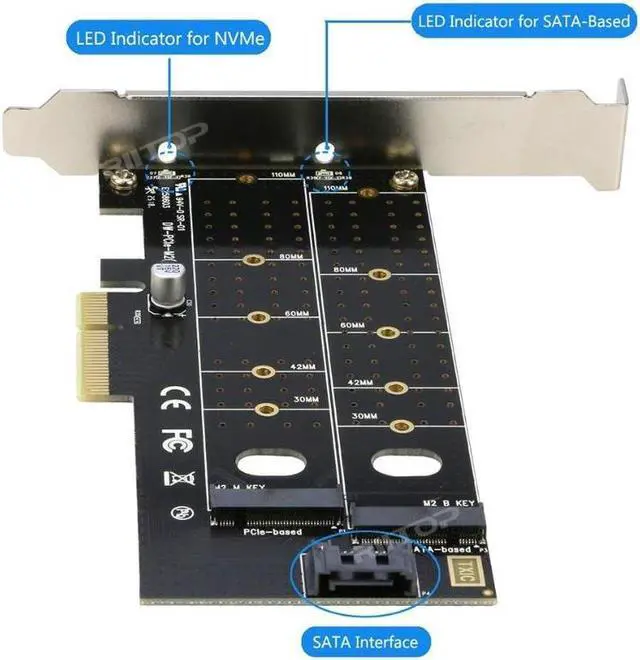

LED Indicator
The LED indicator will let you know the working status of SSD.

nvme ssd to pci-e x4 adapter
Package Contents:
1x Dual M. 2 to PCIe & SATA Adapter Card (SSD NOT Included).
1x Low Profile Bracket.

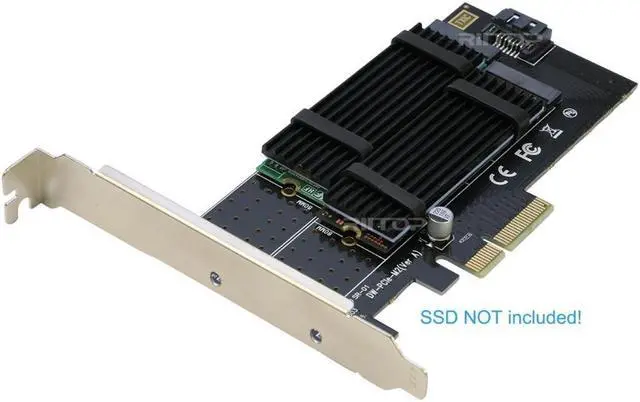

2x Heatsink.
Silicone pads.
Screws.
