High Performances MATEK H743-SLIM V3 Flight Controller with Built-in No Current Sensor Perfect for FPV Aircrafts
- H743-SLIM V3 Flight Control: This product is a high-performances flight control system that provides stable flight control and functional expansion for FPV aircraft.
- Built-in no current sensor: The flight control has a built-in no current sensor that can accurately measure current and provide real-time energy consumption information.
- Suitable for FPV aircraft: This flight control system is designed specifically for FPV aircraft and has good compatibility and reliability.
- Powerful processing power: Equipped with a high-performances H743 microprocessor, it has excellent computing and control capabilities, enabling fast response and precise flight control.
- Multifunctional design: In addition to basic flight control functions, it also supports multiple expansion interfaces, which can connect global positioning system navigation, remote control, images transmission and other modules to meet different flight needs.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
H743-SLIM V3 Flight Control: This product is a high-performances flight control system that provides stable flight control and functional expansion for FPV aircraft.
Built-in no current sensor: The flight control has a built-in no current sensor that can accurately measure current and provide real-time energy consumption information.
Suitable for FPV aircraft: This flight control system is designed specifically for FPV aircraft and has good compatibility and reliability.
Powerful processing power: Equipped with a high-performances H743 microprocessor, it has excellent computing and control capabilities, enabling fast response and precise flight control.
Multifunctional design: In addition to basic flight control functions, it also supports multiple expansion interfaces, which can connect global positioning system navigation, remote control, images transmission and other modules to meet different flight needs.
Lightweight and portable: The product adopts a compact design, lightweight and small size, easy to install on various FPV traversing machines without adding too much burden.

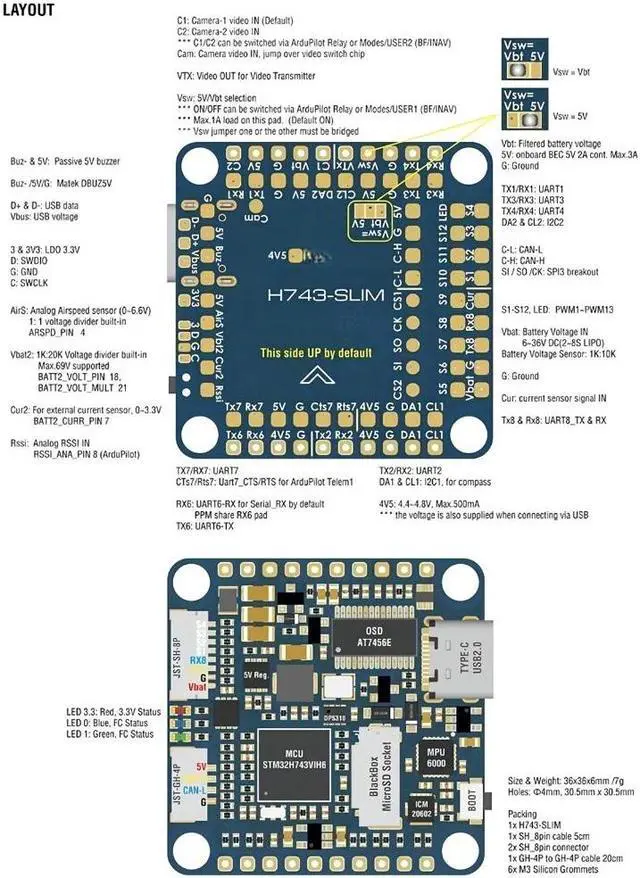

Specifications:
Material: Printed Circuit Board
Power:
Vbat Input: 6~36V (2~8S LiPo)
BEC: 5V 2A cont. (Max3A)
LDO 3.3V: Max200mA
No Current Sensor built-in
ADC Vbat2 pad supports Max69V (voltage divider: 1K:20K
Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot

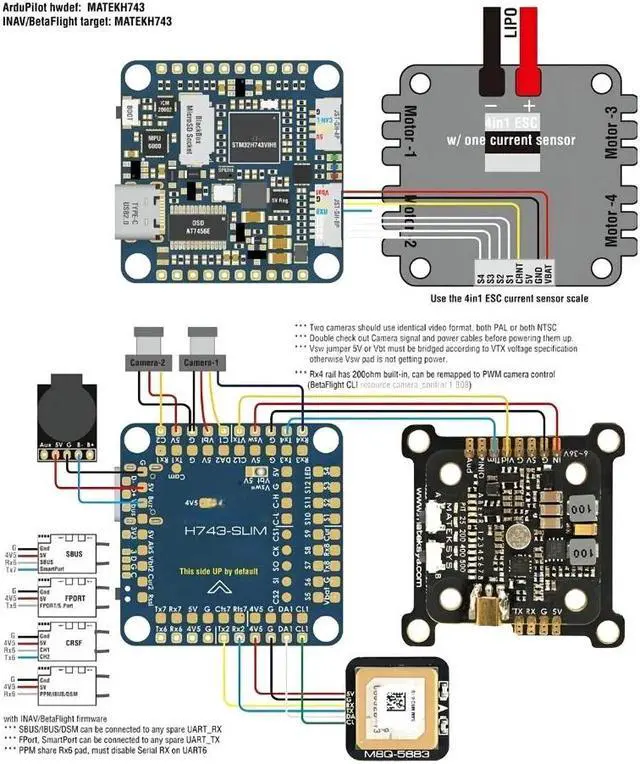

FC Firmware:
ArduPilot(ChiBiOS: MATEKH743
BetaFlight: MATEKH743
INAV: MATEKH743 (To be supported soon)

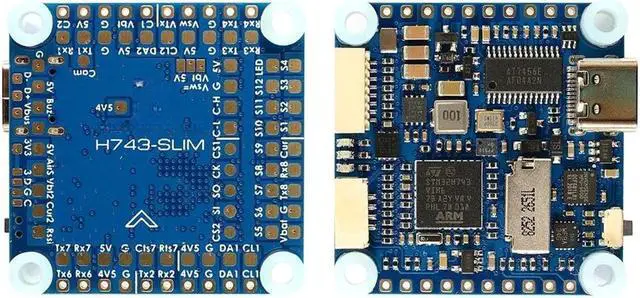

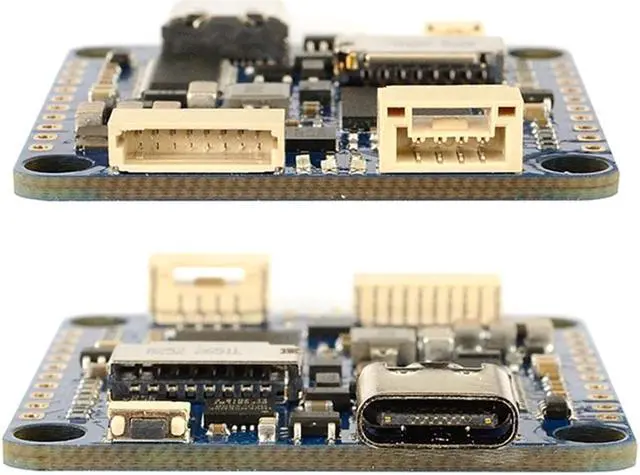

Physical:
Mounting: 30.5x30.5mm, 4mm with Grommets 3mm
Dimensions: 36x36x 5mm
Note:

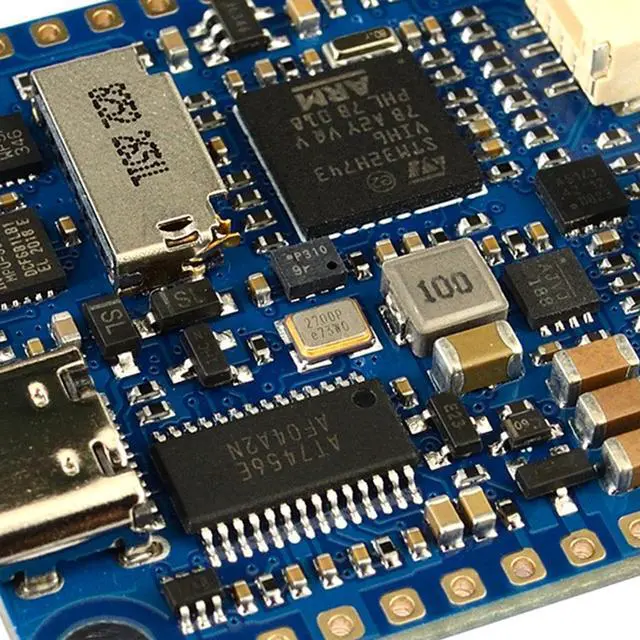

FC Specifications

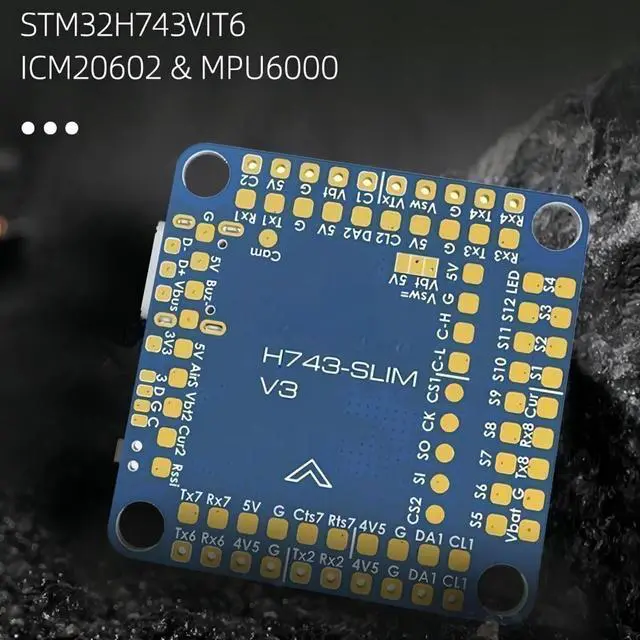

MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
IMU: MPU6000 (SPI1 & ICM20602 (SPI4
Baro: Infineon DPS310 (I2C2
OSD: AT7456E (SPI2
Blackbox: MicroSD card socket (SDIO)
7x Uarts (1,2,3,4,6,7,8 with built-in inversion.
13x PWM outputs(including LED pad
2x I2C
1x CAN
etc
Package includes:

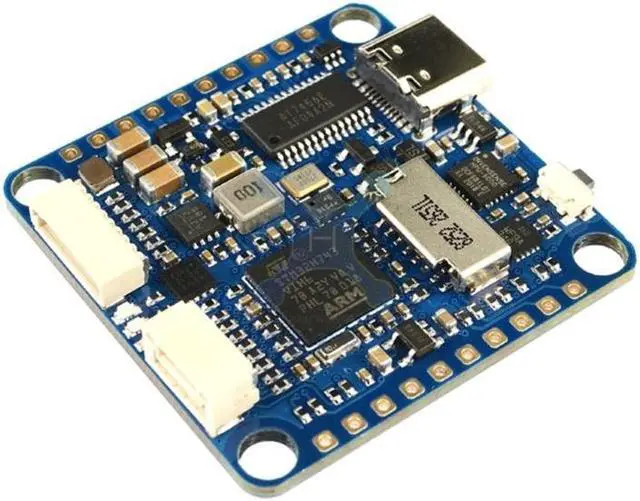

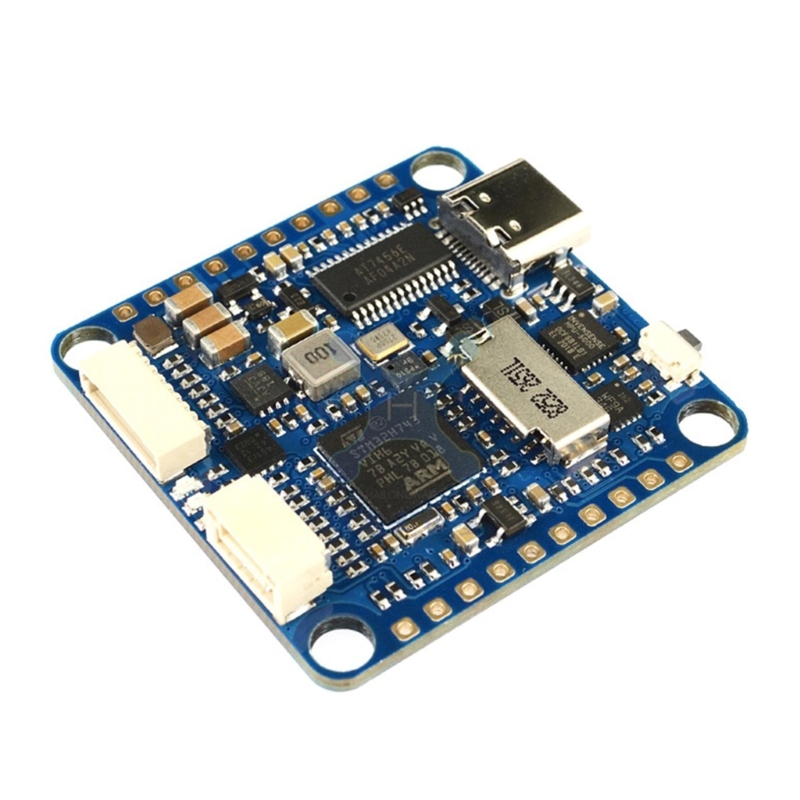

1x MATEK H743-SLIM V3 Flight Controller Board
