    F405 Flight Controller Board BLS50A 4 in1 ESC with OSD 16MB Black Box

    • Equipped with a 16MB black box, it can record, analyze, and replaying flight data.
    • Insert and use design, convenient for quick installation and use.

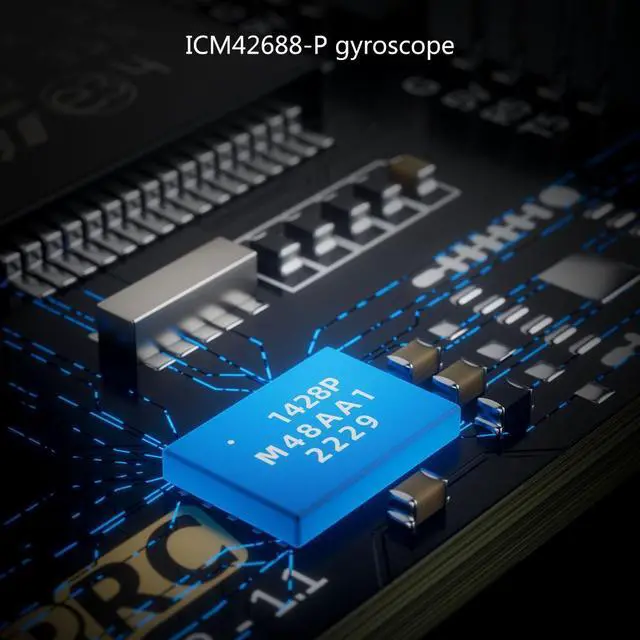

    • Equipped with 42688P gyro, providing a more stable flight controlling and control experience.

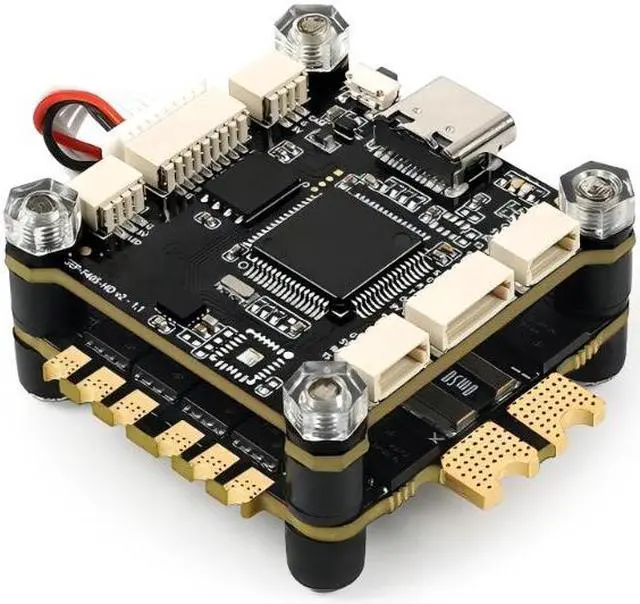

    • Stack designing save space and simplifies cable routing.
    • With highly performances and sensitive reaction speed, data recording function help users analyze flight performances and improve flight skill.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.



    Features:

    Equipped with a 16MB black box, it can record, analyze, and replaying flight data.

    Insert and use design, convenient for quick installation and use.

    Equipped with 42688P gyro, providing a more stable flight controlling and control experience.

    Stack designing save space and simplifies cable routing.

    With highly performances and sensitive reaction speed, data recording function help users analyze flight performances and improve flight skill.



    Specifications:

    Material: Printed Circuit Board

    Type: F405 Flight Controller BLS50A ESC Kit, Flight Controller, 4in1 ESC(optional)

    F405 v2 Flight Controller:

    MCU: STM32F405

    IMU: ICM42688P(SPI)

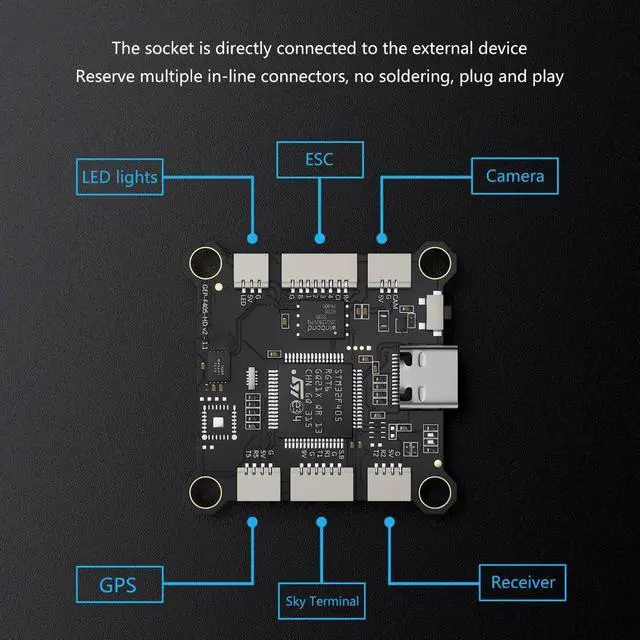

    Air Unit Connection: Direct plugging into Air Unit

    Black Box: 16M onboard

    USB Connector: USB C

    OSD: OSD with AT7456E chip

    BEC: 5V,9V double BEC

    Firmware Target: GEPRCF405

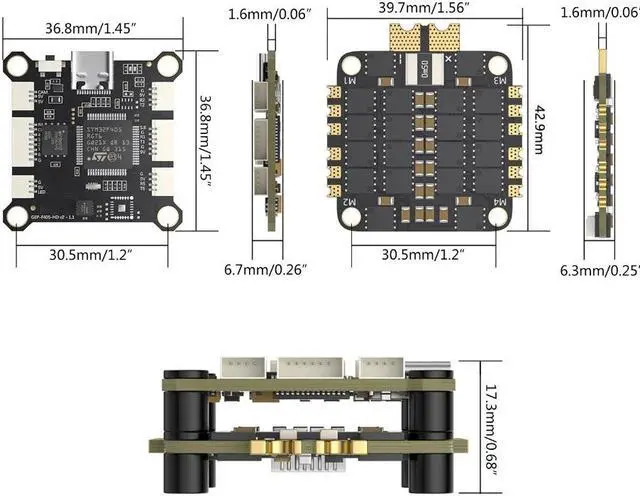

    Size: 36.8x36.8mm, hole 30.5x30.5mm,4mm hole becomes 3mm after use shock-absorbing circle

    UART: 6

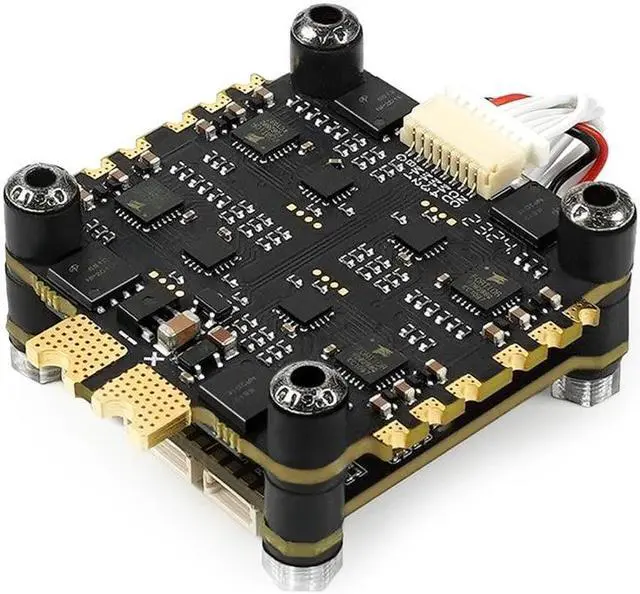

    BLS50A 4IN1 ESC:

    Galvanometer: Support

    Continuous Current: 50A

    Burst Current: 55A(5s)

    Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600

    Size: 42.9x39.7mm, hole 30.5x30.5mm,4mm hole becomes 3mm after use the shock-absorbing circle

    Target: G_H_30



    Note:

    Please allow 1-2cm errors due to manual measurement.

    Please allow for slight color differences due to different display resolution.



    Package includes:

    1x F405 Flight Controlller BLS50A 4in1 ESC STACK Kit

    or

    1x F405 Flight Controlller

    or

    1x 50A 4in1 ESC
