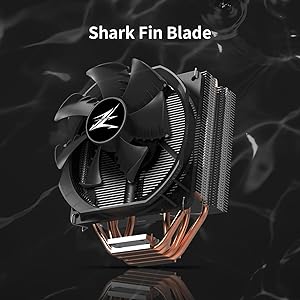

A shark fin blade which is optimized for air flow is applied, minimizing noises and vibration through a fixed air flow while increasing the air volume.
Fully compatible with the latest Intel's processors as well as AMD Ryzen. Power management technology for each processor is seamless, no compatibility issues.

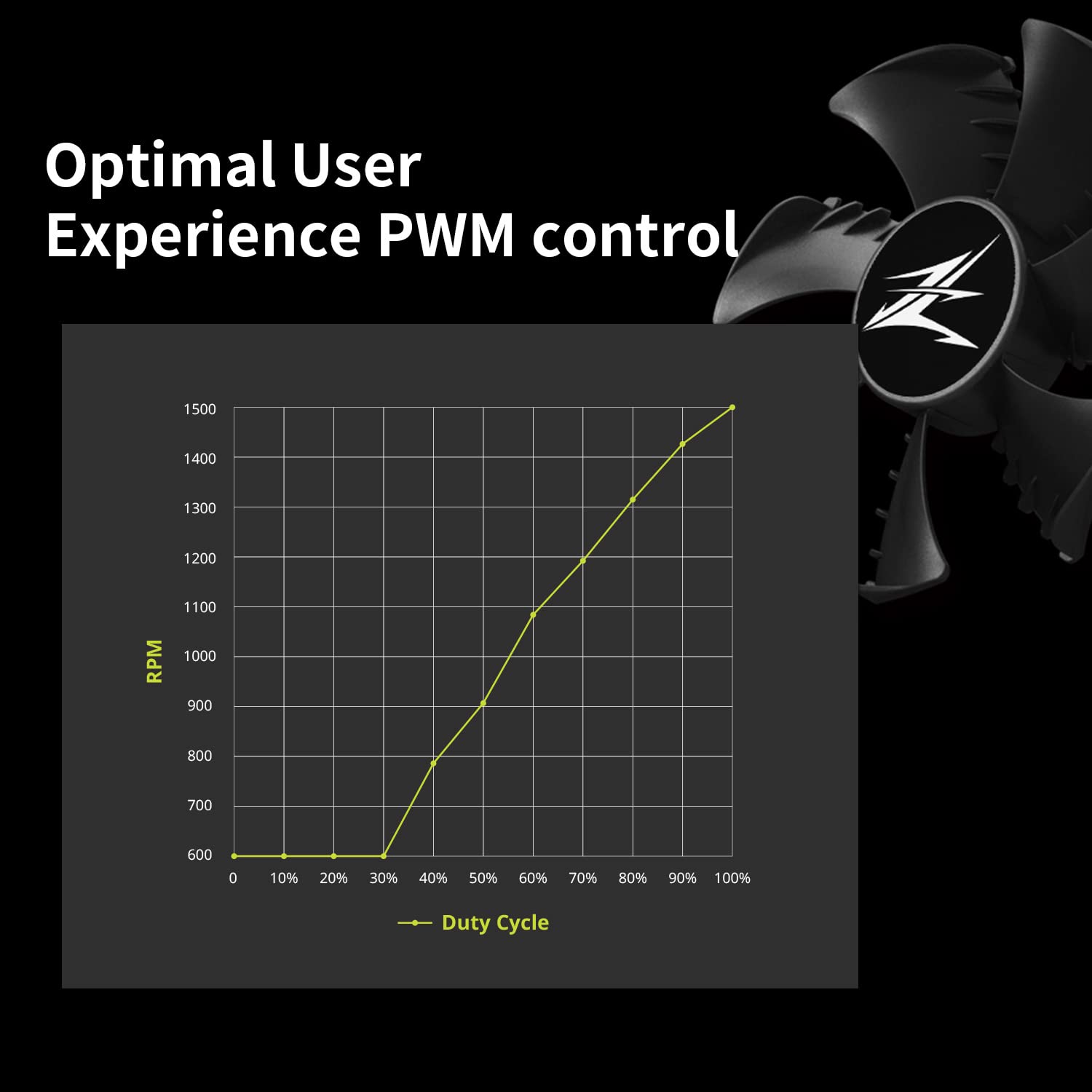

PWM controls automatic adjustments to fan speed according to the user's environmental noise level to provide optimal performance.

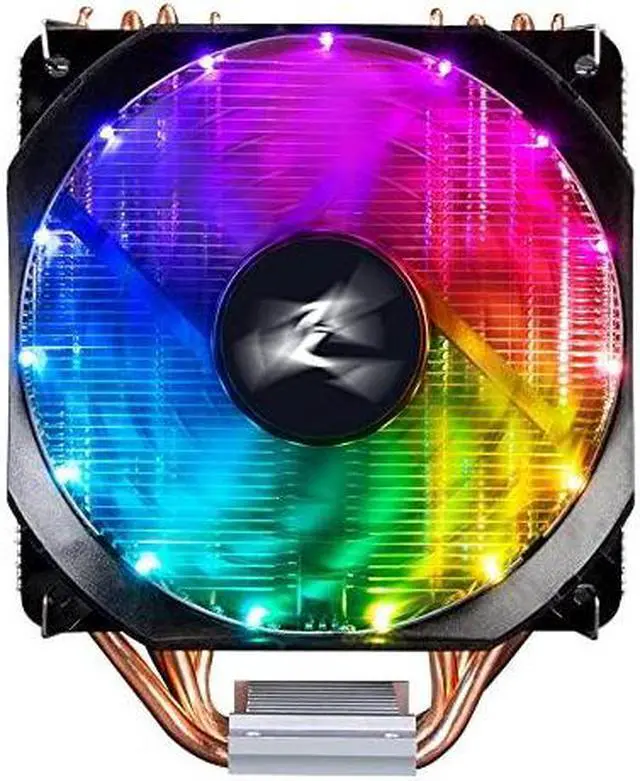

A 120mm PWM RGB LED fan is used, providing powerful cooling performance as well as an environment with a low noise level at 26dB(A).

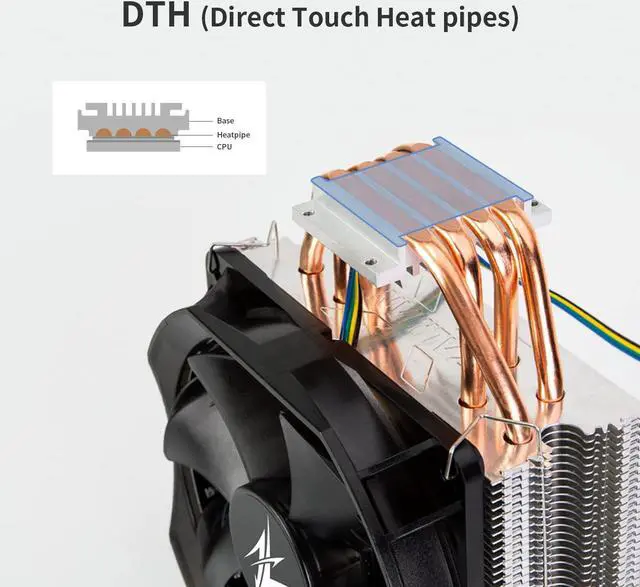

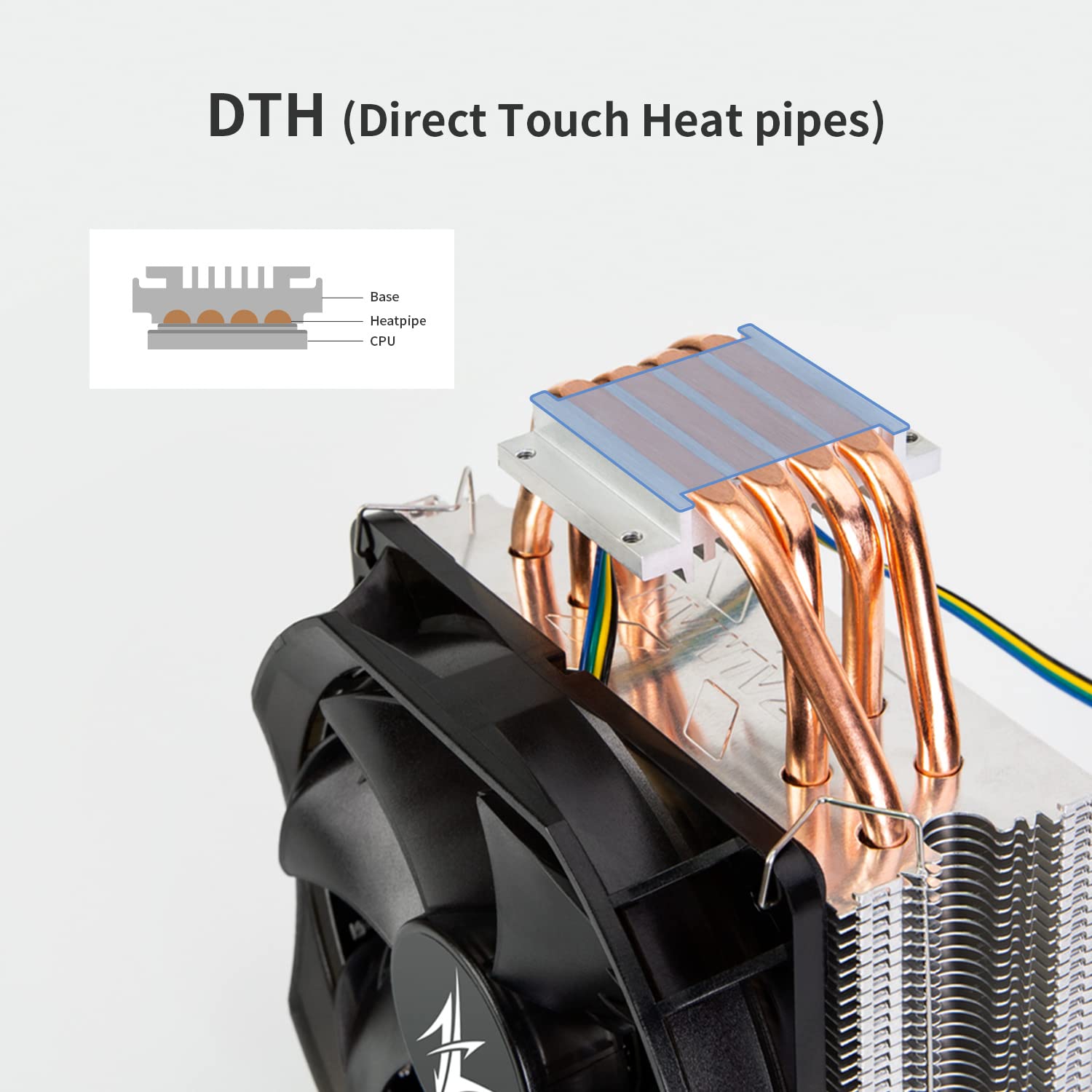

The DTH (Direct Touch Heatpipes) technology, which transfers heat from the CPU to a heatpipes directly, is used or minimizing thermal resistance and maximizing cooling performance.

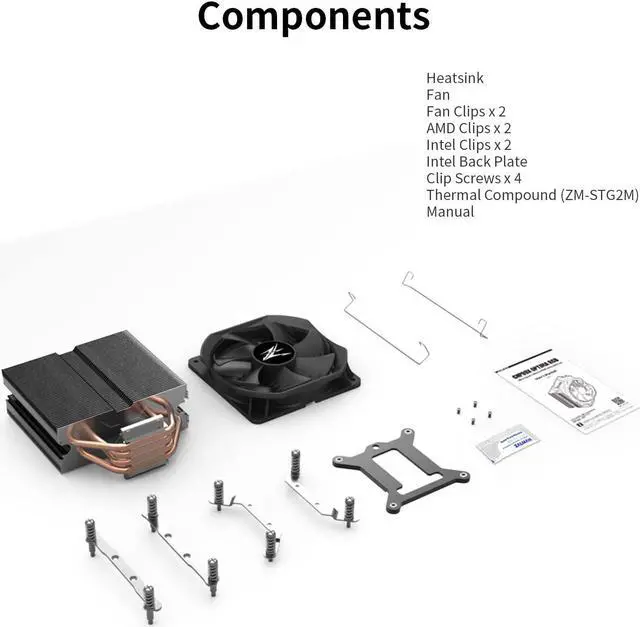

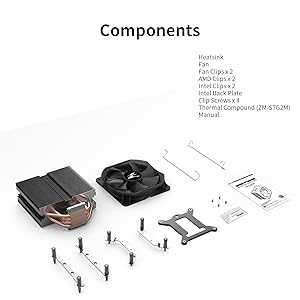

Heatsink, Fan, Fan Clips x 2, AMD Clips x 2, Intel, Clips x 2, Intel Back Plate, Clip Screws x 4, Thermal Compound (ZM-STG2M), Manual
| Dimension | 123 x 72 x 156 (H )mm, 530g |
|---|---|
| Materials | Pure Copper, Pure Aluminum |
| Heat Dissipation Area | 6,418 cm3 |
| Heat Pipe | 4 |
| TDP | 180W |
| Fan Dimensions | 120 x 120 x 25(H)mm |

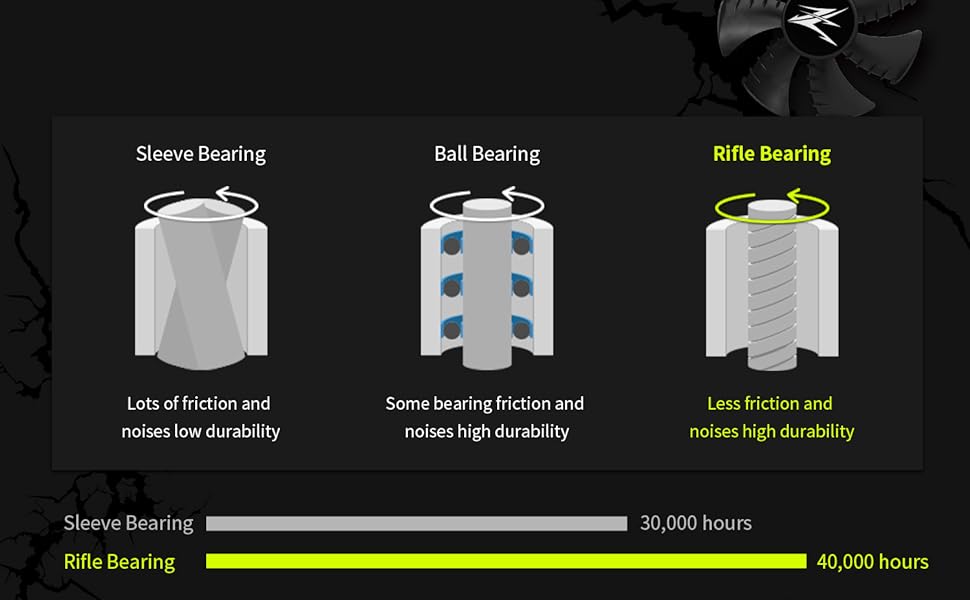

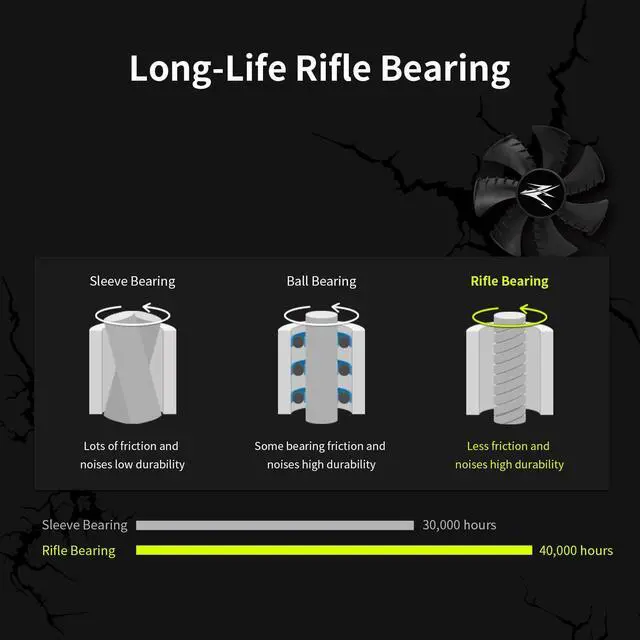

| Fan Bearing Type | Rifle Bearing |
| Fan Speed | 600~1,500RPM ±10% |
| Max. Fan Noise Level | 26.0dB(A) ±10% |
| Max. Fan Air Flow | 60.89CFM |
| Max. Fan Air Pressure | 1.6mmH2O |
| Fan Life Span | 40,000 hours |
| Fan Connector Type | 4-pin |
| Fan Control Method | PWM Control |
| Rated Voltage | 12V DC |
| Rated Current | 0.2A |
| Power Consumption | 2.4W |
| Socket Compatibility | Intel: LGA 1700 / 1200 / 115X / AMD: AM4 CPUs |
