NVMe to USB Adapter RTL9210 Chip M. 2 M2 SSD to to USB 3.1 Type A Card NGFF PCIe Based M Key Hard Drive Converter Reader
Feature:
The RTL9210 chip meands low power consumption. Compared with the old JMS583, the main control temperature will be lower, and the current consumption will be much smaller. That is to say, the high temperature in the use of NVMe SSD is relatively reduced, and the same device using the same SSD with JMS583 /RTL9210 chip, RTL9210 is about 200MB/s faster than JMS583.
Specification:

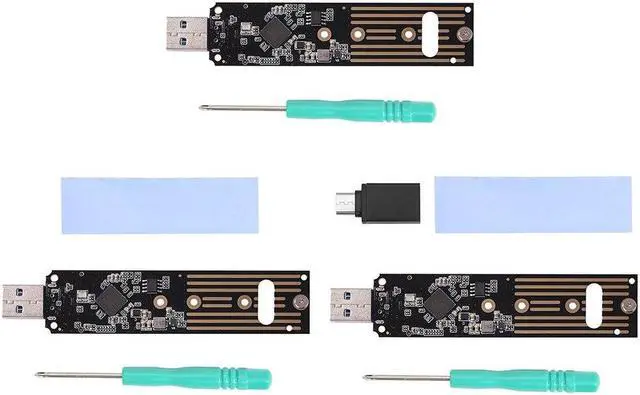

Includes: A (NVMe to USB Adapter + Screwdriver)
B (NVMe to USB Adapter + Thermal Pad + Screwdriver)
C (NVMe to USB Adapter + Thermal Pad + USB C to USB A Adapter + Screwdriver) (Optional)

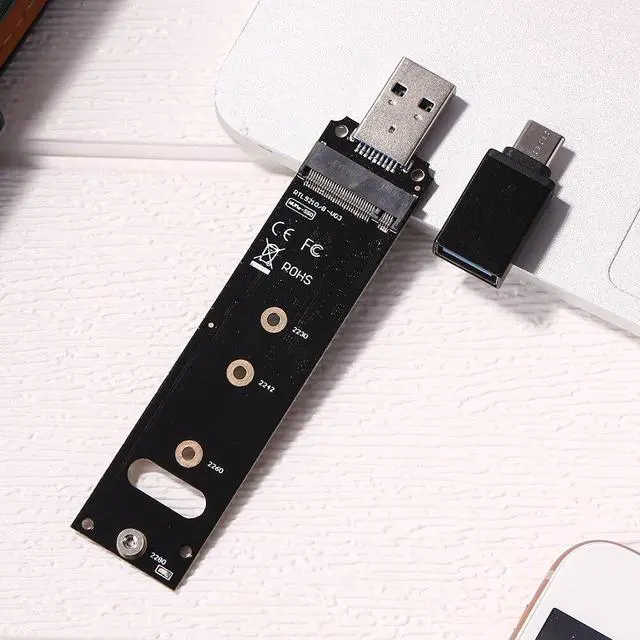

Supported hard drive: M. 2 NVMe SSD (Supports only PCIe x2 and PCIe x4 NVMe M. 2 SSD, does NOT support PCIe x2 and PCIe x4 AHCI M. 2 SSD, does NOT support B+M key SATA M. 2 SSD)
Chip: RTL9210
Output connector: USB 3.1 Type-A, backward compatible with USB 3.0 USB 2.0 (supports USB 2.0 and 3.0 interface, of course, you can connect 2.0 to 2.0 and 3.0 to 3.0 )
Read speed: 1000MB/s (for reference only, the actual reading speed is mainly related to SSD and equipment. The same equipment test results of different SSDs are different)
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

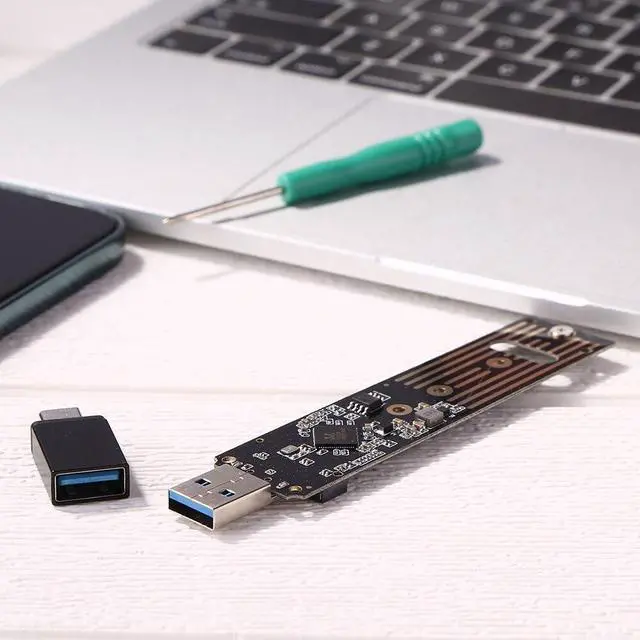

1 X NVMe to USB Adapter
1 X Thermal Pad (Optional)

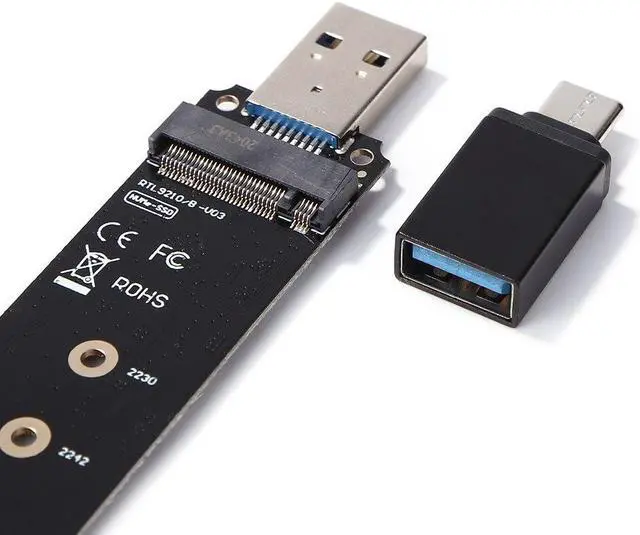

1 X USB Type C Male to USB 3.1 Type A Adapter (Optional)

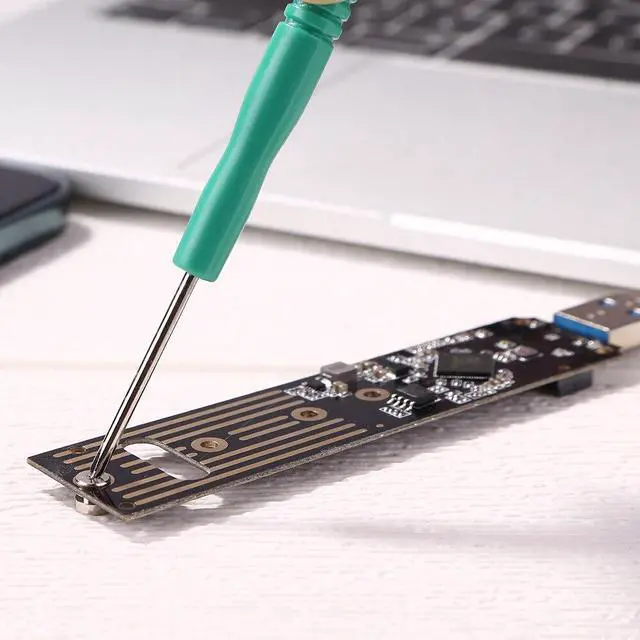

1 X Screwdriver
