Charging Test Module High Speed Charger Power Delivery Boost Module Type-C 100W Voltage Connetor Power Supply Accessories

PD Fast Charging Test Board 5-20V Adjustable Charging Test Module High Speed USB Type-C Voltage Connetor Power Supply Accesories
Feature:

1.
Versatile PD Tester: Supports various fast charging protocols such as PD 3.0 / 2.0 and BC 1.2, providing a maximum power output of 100W. It includes like over-temperature and over-voltage protection.

2.
Adjustable Voltage Range: Equipped with a convenient DIP switch, allowing voltage adjustment from 5V to 20V. This enables flexibility in testing different devices and their power delivery capabilities.

3.
Wide Compatibility: Compatible with PD 3.0 / 2.0 and BC 1.2 fast charging protocols, ensuring compatibility with a wide range of devices. Users can confidently test and verify the charging performance of various gadgets.
4.
USB Type-C PD Support: Specifically designed with USB Type-C PD support, enabling seamless connection and automatic switching for both forward and reverse insertion. This ensures hassle-free testing for devices with various input voltages between 4V and 22V.

5.
Reliable Power Delivery: With its support for high-power outputs and protective like over-temperature and over-voltage protection, this PD tester provides a reliable and safe means of evaluating and analyzing the power delivery capabilities of different devices.
Specification:
Origin: Mainland China
Input voltage: 4V~22V
Output voltage: up to 20V
Interface: Supports USB Type-C PD
Power: up to 100W
Product size: About 27 * 10 * 13mm/ 1.06 * 0.39 * 0.51 inch

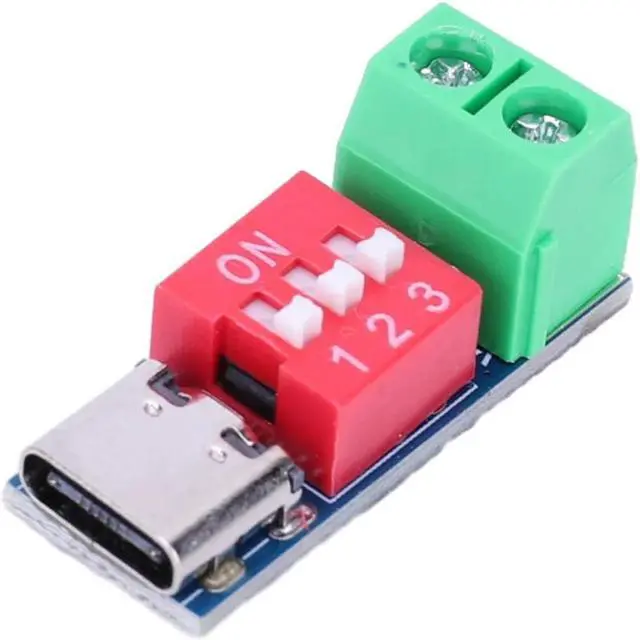

Instructions for use:
CFG1 corresponds to dial switch 1
CFG2 corresponds to dial switch 2
CFG3 corresponds to dial switch 3
Dial to the bottom as 1, and dial to the top as 0.
Flipping the switch can request an appropriate voltage based on the charger protocol
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x PD Fast Charging Test Board
