220V Digital Temperature Controller Thermostat Thermoregulator Aquarium Incubator Water Heater Temp Regulator(220v)

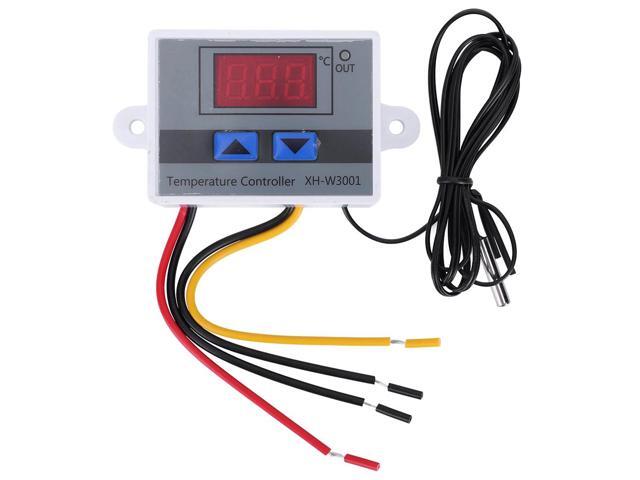

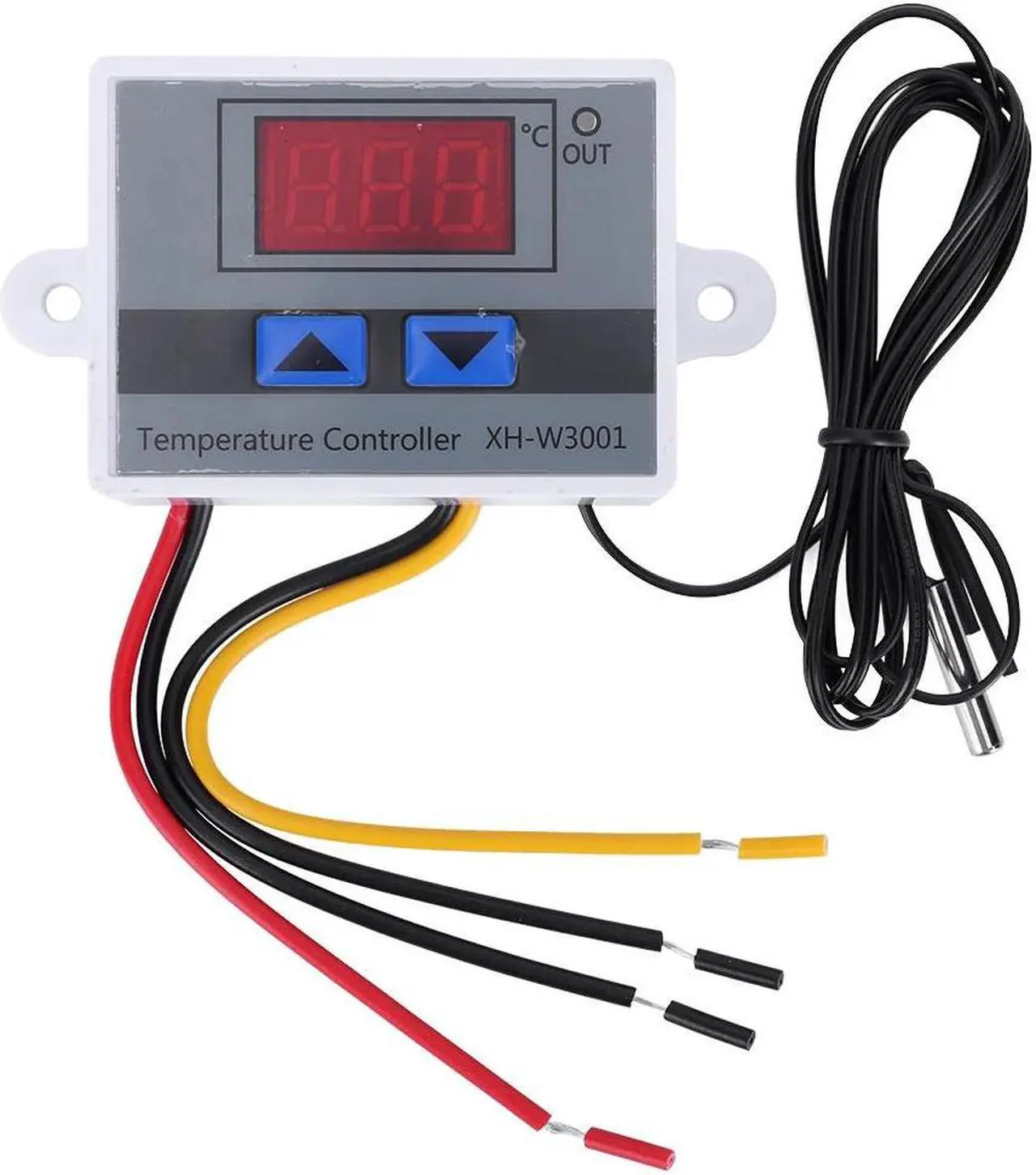

Digital Temperature Controller XH-W3001 Thermostat Control Switch 12V/24V/110-220V/220V Microcomputer Temperature Controller 10A
Specification:
Power supply voltage: 12V/24V/110-220V/220V (resistance capacitance voltage)
Temperature control range: -50-110 degrees
Temperature measurement range: -50-110 degrees
Temperature control accuracy: 0.1 degrees
Load power: 120/240/1500W
Measurement input: NTG10K waterproof probe L=1 meter
Output type: direct output
Output capacity: up to 10A
Installation hole spacing: 73mm (aperture 4mm)
External dimensions: 60 * 45 * 31mm/ 2.36 * 1.77 * 1.22 inch
Packaging weight: 47g
Operating instructions
Set startup temperature:
Press the up button once to display the startup temperature. Press and hold the up button for about 3 seconds, and the startup temperature number will flash. The desired temperature value can be set through the up and down buttons
Set stop temperature: Press the down button once to display the stop temperature. Press and hold the button for about 3 seconds to flash the stop temperature number. The desired temperature value can be set through the up and down buttons
How to Factory reset: When the power is on, press and hold the up and down keys at the same time, the Nixie tube displays 888, and then automatically jumps to the detection temperature, that is, Factory reset.
Heating mode setting method
Setting essentials: Start temperature Setting method:

1. Long press the up/down button, the startup temperature flashes, and set the startup temperature value through the up/down buttons

2. Long press the down button to stop the temperature flashing, and set the stop temperature value through the up and down buttons
Usage case: Control the water heater, stop heating at 65, and start heating again when the temperature drops back to 50 C. How to set it?
Step 1: Confirm that the working mode is heating mode, with starting temperature
Step 2: Long press the up/down button to flash the startup temperature. Use the up/down buttons to set the startup temperature to 50 C
Step 3: Long press the down button to stop the temperature flashing. Use the up and down buttons to set the stop temperature to 65 C, and the setting is complete!
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Digital Temperature Controller
