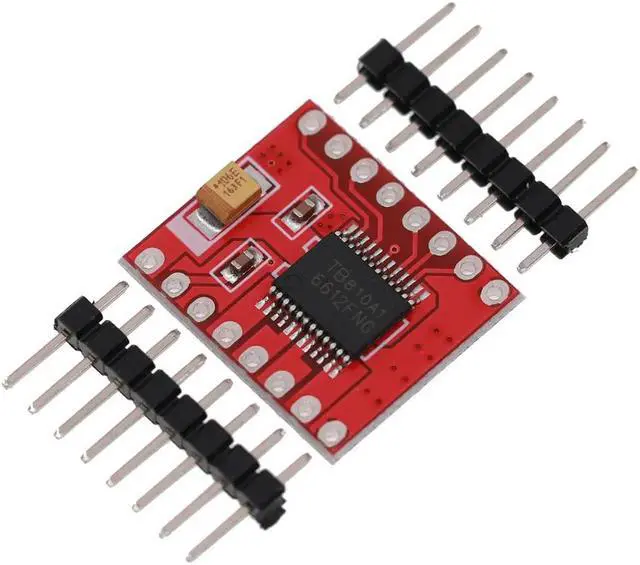

TB6612FNG Dual Motor Driver 1.2A TB6612FNG Microcontroller Better Than L298N Dual DC Stepper Peak 3.2A for Robot RC Car

TB6612FNG Dual Motor Driver 1.2A TB6612FNG Dual Motor Driver Module Better Than L298N Dual DC Stepper Peak 3.2A for Robot RC Car
Feature:

1.
High Power Output: The TB6612FNG dual motor driver provides a continuous current output of up to 1.2A and a peak current output of 3.2A, making it suitable for driving various types of DC motors, including stepper motors and brushless DC motors. It delivers high power output to meet the requirements of different motor applications.

2.
Dual Channel Design: This microcontroller features dual channel outputs, allowing it to simultaneously drive two motors. It is ideal for applications that require control of multiple motors, such as robots, remote-controlled vehicles, and automation devices. Enjoy the flexibility and versatility of controlling multiple motors with ease.
3.
PWM Speed Control: The TB6612FNG dual motor driver module supports PWM (Pulse Width Modulation) speed control, enabling you to adjust the motor speed by modifying the duty cycle of the PWM signal. This feature allows precise and customizable control over the motor's rotational speed.

4.
Low Voltage Protection: The dual DC stepper is equipped with low voltage protection to prevent battery over-discharge and damage to the motor driver circuit. When the input power voltage falls below a certain threshold, it automatically cuts off the current output to ensure the stability and safety of the system.

5. Compact Design and
Easy-to-Use: The TB6612FNG motor driver module comes in a compact package design, making it easy to integrate into various applications. Its small size allows for convenient installation and usage. Additionally, it features simple wiring and standard pin layout, facilitating easy connection and control for users.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Supply voltage: VM=15V max, VCC= 2.7 - 5.5V
Output current: Iout= 1.2A (average) / 3.2A (peak)
Standby control to save power
Usage of TB6612:
TB6612 is a dual drive, that is, can drive two motors
The following are the two motor control IO port
STBY port connected to the IO port of the microcontroller to clear all motor stop, set 1 through AIN1 AIN2, BIN1, BIN2 to control forward and reverse rotation
VM connects to power supply within 12V
VCC connects to 5V power supply
GND to ground
Drive 1 way
PWMA connects to the PWM port of the microcontroller.
Truth table:
AIN1 0 0 1
AIN2 0 1 0
Stop Positive Transmission Reverse
A01
AO2 Connect to both legs of motor 1
Drive 2-way
PWMB Connect to PWM port of microcontroller
Truth table:
BIN1 0 0 1
BIN2 0 1 0
Stop Positive Transmission Reverse
B01
BO2 Connect the two legs of motor 2
Product Size: 21.00 x 20.00 x 3.00 mm/ 0.83 x 0.79 x 0.12 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Dual Motor Driver
