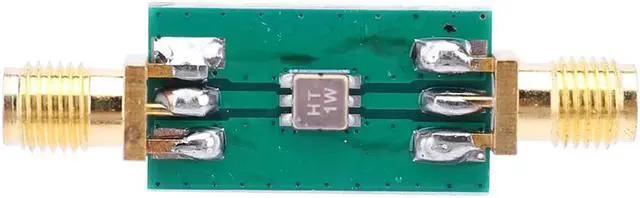

Band Pass Filter 915MHz Passive Filter Board 50Ohm Impedance Bandpass Frequency Filter Rejection 60dB

Bandpass Filter Module 403MHz/433MHz/915MHz/1090MHz Bandpass Frequency Filter 50Ohm Impedance SMA-K Interface
Feature:

1.
Efficient Impedance Matching: This band pass filter has a 50-ohm input and output impedance, allowing for optimal signal transfer and reducing reflections or loss of signal power. It ensures efficient impedance matching between various devices and systems.

2.
Convenient Interface Compatibility: Equipped with SMA-K (SMA female) input and output interfaces, this passive filter offers easy connectivity to SMA-equipped devices. It ensures seamless integration into existing setups without the need for additional adapters or modifications.

3.
No Power Supply Required: This bandpass filter module operates without the need for an external power supply. Its passive design means it can be conveniently used in various applications without the hassle of additional power requirements.

4.
Reliable Signal Filtering: This LC filter module effectively blocks unwanted frequencies while allowing signals within the desired frequency range to pass through. It ensures accurate filtering and helps eliminate interference, enhancing signal quality and performance.

5. Compact and Easy to
Use: With its compact size and user-friendly design, this passive filter board is easy to install and operate. It requires no complex setup or adjustments, making it suitable for both professionals and hobbyists.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: Band Pass Filter
Type (optional): 403MHz/433MHz/915MHz/1090MHz
Product size: 42 x 13 x 7mm/ 1.7 x 0.5 x 0.3 inch
Operating frequency: 4032.5MH z (403MHz), 43320MHz (433MHz), 9155MHz (915MHz), 109015MHz (1090MHz)
Insertion loss: 1.7 db (403MHz), 2.8 db (433MHz), 1.5 db(915MHz, 1090MHz)
Out-of-band rejection: 60dB@50MHz (403MHz), 40dB@50MHz(433MHz, 1090MHz), 45dB@50MHz (915MHz)
Input impedance: 50ohm
Output impedance: 50 ohms
Maximum input signal strength: 20dbm (100mw) (403MHz), 13dbm (20mw) (433MHz, 915MHz, 1090MHz)
Input connector: SMA-K (SMA female socket)
Output connector: SMA-K (SMA female)
No power supply required
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Band Pass Filter
