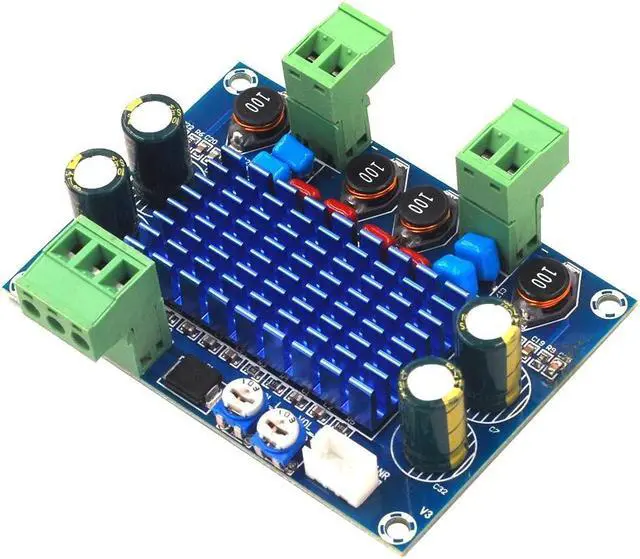

XH-M572 HIFI Power Digital Amplifier DC 5-28V Output TPA3116D2 Digital Power Amplifier Module Chassis Dedicated Plug-in

XH-M572 High Power Digital HIFI Power Amplifier Board 120Wx2 TPA3116D2 Digital Power Amplifier Module for DIY Audio Home Theater
Feature:

1.
High-Powered Amplifier Board: This amplifier board uses a TPA3116D2 chip and can output 120W * 2 of power with a DC 5-28V output range.

2.
Efficient Array Cooling System: The chip's heat is dissipated through a staggered channel convection cooling system that increases heat dissipation efficiency.

3.
High-Efficiency Stereo Digital Amplifier: The TPA3116D2 chip is a digital amplifier chip with over 90% power efficiency and low idle loss characteristics, resulting in minimal heat generation.

4.
Audiophile-Grade Capacitor: The metalized polyester film capacitor provides high pulse strength, reliability, and excellent self-healing properties.

5.
Quality PCB Design: The circuit board layout is attractive, and it uses SMT technology with a double-layer PCB, featuring few plugin soldering points. Plus, it has detachable terminals to ease the process of aging terminal replacement, which doesn't require desoldering unlike other types of terminals.
Specification:
Origin: Mainland China
Product model: XH-M572
Chip model: TPA3116
Input voltage: DC 8-28V
Output power: 120W * 2
Output impedance: 4-8 ohms
Appearance size: About 83 * 60 * 25mm/ 3.26 * 2.36 * 0.98 inch
Product weight: 65g
Instructions for use:

1. Connect the power input end to an 8V-28V power supply, and it is recommended to supply a peak current of 6A for DC24V. The maximum output power can reach 120W per channel.

2. Link the audio input end to the audio source, such as MP3 player, mobile phone, computer, etc; It is recommended to connect the output end of the front power amplifier board.

3. Connect two audio output terminals to two speakers respectively. It is recommended to connect two professional stage speakers with a capacity of over 200W to achieve its desired effect.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Amplifier Board
