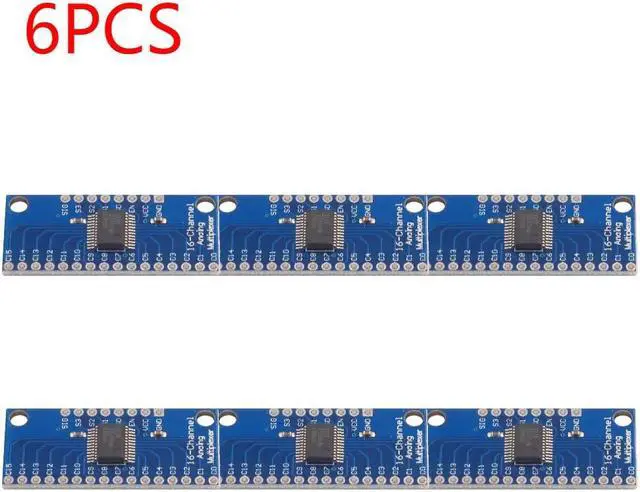

CD74HC4067 Analog Digital Multiplexer Breakout Board Module CMOS Precise 16-Channel for Electronic Components

CD74HC4067 Analog Multiplexer Selector Module Mutual Convert Analog Digital MUX Breakout Board CMOS Precise 16-Channel for Electronic Components
Features:
1.
Versatile: This breakout board features the highly useful CD74HC4067, a high-speed CMOS analog multiplexer/demultiplexer with 16 channels. It acts like a rotary switch, internally routing the common pin (SIG) to one of the 16 channel pins (CHA
Nxx).
2.
Optimal Performance: This multiplexer is designed to handle both digital and analog signals, making it versatile for various applications. However, please ensure that the voltage of the signals does not exceed the specified limit (VDC) to maintain optimal performance.
3.
Bi-Directional Operation: The analog digital multiplexer can be controlled by connecting 4 digital outputs to the designated chip address pins (S0-S3). By sending the binary address of the desired channel (refer to the datasheet), you can easily select and route signals. This feature allows you to connect up to 16 sensors to your system using only 5 pins.
4.
Compatible: Apart from analog and digital signals, this breakout board module also supports the transmission of TTL-level serial data between multiple devices. You can use it to route RX (receive) and TX (transmit) lines from a microcontroller to up to 16 devices. By using multiple boards, you can create similar arrangements for I2C, SPI, and other protocols.
5.
Low Resistance & Low Leakage: The internal switches of this expander module are bidirectional, allowing bi-directional signal flow. They have low resistance, low leakage, and support voltage between ground and VDC. Additionally, the switching is designed to prevent interference. The board also features an enable pin that completely disables the common pin (all switches) when driven high, providing additional control and convenience.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: Breakout Board Module
Analog Signal Input: C0-C15 16 Channels
Analog Output: Dig
Channel Control: S0-S3
Size: 41*17*3mm/ 1.61 * 0.67 * 0.12 inch

1. This is a very useful breakout board for the 16-channel analog/digital multiplexer/demultiplexer CD74HC4067.

2. The chip is like a rotary switch - it internally routes the common pin (SIG) to one of the 16 channel pins (CHA
Nxx).

3. Suitable for both digital and analog signals (voltage cannot be higher than VDC).

4. The connection works in both directions.

5. To control it, connect the 4 digital outputs to the selected chip address pins (S0-S3).
6. and send the binary address of the channel you want (see data sheet for details).

7. This allows you to connect up to 16 sensors to your system using only 5 pins.

8. Since the multiplexer/demultiplexer also works with digital signals, you can use it to connect up to 16 sensors to your system via a pipeline.
You can use it to pipe TTL-level serial data to and from multiple devices.
9. TX lines from the microcontroller to the RX lines of up to 16 devices.

10. By using multiple cards, you can create a similar arrangement for I2C, SPI, etc.

11. Internal switches are bi-directional and support voltages between ground and VDC.

12. It has low resistance, low leakage, and switches off before on to prevent interference.

13. The board also destroys the chip's enable pin, which will completely disable the common pin (all switches) when driven high.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Analog Digital Multiplexer
