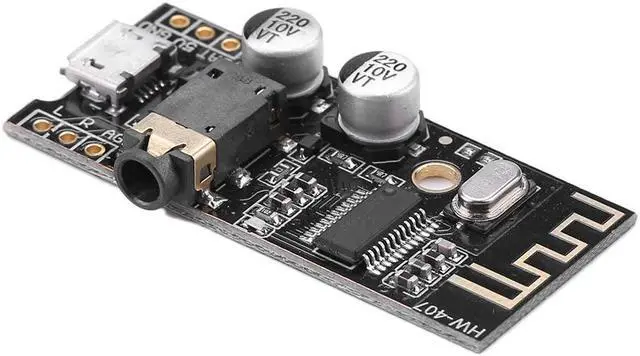

Circuit Board Module Dual-channel Stereo Playback Lossless Decoder HiFi Board DIY Modification Accessories

Description:

1. This product is a low-power Bluetooth-compatible design scheme. It supports the latest Bluetooth-compatible 4.2 transmission. Dual-channel stereo non-destructive playback.

2. After the module is connected to bluetooth, Bluetooth-compatible wireless transmission can be realized quickly, which is very convenient. In the open environment, the Bluetooth-compatible connection distance can be up to 20 meters.

3. Widely used in various Bluetooth-compatible audio reception, various audio DIY modification, convenient and fast.
Specification:
Product model: HW-407
Working Voltage: DC 3.7 ~5V
Output Load: Earphone
Product size: 45*20*8mm/ 1.77 * 0.78 * 0.31 ''
Packing weight: 4g
Functional Description:
1. Bluetooth-compatible V 4.2 version supports Bluetooth-compatibleauto-link technology, WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual-channel output.

2. When the module is powered on, the mobile phone searches for theBluetooth-compatiblename HW-407, which can play music when connected to bluetooth.

3.
Modular blue indicator:
When Bluetooth-compatibleis not connected, the indicator fast flashes.
When Bluetooth-compatibleis connected, the indicator lights are always on.
When Bluetooth-compatibleis playing, the indicator lights slow flashes.

4.
Power supply: It can be directly powered by 5V of MICRO USB Android line, or it can be connected to 5V power supply or 3.7V lithium battery. Note that 5V and 3.7V power supply interfaces are different. 5V is connected to 5V and GND, and 3.7V lithium battery is connected to VBAT and GND.
Note:
Please allow 1-2mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
1 X Wireless Bluetooth-compatible Audio Module
