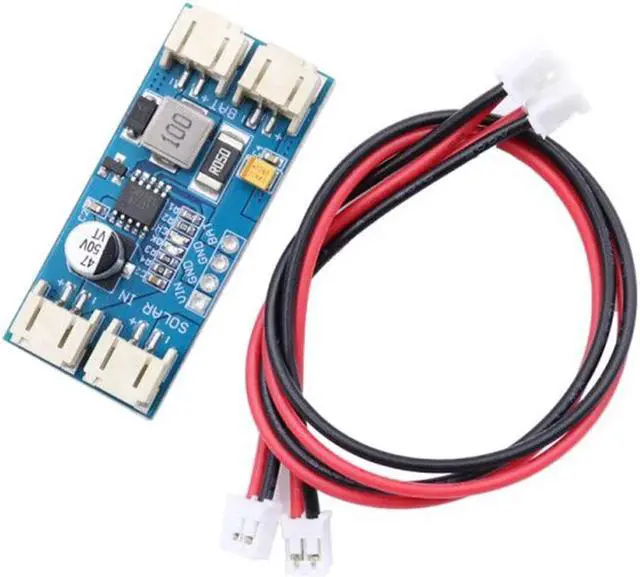

12V Solar Panel Module 3.7V 4.2V CN3791 MPPT Battery Charger Module 2pin PH2.0/JST Replacement Equipment for Lithium Battery

CN3791 Lithium Battery Charging Module 3.7V 4.2V MPPT 12V Solar Panel Module 2pin PH 2.0 /JST 300KHz Equipment for Lithium Battery
Feature:

1. Maximum Power Point Tracking (MPPT)
Solar Charge Controller: The MPPT solar charger allows you to get the maximum amount of energy from your solar panel or photovoltaic device and store it in a rechargeable lithium battery.

2. Easy to
Use: Simply plug the solar panel into one side of the solar charger and the battery into the other side to start charging.

3.
Automatic MPPT Functionality: The CN3791 power tracking battery charging circuit can automatically track the maximum power point of the solar panel even as light conditions change, allowing you to maximize the output of your solar panel without worrying about worst-case scenarios.

4.
Comprehensive Battery Charging Management: The solar charger is designed to charge individual polymer lithium-ion batteries with a load that is parallel to the battery. It comes with four 2-pin JST/PH 2.0 connectors already installed.

5.
Flexible Charging Settings: The solar charger has a constant voltage charging voltage of 4.2V 1%, a charge current of up to 2A, and PWM switch frequency of 300KHz. The constant current charging current is set by an external resistor, and it also features trickle charging for deeply discharged batteries and automatic recharging. The charging status and charging completion status are indicated visually.
Specification:
Origin: Mainland China
Input voltage: 12V
Output voltage: nominal 3.7V full stop voltage 4.2V lithium battery single series lithium battery charging management
Interface: 2Pin PH 2.0 /JST
Product weight: 7g
Product size: About 45 * 20 * 9.5 mm/ 1.77 * 0.78 * 0.37 inch
Tips: This module has three input voltages of 12V, corresponding to the working voltage (nominal voltage) of the solar panel of 12V. The CN3791 MPPT Solar Charger 12V should be paired with a solar panel with a working voltage of 12V.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Charging Module
