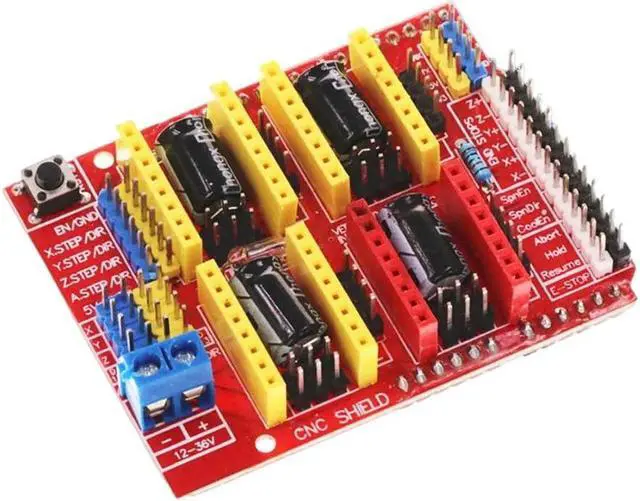

A4988 Driver CNC Shield Expansion Board IO Port Driver Expansion Board Convenient To Use for Engraving Machines 3D Printers
Feature:

1.
High Quality: This expansion board is made with high-quality materials and manufacturing processes, ensuring its reliability and durability.

2.
Multi-Functional: This board can be used as an engraving machine or 3D printer driver expansion board, making it a versatile tool for a wide range of applications.

3. Easy to
Use: With four slots for A4988 stepper motor driver modules (not included), this driver expansion board can drive up to four stepper motors. Each motor only requires two IO ports, allowing for easy management of up to three stepper motors using just six IO ports.

4.
Compact Design: The compact design of this board allows for stepper motors to be connected to either a four-pin connector or soldered directly onto the board, providing flexibility in assembly options.

5.
Affordable Solution: This CNC shield expansion board is an affordable solution for anyone looking to build their own engraving machine or 3D printer, making it perfect for DIY enthusiasts and makers.
Specification:
Net weight: 29g
Size: approximately 68 * 55mm/ 6.68 * 2.16 in
Introduction to the Corresponding Relationship between Arduno and Module IO Ports
The basic control pins of the stepper motor are required, and other pins are only used in engraving machines or 3D printers. We will not explain them in detail here, and the IO correspondence is shown in the figure above.
Arduno - Expansion Board
8- EN (stepper motor drive enable end, effective at low level)
7- Z. DIR (Z-axis direction control)
6- Y. DIR (Y-axis direction control)
5- X. DIR (direction control of the X-axis)
4- Z. STEP (Z-axis step control)
3- Y. STEP (Y-axis step control)
2- X. STEP (step control of X-axis)
The following is a simple stepper motor control program,
#Define EN 8//Step motor enable end, effective at low level
#Define X_ Dir 5//x-axis stepper motor direction control
#Define Y_ DIR 6//y-axis stepper motor direction control
#Define Z_ DIR 7//z-axis stepper motor direction control
#Define X_ STP 2//x-axis stepper control
#Define Y_ STP 3//y-axis step control
#Define Z_ STP 4//z-axis stepper control
