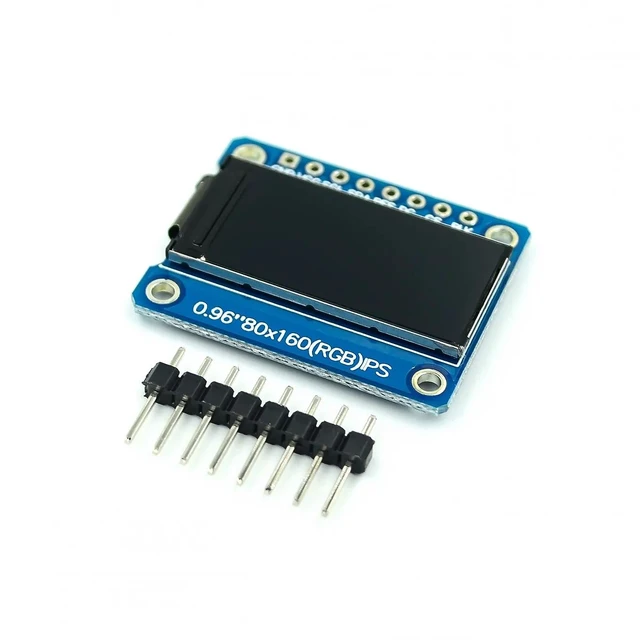

10pcs TFT Display 0.96 inch IPS 7P SPI HD 65K Full Color LCD Module ST7735 Drive IC 80*160 (Not OLED) Forarduino

1. Features
SIZE 0.96 inch
Display Mode Normally black IPS
Display Format Graphic 80RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 24 (W) *30 (H) * 2.8 +/- 0.1 (T) mm
Resolution 80RGB*160 Dots
LCD Active area 10.8 (W) * 21.7 (H)
Dot pitch 0.135 (H) x 0.1356 (V) mm
Viewing Direction All View
Operating Temperature -2070C
2.
Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
1. Features
SIZE 1.3 inch
Display Mode Normally black IPS
Display Format Graphic 240RGB*240 Dot-matrix
Input Data SPI interface
Drive IC ST7789VW
Dimensional outline 27.78 (W) * 39.22 (H) * 3.0 +/- 0.1 (T) mm
Resolution 240RGB*240 Dots
LCD Active area 23.4 (W) * 23.4 (H)
Dot pitch 0.0975 (H) x 0.0975 (V) mm
Viewing Direction All View
Operating Temperature -2070C
2.
Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 BLK Backlight control pin
