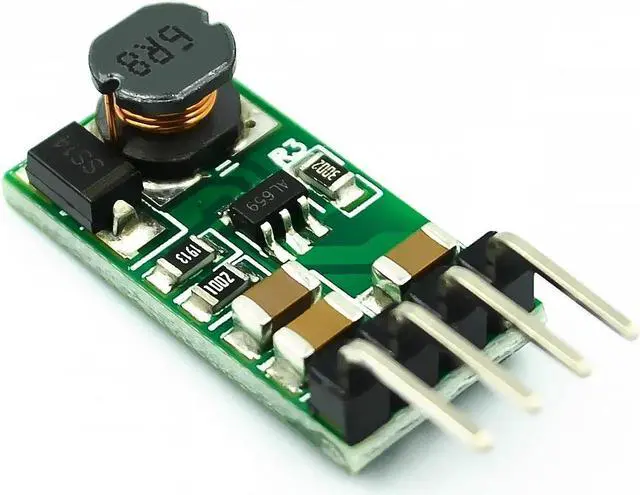

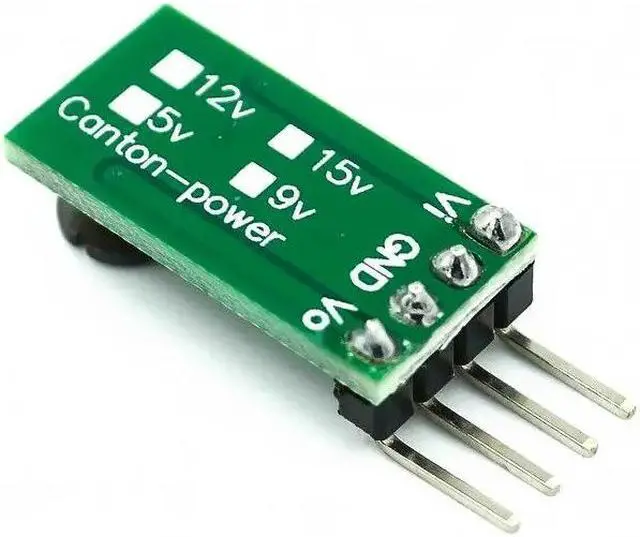

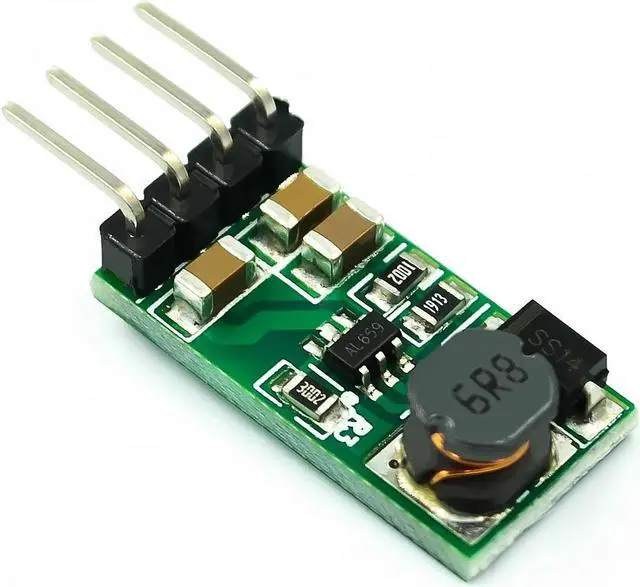

Mini DC-DC 3.3V 3.7V 4.5V 5V to 12V Step Up Boost Converter Module for Smart Home

Features:
Small size, convinent for carrying and storing.
Sufficient voltage and steady current.
Easy to operate and very safe.
Good in quality but inexpensive.
All the product will send after good package.
Widely-used, suitable for many kinds of electric appliances.

Specifications

:
Output 5V
Input voltage: 3-6V, output 12+- 0.6V
Maximum output current: 1.2A
Start voltage: 2.8V, output current: 50mA
Input: 3V 1A, output: 12V 220ma
Input: 3.3V 1A, output: 12V 250mA
Input: 3.7V 1A, output: 12V 280mA
Input: 4.5V 1A, output: 12V 340mA
Input: 5V 1A, output: 12V 370mA
Input: 6V 1A, output: 12V 450mA
Item size: 20.5 * 10.2 * 5.6 mm / 0.8 * 0.4 * 0.2 in
Package size: 20.5 * 10.2 * 5.6 mm / 0.8 * 0.4 * 0.2 in
Item weight: 1.4 g / 0.05 oz
Package weight: 5g / 0.18 oz
Notice:
1: Input voltage can not be greater than the maximum input range.
2: Output power can not be greater than the maximum load for a long time.
3: Input power must be greater than the output power, because the power consumption of the module itself.
